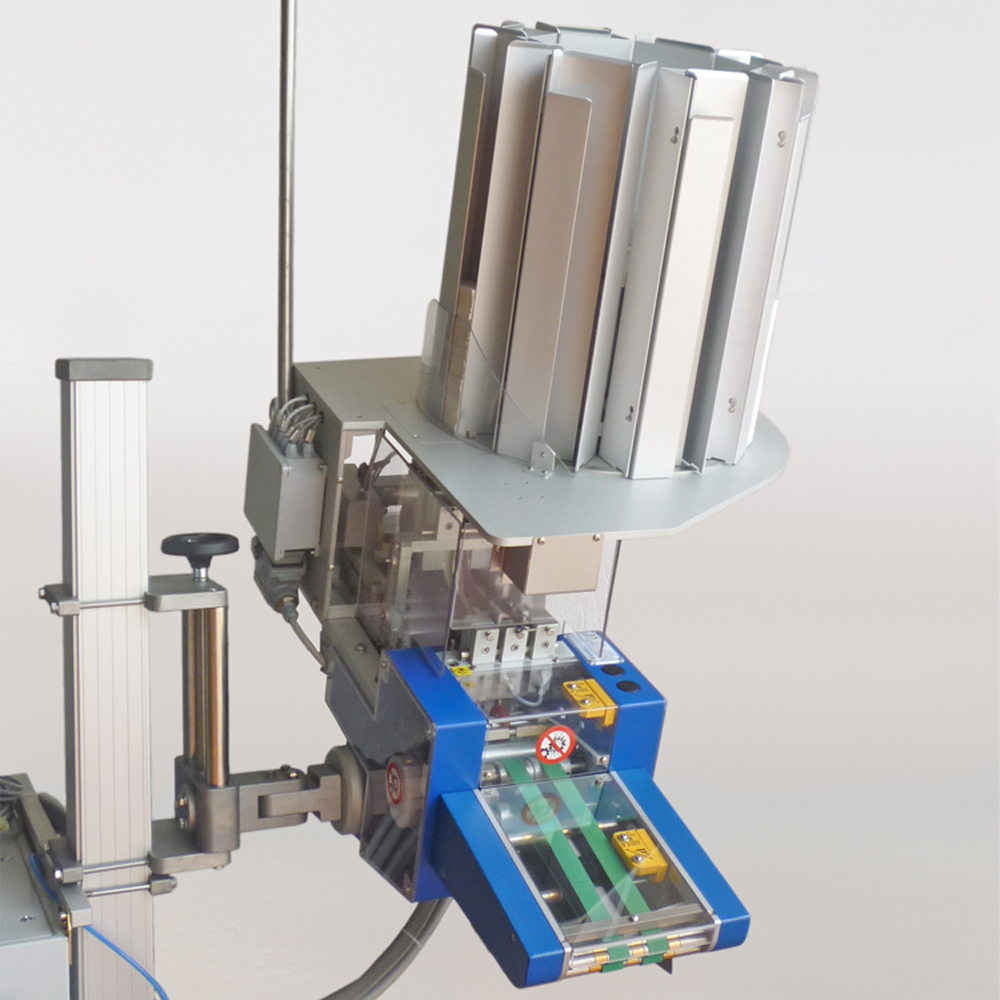

Etipack Whizzy MS — Multi-Stack Magazine Friction Feeder
The Etipack Whizzy MS (Multi-Stack Magazine) is the high-capacity variant of the Whizzy friction feeder, designed for production lines where continuous, uninterrupted feeding is a priority and frequent manual reloading is not practical.

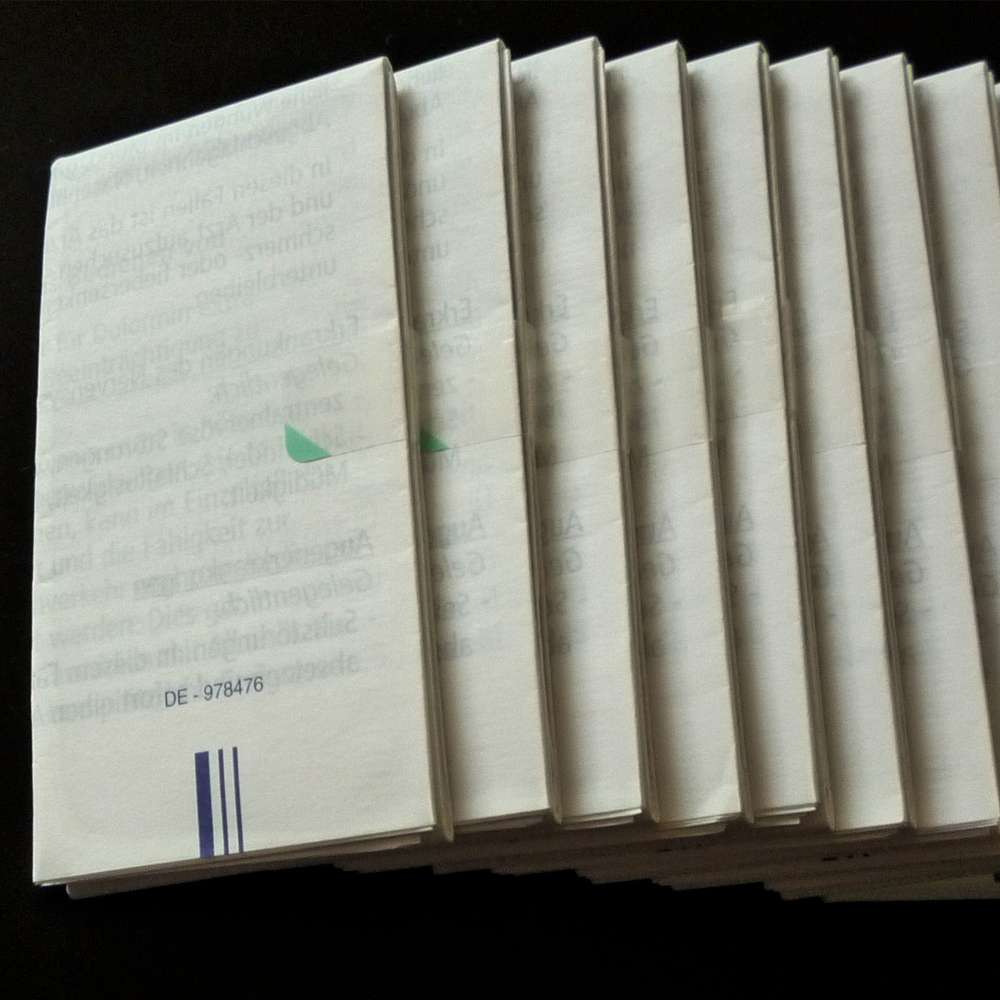

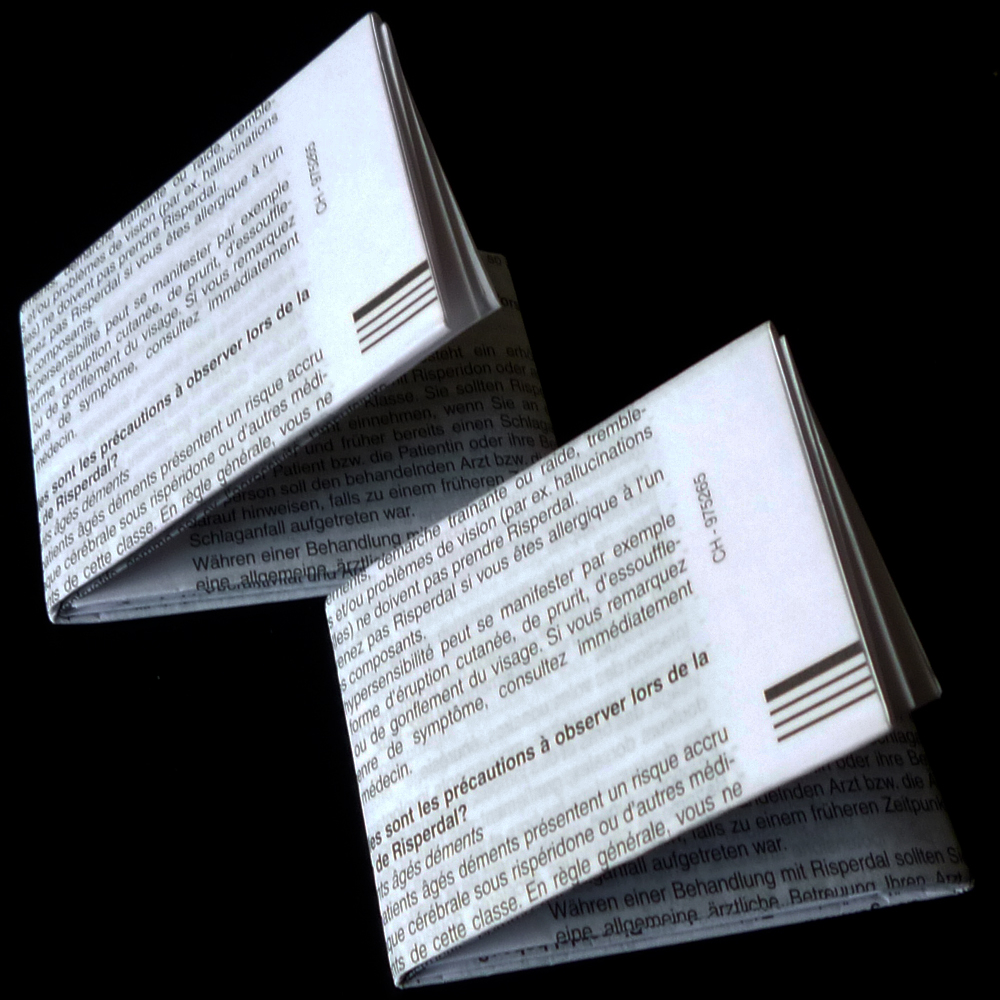

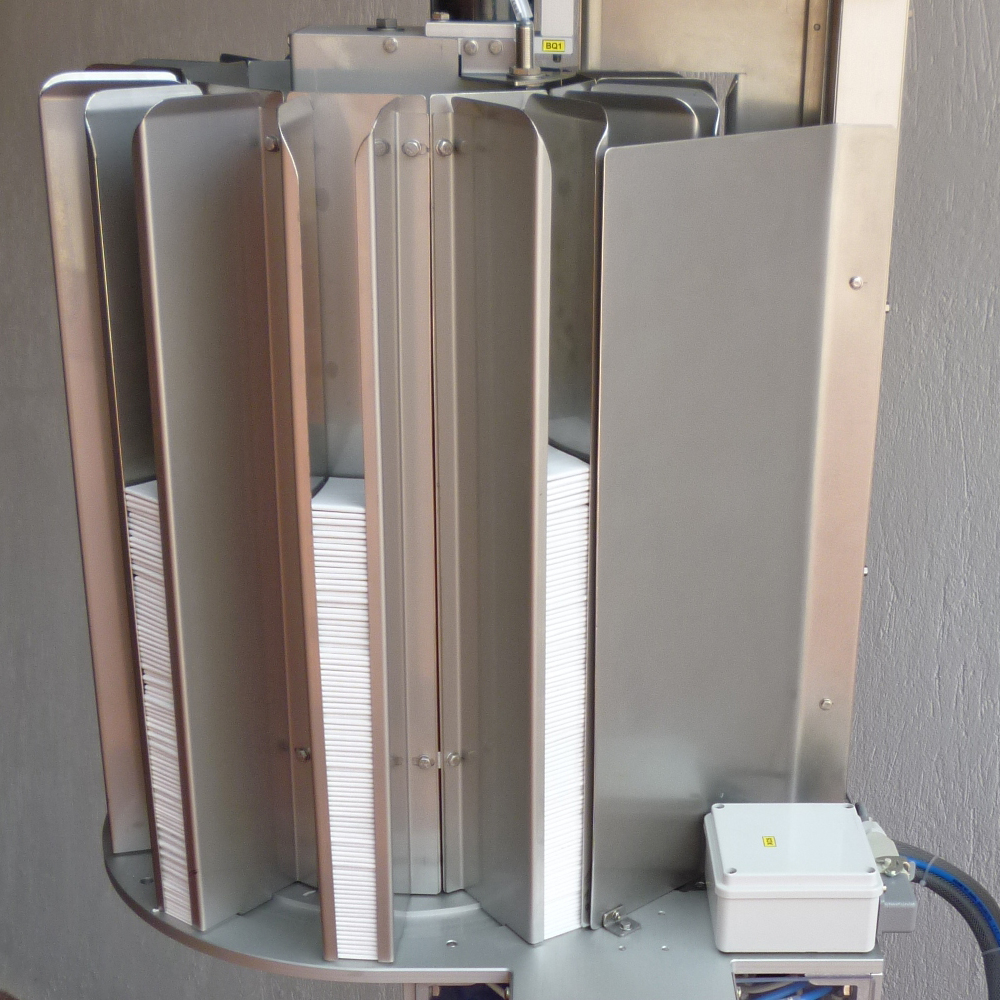

The multi-stack magazine design allows significantly greater product capacity than a standard single-stack feeder, reducing how often an operator needs to reload and maximising productive uptime on the line. Like the rest of the Whizzy range, the MS feeds a wide variety of flat products — coupons, inserts, sachets, cards and leaflets — with the precision and reliability the Whizzy series is known for. Stainless steel construction makes it suitable for food and pharmaceutical packaging environments.
Single product feeding machine
Rotary loading stack
Belt skimming system
Horizontal dispensing unit
Stop sensor
Separate control box (remote terminal up to 3 m) with integrated PLC
Separate control panel (remote up to 3 m)
Control on minimum load
Start/dispensing
Controls and alarms
Brushless motor
Base support structure
U-shaped support structure
Adjustable pre-stack with level control
Barcode reader on dispensing unit
Encoder
Programming keyboard for speed and counting
Control on dispensed product
| Dispensing speed | ≤ 100 m/min | ||
| Product sizes L | 50 - 100 mm | ||
| Product sizes W | 40 - 100 mm | ||
| Product thickness | 0,15÷6 mm | ||
| Product dispensing | Horizontally | ||
| Motor type | Brushless | ||
| Size L - W - H | 550x700x1130mm | ||
| C.B. dimensions L - W - H | 600x250x600mm | ||
| Power supply | 230 V, 50-60 Hz | ||
| Electrical input | 460 W | ||
| Electric protection | IP 54 |
