Batch Print and Apply Labellers: ALX 730 Series

Batch print and apply labellers use no change-parts & no compressed air!

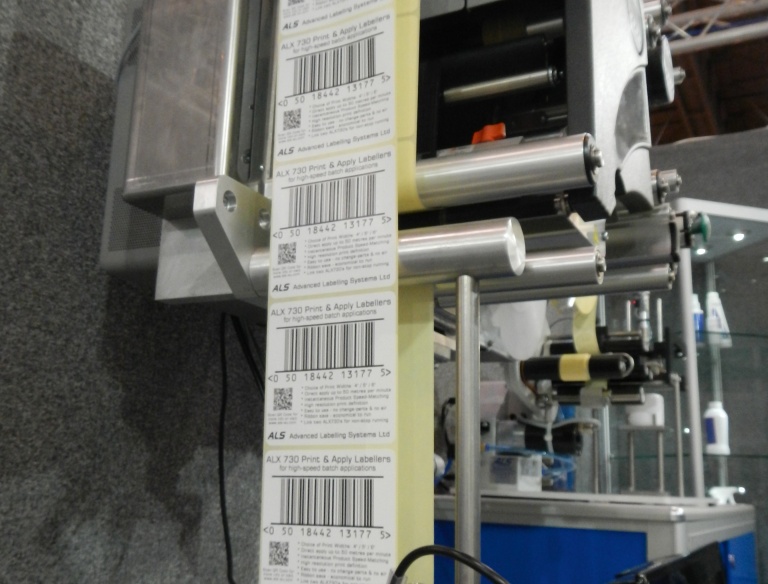

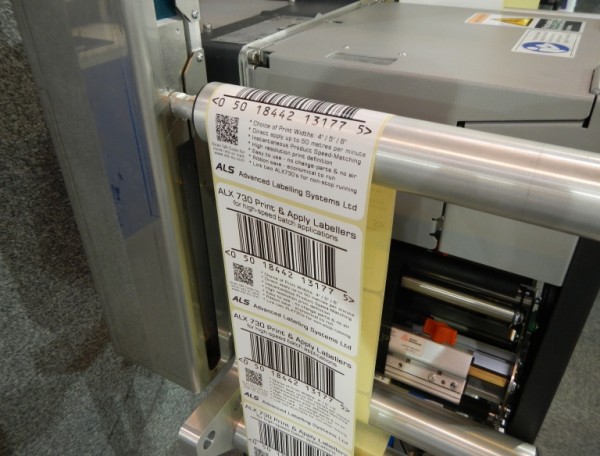

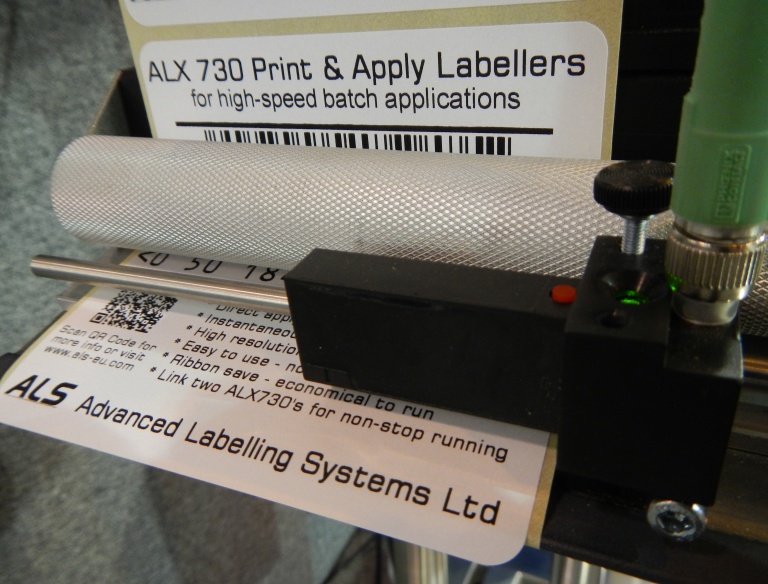

The ALX 730 series are high-speed, batch print and apply labellers that are perfect for direct apply (wipe-on) applications. Each machine in our ALX 730 range offers the most efficient labelling and coding combination available on the market, in one fully integrated package, printing labels with fantastic clarity and applying them with the utmost precision at speeds up to 50m/min.

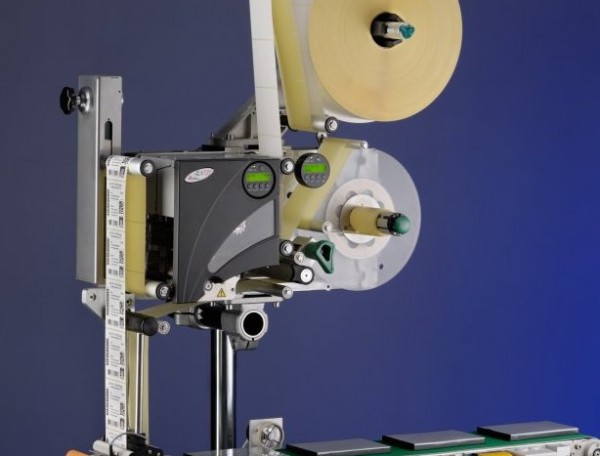

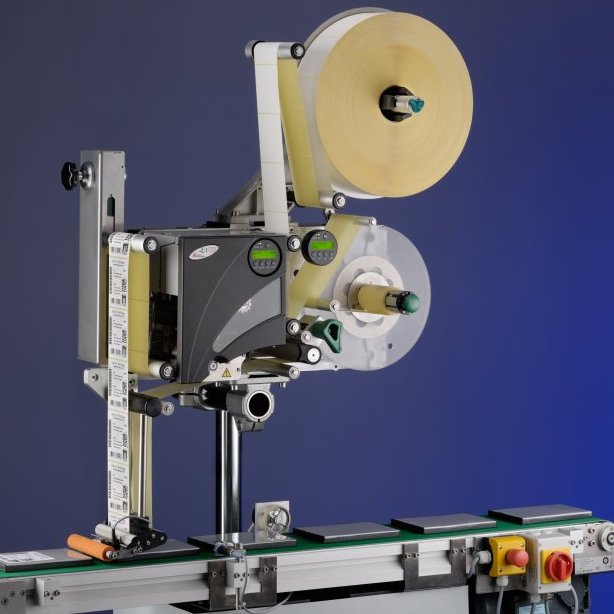

ALX 734 (4-inch),  ALX 735 (5-inch) and ALX 736 (6-inch)

The ALX 730 series are reliable high performance batch print and apply labellers that meet the needs of manufacturing, warehousing and logistics environments but also in specific sectors such as the pharmaceutical and food industries. The Near Edge print head provides outstanding definition and speed, making them suitable for most print and apply applications.

Key benefits are; high volume throughput, printing and applying up to 400 labels per minute with high accuracy and great reliability.  The ALX 730 models can be orientated to apply labels to the top, side, front and even the underside of products making them flexible for production line integration.

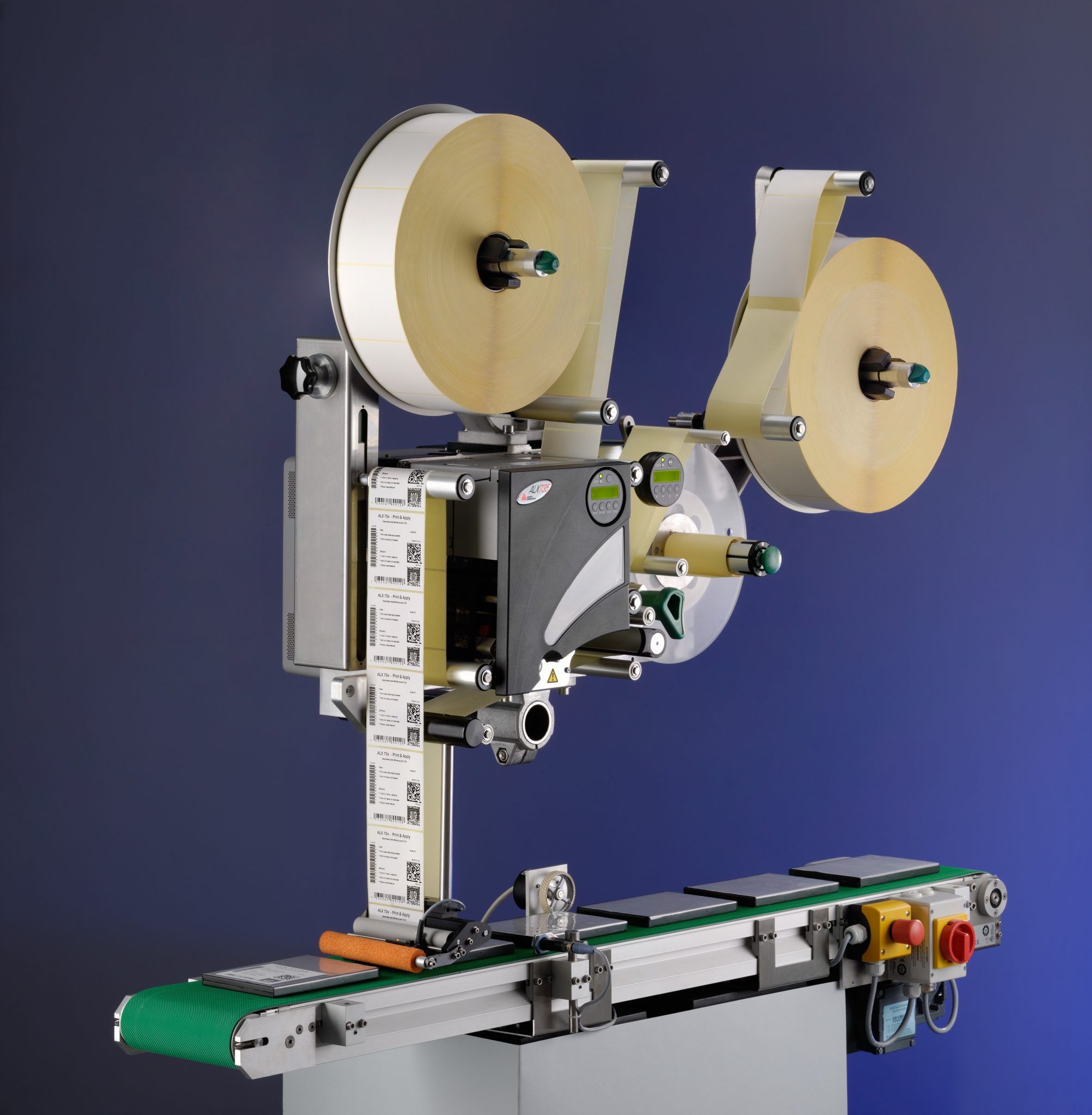

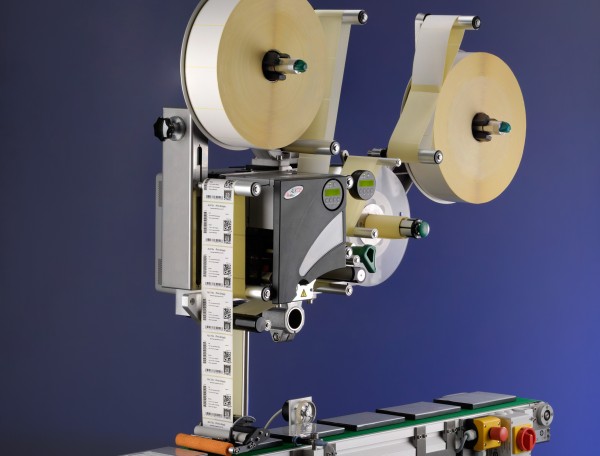

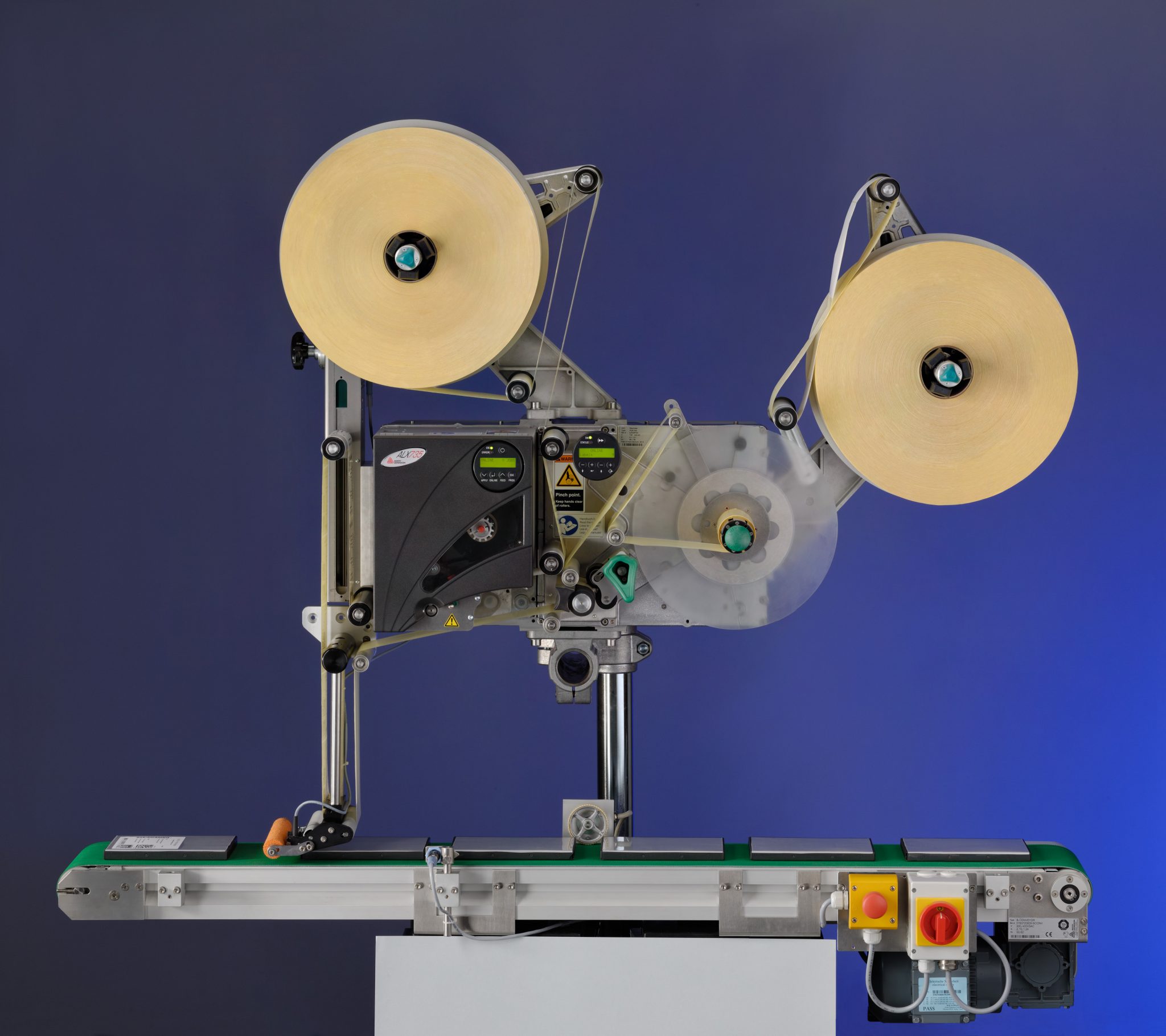

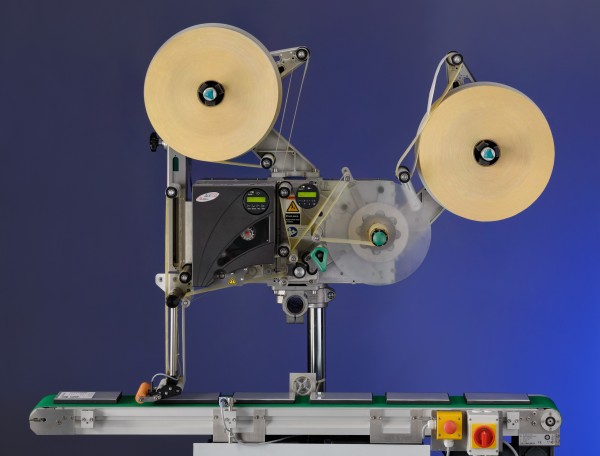

Sharing a similar modular design construction to the ALS 300 series labellers, the external label roll holder can be sited in numerous positions around the body of the machine for flexibility.  It will even accommodate a second roll holder to allow for quick splices on-the-fly.  Two roll holders are available; standard 300mm diameter and large 400mm diameter.  Both utilise a heavy-duty breaking mechanism operated by the sprung dancer arm, so that equal tension is maintained in the label web, from start to finish.

Reliable machines are only as good as the consumables you use with them and that’s why ALS can give a 100% guarantee, as we manufacture our own labels and supply high quality print ribbons, to ensure trouble-free operation.

GS1 Accredited

If you need help producing your EAN-13 product barcode labels, 2D codes or GS1-128 outer-case barcodes for shipping, then as ALS is an accredited GS1 Solution Provider, you know you are getting the best advice.

Technical specifications

Print width (up to)

106mm for ALX 734
127mm for ALX 735
160mm for ALX 736

Print speed (up to)

400mm/s for ALX 734
300mm/s for ALX 735/6

Dispensing speed (up to)

Up to 50m/min for all models

Printing technology

Thermal transfer/direct thermal

Print head

300 dpi near edge or print head

Ribbon save

Yes: Automatic head-lift

Ribbon length

Up to 1,000m

Graphic formats

BMP, PCW, JPG, TIF, GIF, Easy Plug Logos

Label output

Up to 400 labels/min

Maximum label width

134mm for ALX 734 & ALX 735
185mm for ALX 736

Maximum label length

225mm – up to 440mm after elongation dispense edge fixture
