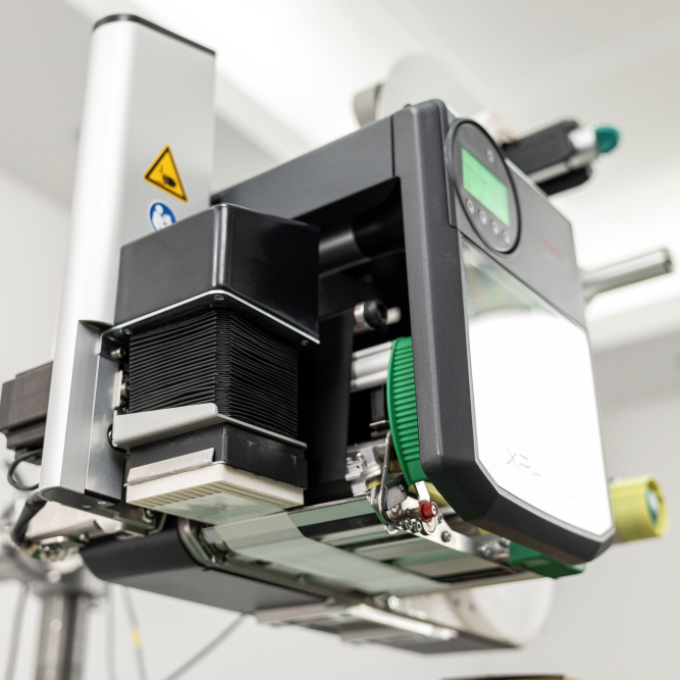

Label Applicator: Light-Touch Motorised (LTMA)

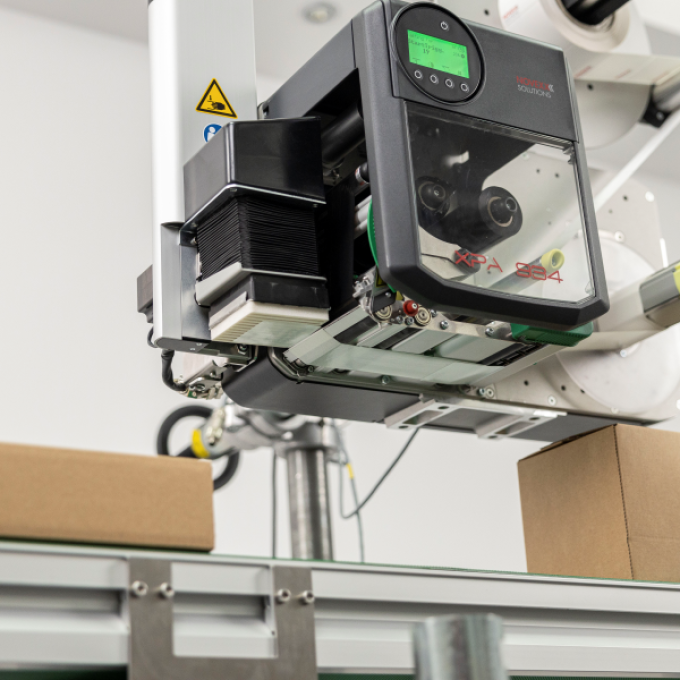

Airless, electric motor label applicator that uses no compressed air.

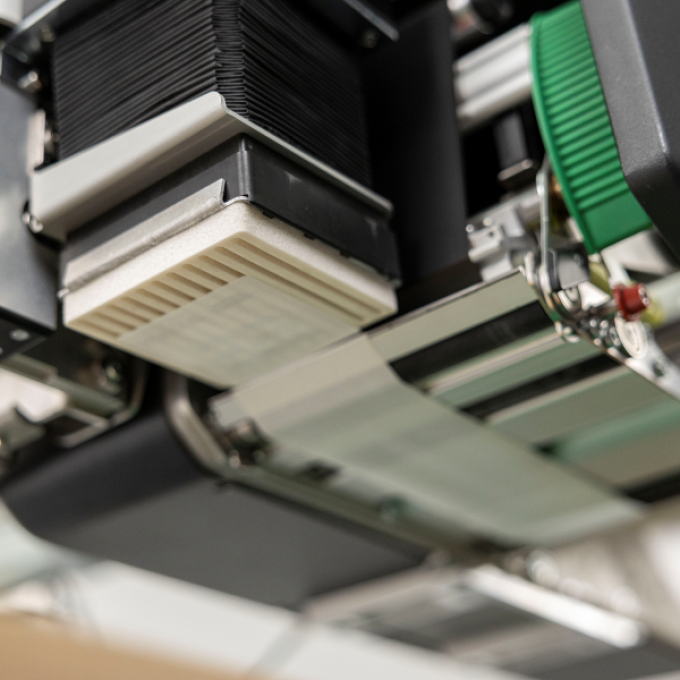

The LTMA applicator is a special tamp applicator that applies labels electrically rather than using compressed air.

Thanks to its sensor-controlled application, the LTMA is able to label different product heights in one process. It extends its telescopic arm up to 400 mm and stops as soon as it encounters resistance. In this way, this applicator can mark even the most sensitive and delicate surfaces with a "light touch".

  • Application of labels on sensitive products

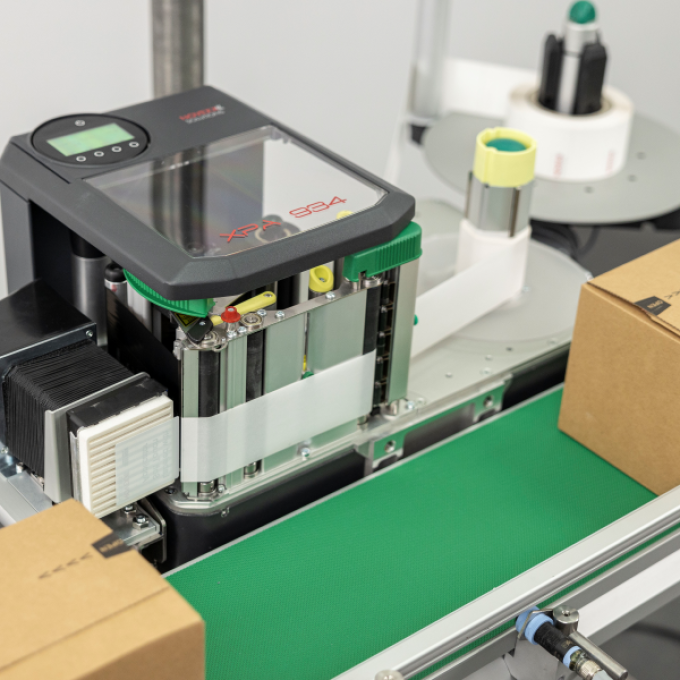

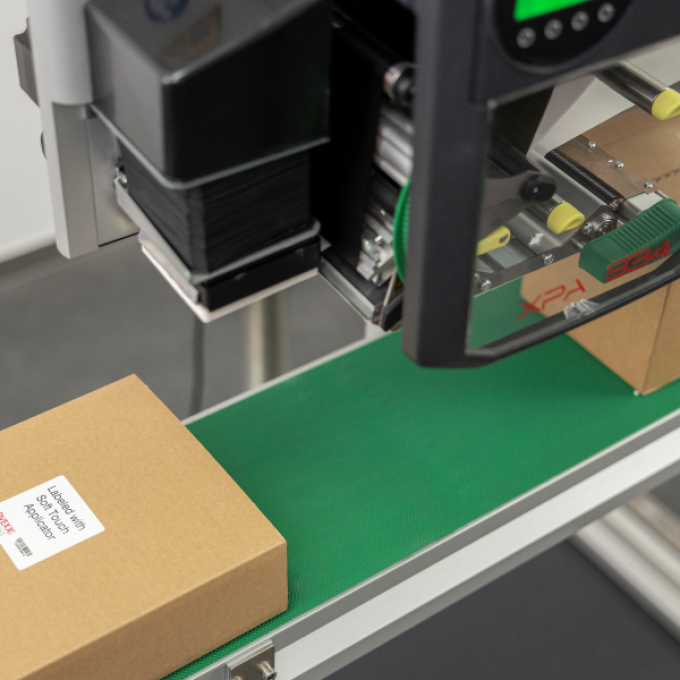

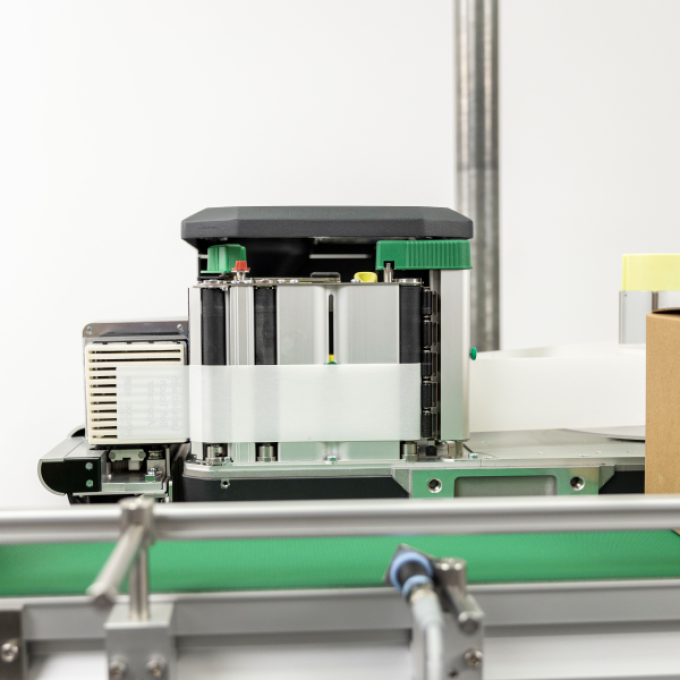

  • For top or side apply
  • Variable height product sensor
  • Stroke length up to 400 mm
  • Plug and play integration with:

            - XPA 9xx Print & Apply labellers

            - XLP 51x Desktop Label Printers

            - XLP 60x Desktop Label Printers

  • Industrial design for reliable operation
  • Applies label to moving and stationary products
  • Low maintenance, less wear parts
  • No compressed-air = low running costs

Specification Novexx LTMA
Label material Self-adhesive labels
Label width 30–80mm
Label length 30–80mm
Label position Top or side of product
Product movement Moving or stationary products
Application method Light-touch, sensor-controlled motorised telescopic arm
Stroke length Up to 400mm
Capacity Up to 50 labels/min
Application accuracy ±1mm
Compressed air requirement None – fully electric operation
Compatible with Novexx XPA 9xx print & apply labellers, XLP 51x and XLP 60x label printers

Supplied, installed and supported in the UK by Advanced Labelling Systems, the official UK partner of Novexx Solutions — with full training and ongoing service, backed by the Possehl Group.

Not sure if this is right for your labelling requirements?  Then talk to us.
