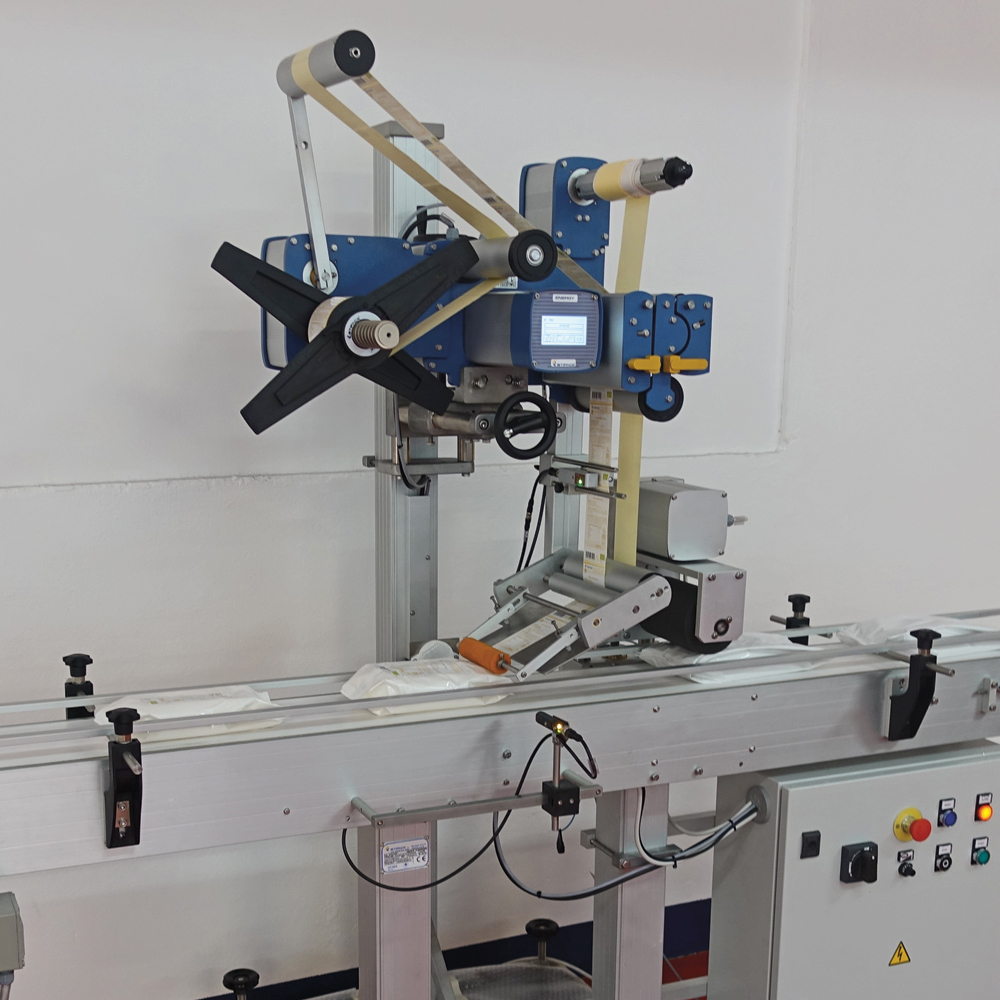

The Etipack System 2 is an automatic top-labelling system that applies a label to the upper face of a product as it travels along an integrated conveyor. It's designed for stable items — thermoformed trays, jars, bottles, boxes and rigid containers in plastic, glass or metal — and runs as a standalone line or inline with filling, cartoning or thermoforming equipment.
System 2 labels from above at up to 6,000 products per hour (at a 150mm product step) and dispensing speeds up to 15m/min, handling products up to 200mm tall and labels up to 98mm wide and 250mm long. Typical uses include batch- and date-coding the lids of food trays, the tops of jars and cartons, and the upper face of cosmetic and chemical packs.
Like every Etipack system, System 2 is modular: alarms, controls and additional applicators can be added to build a machine around your exact requirements. A wide range of print units integrates directly — hot-foil, thermal-transfer and inkjet — from Etipack and leading coders including ICE/Clearmark, Videojet, Markem, EIDOS and Wolke, for inline codes, dates, barcodes and variable data. For top labelling of pharmaceutical cartons, see the Etipack Pharma range (Pharma Seal Top and System 9 Pharma).
System 2 labels the top face only and suits taller, stable products. If you need to label the underside, or both faces in one pass, then the Etipack System 4 Top & Bottom Labelling machine uses a split-belt conveyor to do exactly that.
- Coated steel chassis with stainless-steel panels
- Integrated product conveyor
- Top labelling head
- Electrical panel with dedicated control electronics
- Line-stop contacts for alarm conditions
- Print units (thermal inkjet, thermal-transfer or hot-foil)
- Variable-speed control
- Production controls and alarms
| Production speed | ≤ 6,000pcs/h (at 150mm product step) |
|---|---|
| Dispensing speed | ≤ 15m/min |
| Product size (w × step) | 20×20mm to 150×220mm |
| Product height | 5–200mm |
| Label width | 8–98mm |
| Label length | 8–250mm |
| Outside reel Ø | ≤ 280mm |
| Inside reel Ø | 40–75mm |
| Footprint (L × W × H) | 2000 × 948 × 1908mm |
| Power supply | 230V, 50/60Hz |
| Electrical input | 600W |
| Compressed air | 6bar (with print unit) |
Supplied exclusively by Advanced Labelling Systems Ltd, Etipack's official UK & Ireland partner, with full on-site installation, training and ongoing support - backed by the Possehl Group.
Not sure if the System 2 suits your line? We will conduct a full site survey and advise you on the right configuration for your products, line speed and coding requirements.
