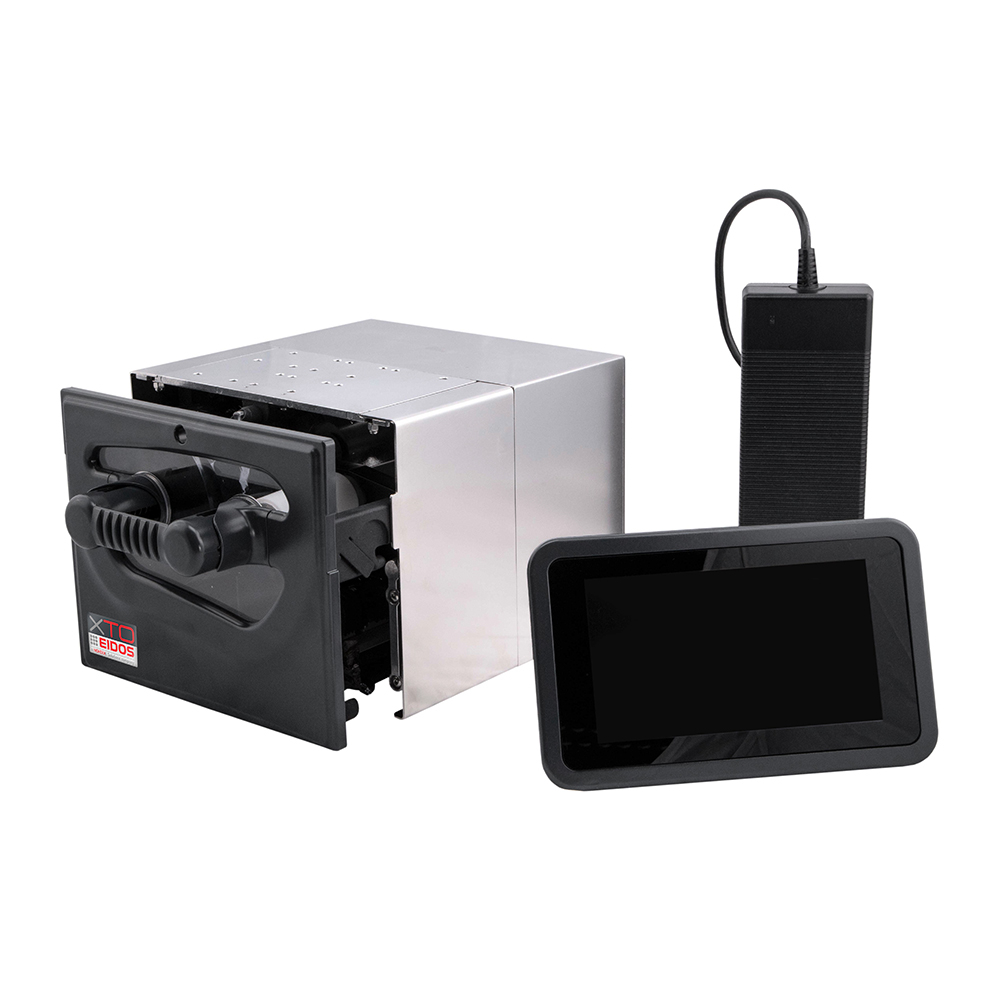

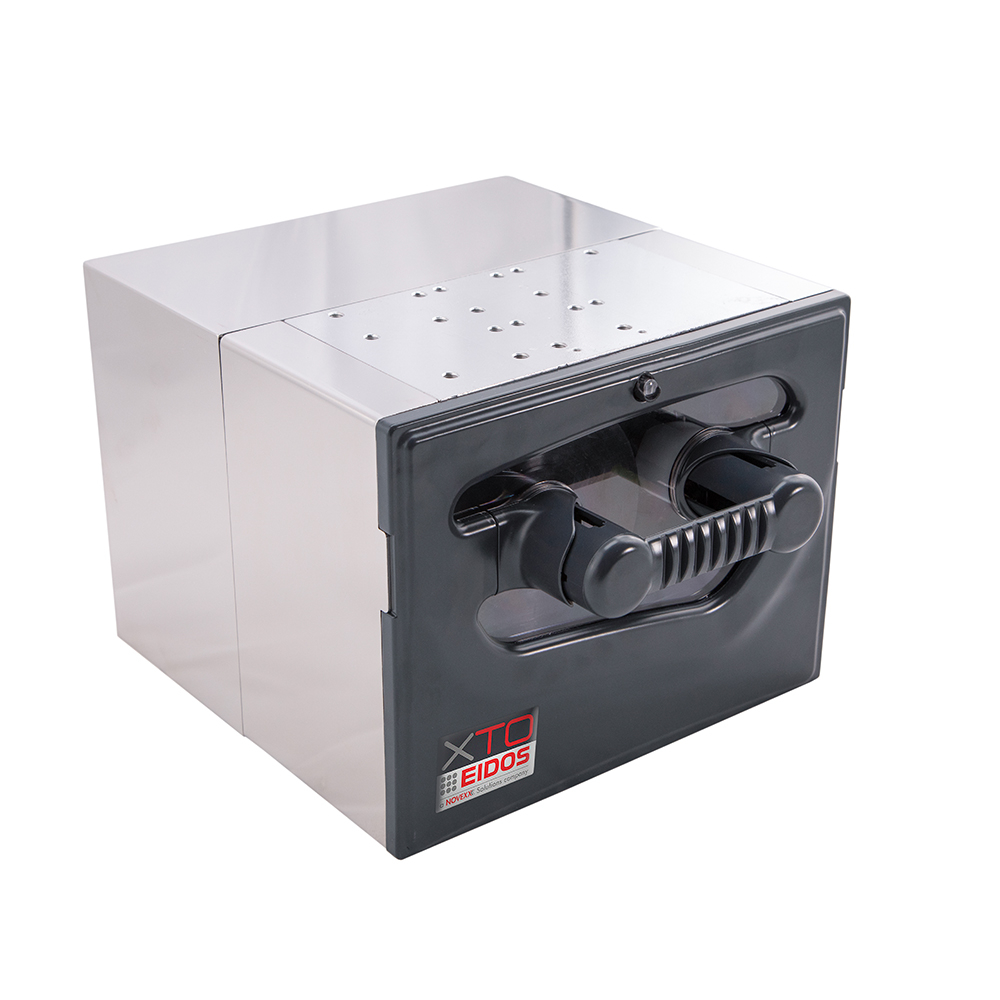

EIDOS XTO — Thermal Transfer Over-printers / Coders

A range of over-printers that code variable data — expiry dates, batch / lot numbers, barcodes, 2D codes and logos — directly onto flexible film, labels and cartons.

A modular, motor-driven design that needs no compressed air, keeping integration straightforward and running costs low, while tool-free ribbon and printhead changes hold downtime to a minimum. Built to a standard footprint, the XTO drops neatly into most existing packaging machines and production lines and fits onto most label applicators, where on-demand label coding is required.

Supplied, installed and supported in the UK by Advanced Labelling Systems, the official UK partner of EIDOS — with full training and ongoing service, backed by the Possehl Group.

Print Modes

Every XTO 2" can run in either intermittent or continuous mode, set in software at installation with no change of hardware:

  • Intermittent Mode - prints onto stationary film or labels — ideal for tray-sealers, thermoformers and intermittent baggers.
  • Continuous Mode - prints onto film or labels on the move — suited to vertical and horizontal flow-wrappers and VFFS/HFFS lines.

In intermittent mode the standard print area is 53 x 100mm — around 30% larger than the typical TTO on the market — at 300dpi resolution.

Request a Call-Back

Model Variants

XTO 2 — the core 53mm (2″) over-printer, available in intermittent or continuous mode, with longer-stroke intermittent versions at 200mm, 400mm and 600mm for larger print areas or multi-track coding.

XTO 22i — a twin 53mm printhead version for intermittent strokes up to 900mm, ideal for multi-lane packs and deep print areas in food, pharmaceutical, dairy and personal care lines.

XTO XL — an interchangeable-printhead model using the Magnetic Quick head X-Change, switching between 4″, 5″ and 6″ heads (107mm, 128mm and 160mm print widths) with intermittent strokes up to 600mm.

  • Best Price-v-Performance — one of the strongest value propositions of any TTO system on the market.
  • Maximum Uptime — fast, ergonomic ribbon changes and a tool-free printhead swap in seconds.
  • Lower Waste — intelligent ribbon-save feeds only the ribbon each print needs, cutting consumable cost and the frequency of changes.
  • Easy Integration — a modular concept and standard footprint let the XTO drop into existing machinery without redesign.
  • Energy Efficient — a motor-driven printhead removes the need for compressed air, lowering running costs and simplifying maintenance.
  • Smart Printhead — a secure chip in each printhead logs running distance, hours and dotline status to support planned maintenance

We will help you find the right XTO configuration for your line — and supply the matching Novexx/EIDOS ribbons from UK stock.

Request a Quote

Scroll sideways to compare all models →
EIDOS XTO range – model comparison
Single head Longer stroke Double head
Model XTO 2 ie XTO XL ie XTO 2 ce XTO XL ce XTO 2 i.nn XTO XL i.nn XTO 22 i.nn
Print mode Intermittent Intermittent Continuous Continuous Intermittent Intermittent Intermittent
Print width 53mm 107 / 128 / 160mm 53mm 107 / 128 / 160mm 53mm 107 / 128 / 160mm 2 × 53mm
Print length 100mm 100mm up to 990mm up to 990mm 200 / 400 / 600mm 200 / 400 / 600mm 400 / 600 / 900mm
Max speed * 300mm/s up to 800mm/s 300mm/s up to 600mm/s 100–500mm/s up to 700mm/s 100–500mm/s up to 500mm/s 300mm/s up to 800mm/s 300mm/s up to 700mm/s 300mm/s up to 800mm/s
Ribbon length 1200m 1200m 1200m 600m 1200m 1200m 1200m
DimensionsW × H × D 225×178×227mm 225×178×337mm 225×178×228mm 225×178×337mm 333.5×178×227mm541×178×227mm
736×178×227mm		 333.5×178×337mm541×178×337mm
736×178×337mm		 541×178×227mm736×178×227mm
1036×178×227mm

* Speeds shown are within the safe operating area; the higher figure requires a feasibility check. Longer-stroke models are denoted i.nn, where nn is the print length (e.g. .40 = 400mm).

Resolution 300dpi (12 dots/mm)

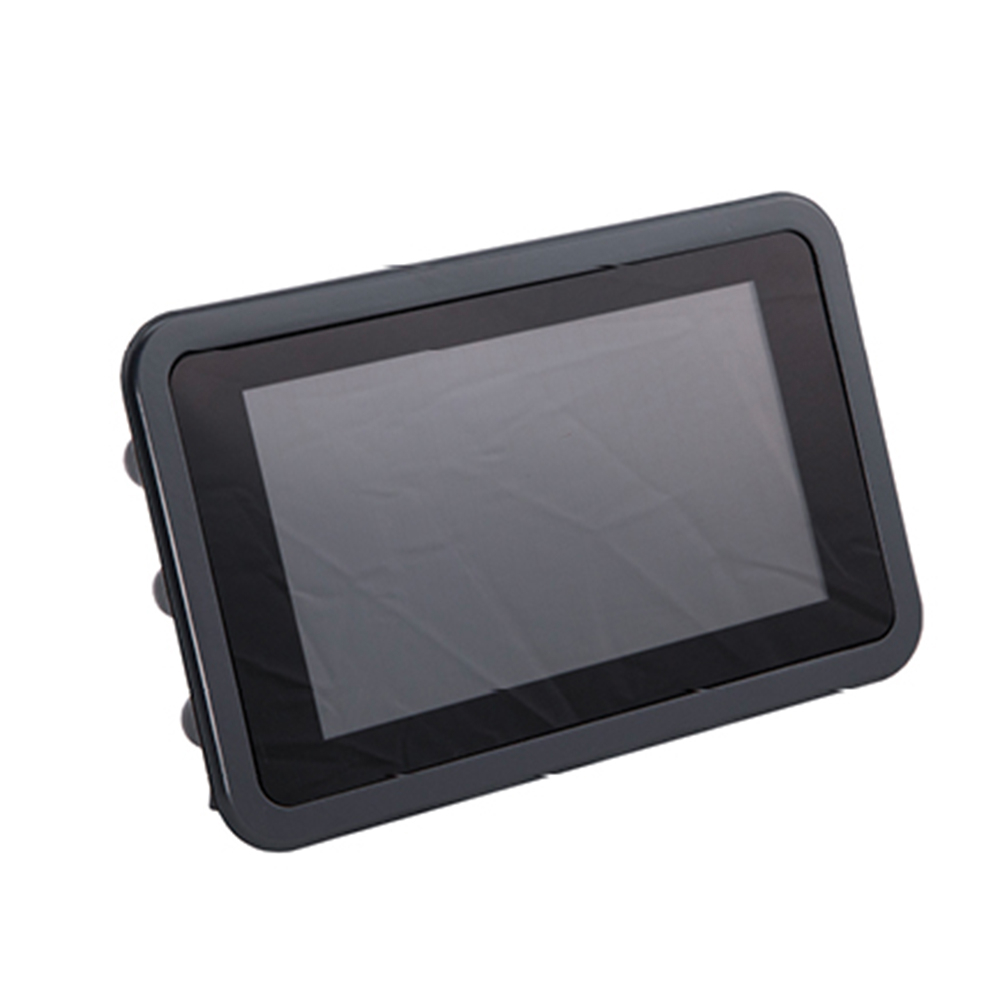

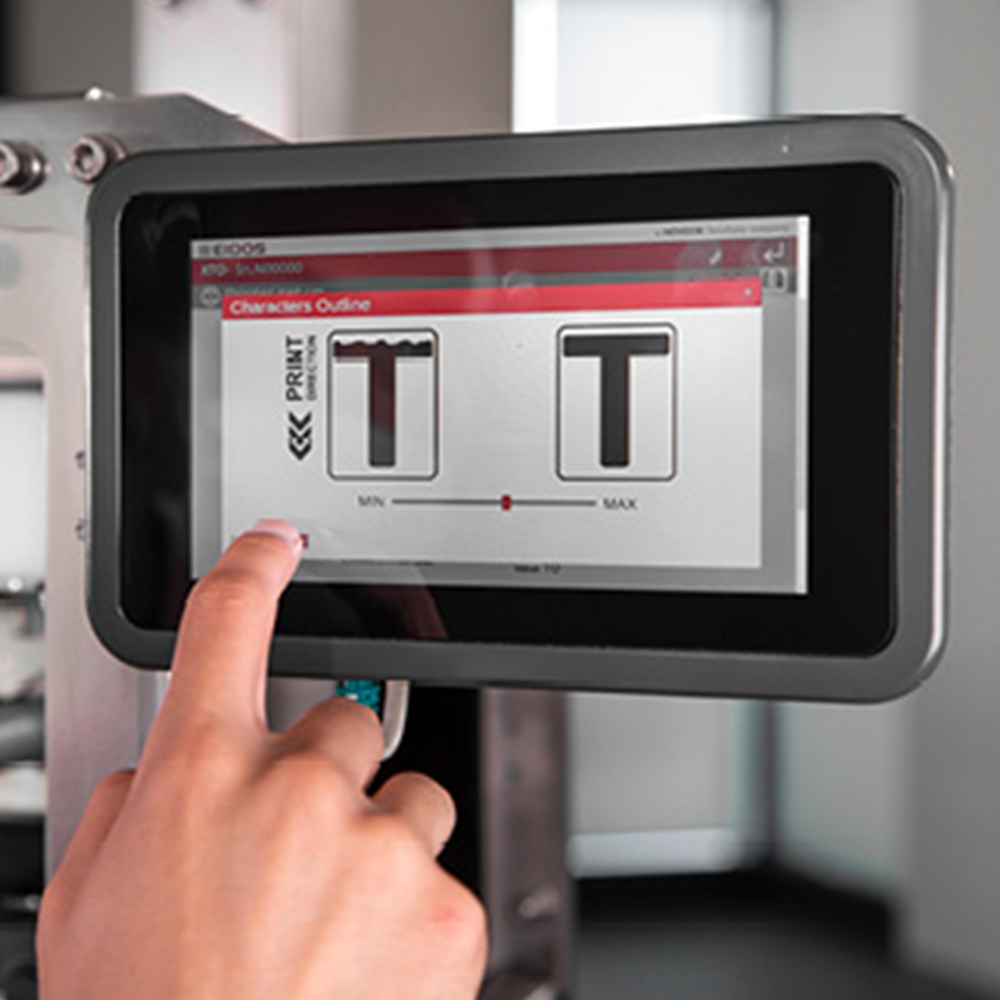

Controller / HMI 7″ full-colour capacitive touchscreen, powered over Ethernet. WYSIWYG layout preview, multilingual interface, on-screen diagnostics and settings. Controller 215×133×33mm; 1.5m cable to printer.
Ribbon Up to 1200m on a 1″ plastic core; roll outer diameter max 110mm.
Print data 1D & 2D barcodes (DataMatrix, QR, DataBar, PDF417); logos (BMP, JPG, TIFF, PNG, GIF, PCX); date codes, serial numbers and production codes.
Interfaces Ethernet 10/100; 2× USB 2.0 host; RS-232 (9-pin, 115200 baud); 25-way D-sub I/O to the packaging machine.
Power supply 85–265V, 50/60Hz.
Operating environment 5–40°C; 10–60% RH, non-condensing.
