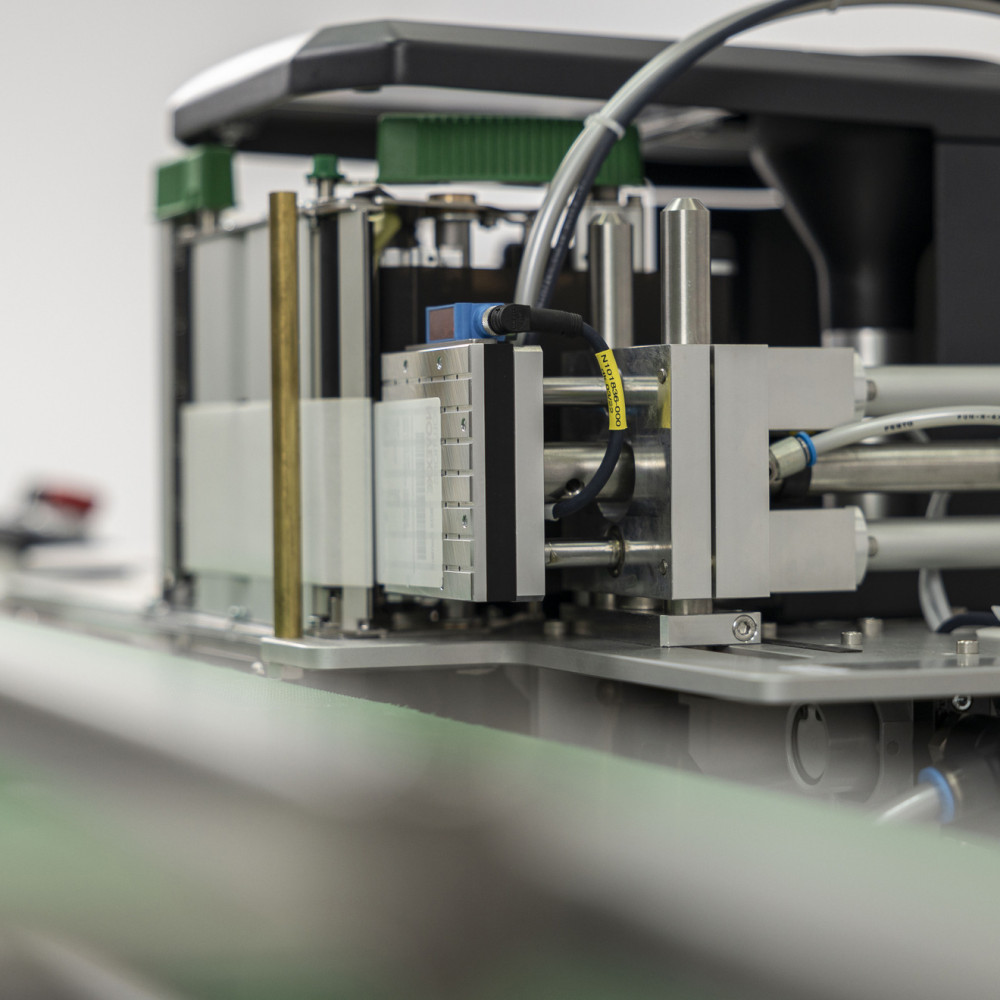

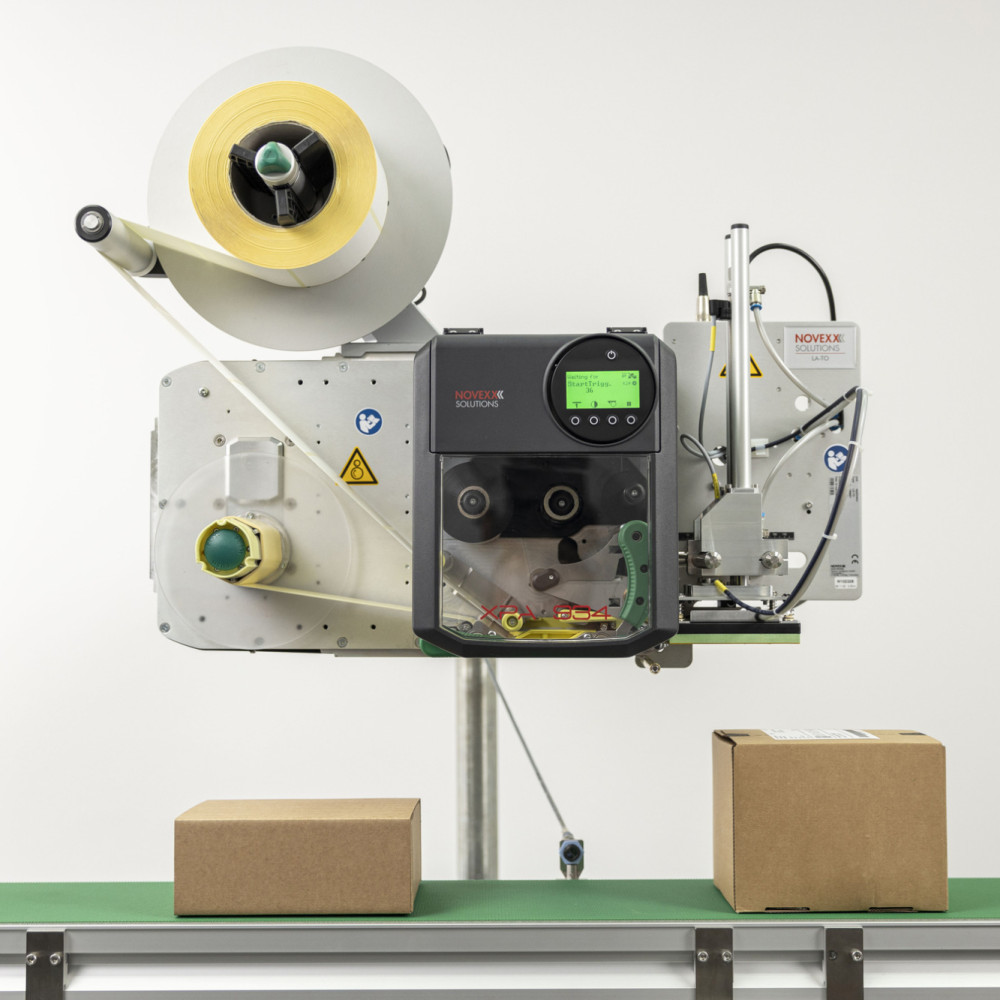

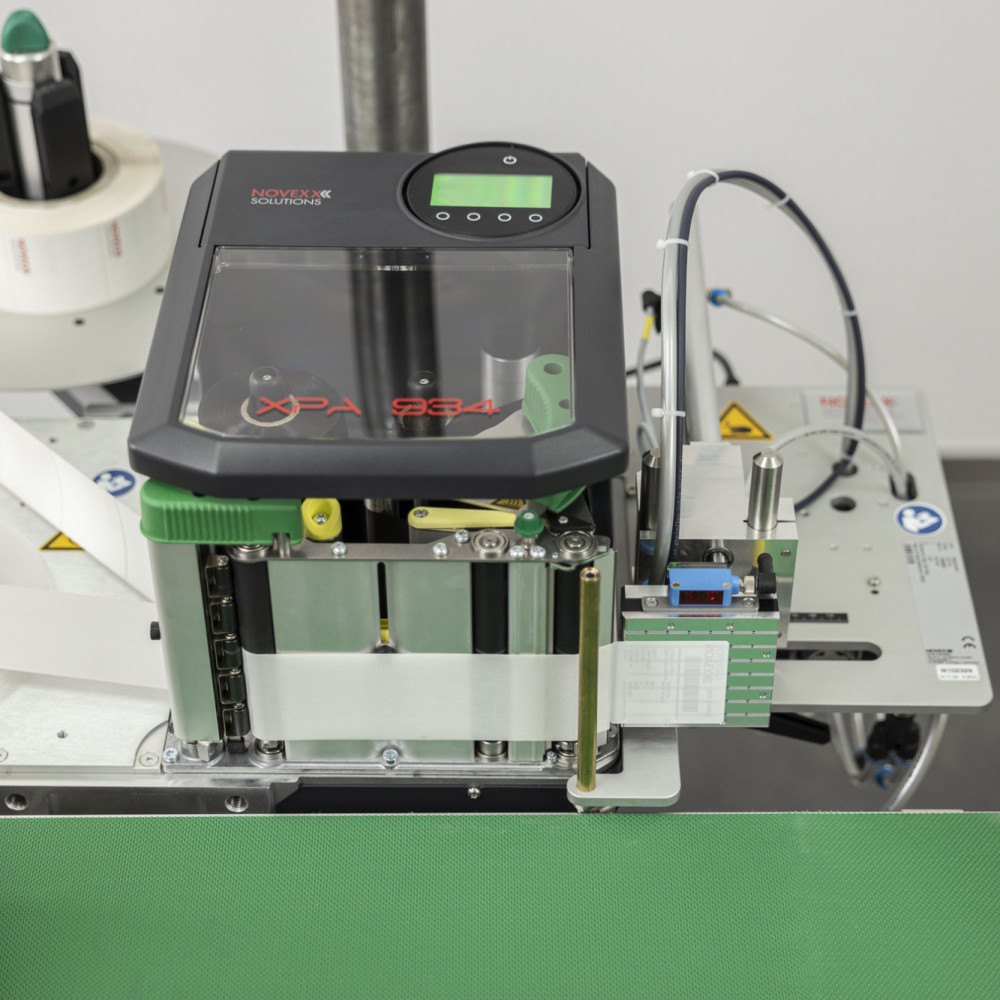

Label Applicator: Touch-On (LA-TO)

The Touch-On applicator module (also known as a “tamp” applicator) can reliably and accurately apply labels to moving or stationary products, whilst being a low maintenance device.

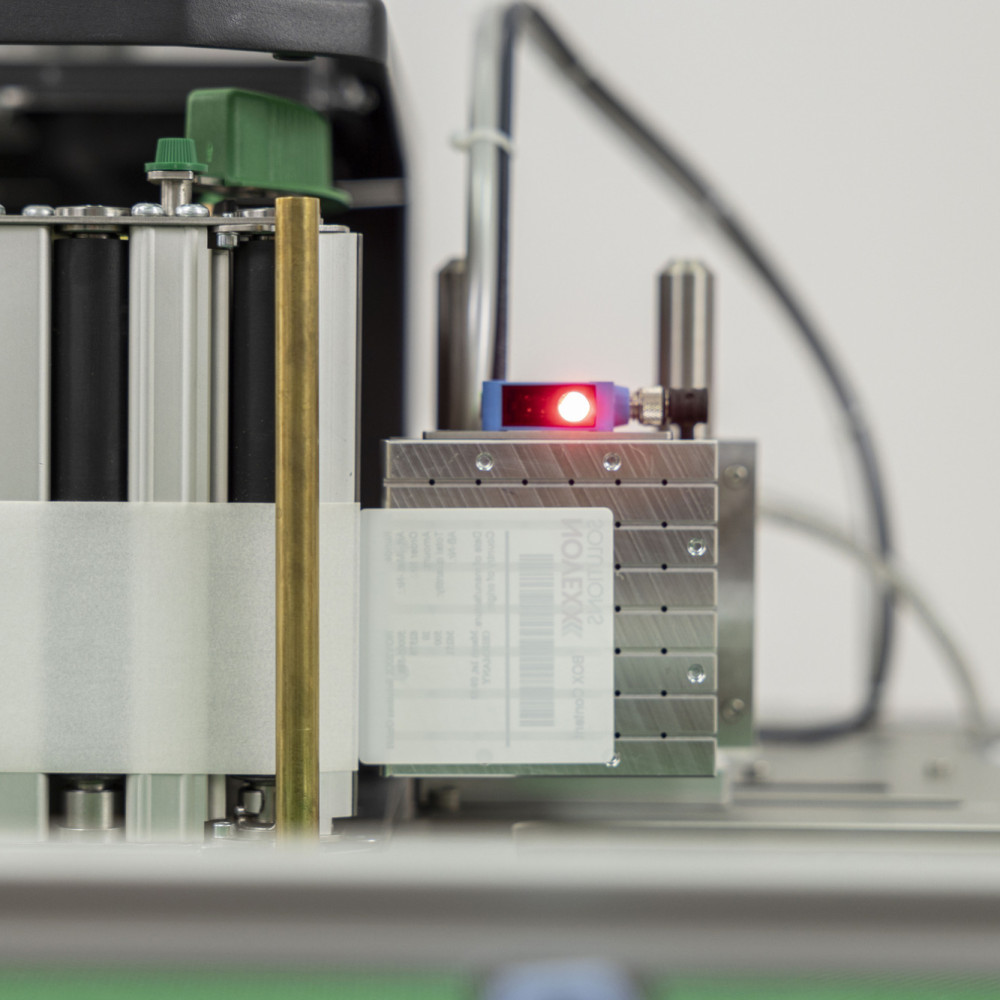

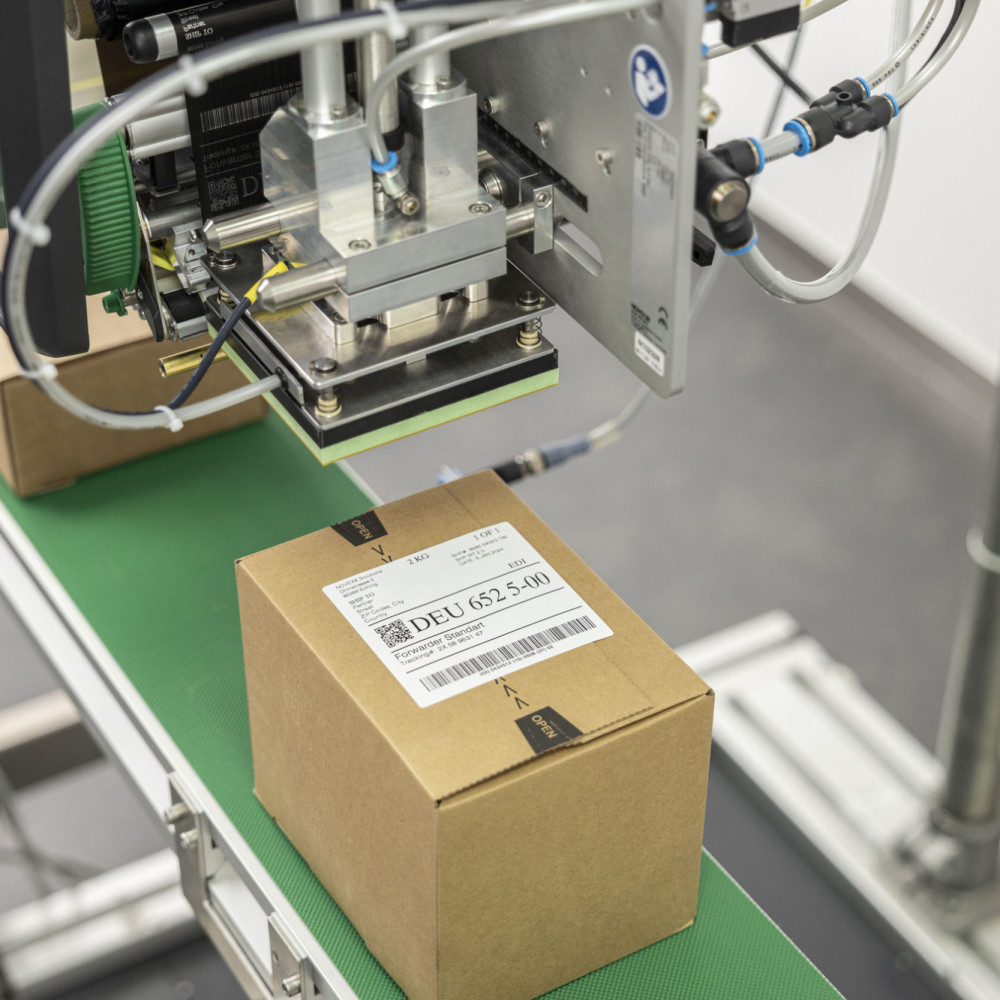

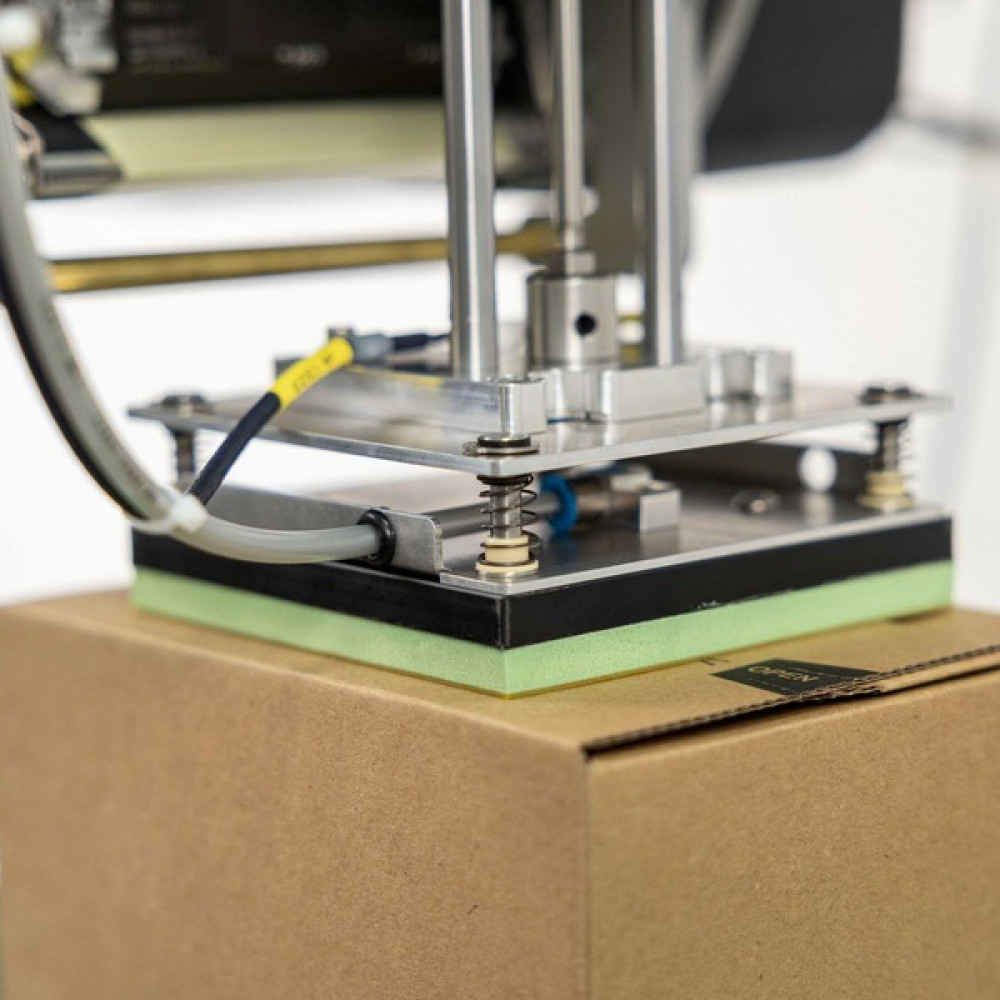

Labels are dispensed onto the vacuum pad and after a product signal is activated, the pad extends to apply the label to the surface of the product

Variants:

LA-TO-BO  |   Applicator with stroke & blow-on function

  • Suitable for labeling sensitive items with uneven surfaces and/or variable heights
  • Contactless application: Applicator moves to the product after which the label is blown to the product in the final step
  • Easy change of label pads to apply different label sizes
  • Stroke length up to 380 mm

LA-TO-TD  |  Applicator with pressure sensor for variable heights

  • Ideal for products with variable heights
  • Applicator returns as soon as the applicator pad encounters resistance
  • Easy change of label pads to apply different label sizes
  • Stroke length up to 380mm

Features

Features:

  • Plug and play integration with:

  • High Output for top, side or bottom apply

  • Easy change of label pads for different label sizes

  • Industrial design for reliable operation

  • Applies label to moving and stationary products

  • Low maintenance, less wear parts

Technical Specification

Material specifications

  • Label Material: Self-adhesive material (paper, film*)

  • Material width: 30 - 125 mm

  • Material length: 30 - 125 mm

  • Label pads: 80 x 80 mm, 125 x 125 mm

Apply Specifications

  • Stroke length: 180 mm (nett) with end and home switch

  • Apply tolerance: +/- 1 mm

  • Apply angle: 90°

  • Product speed at apply: Up to 15 m/min

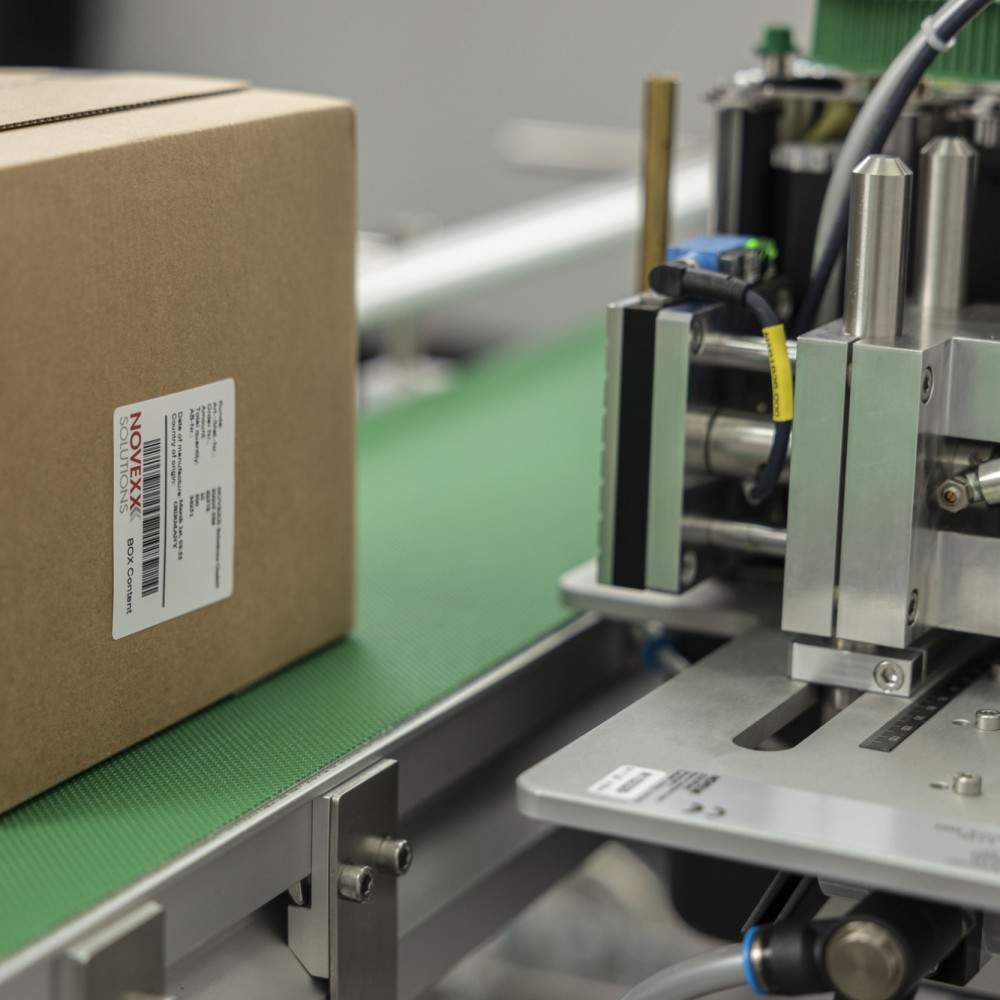

  • Apply position: Top, side or bottom of product

  • Air stream: Vacuum injector
