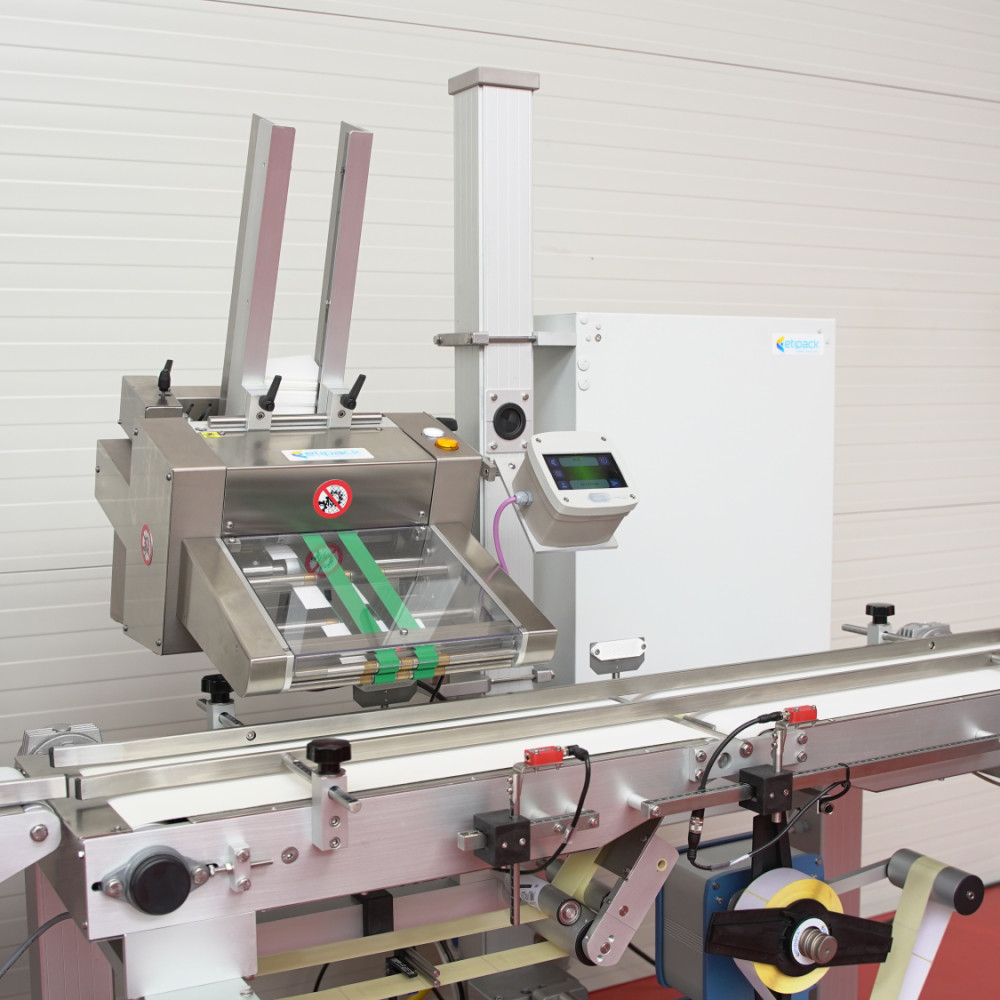

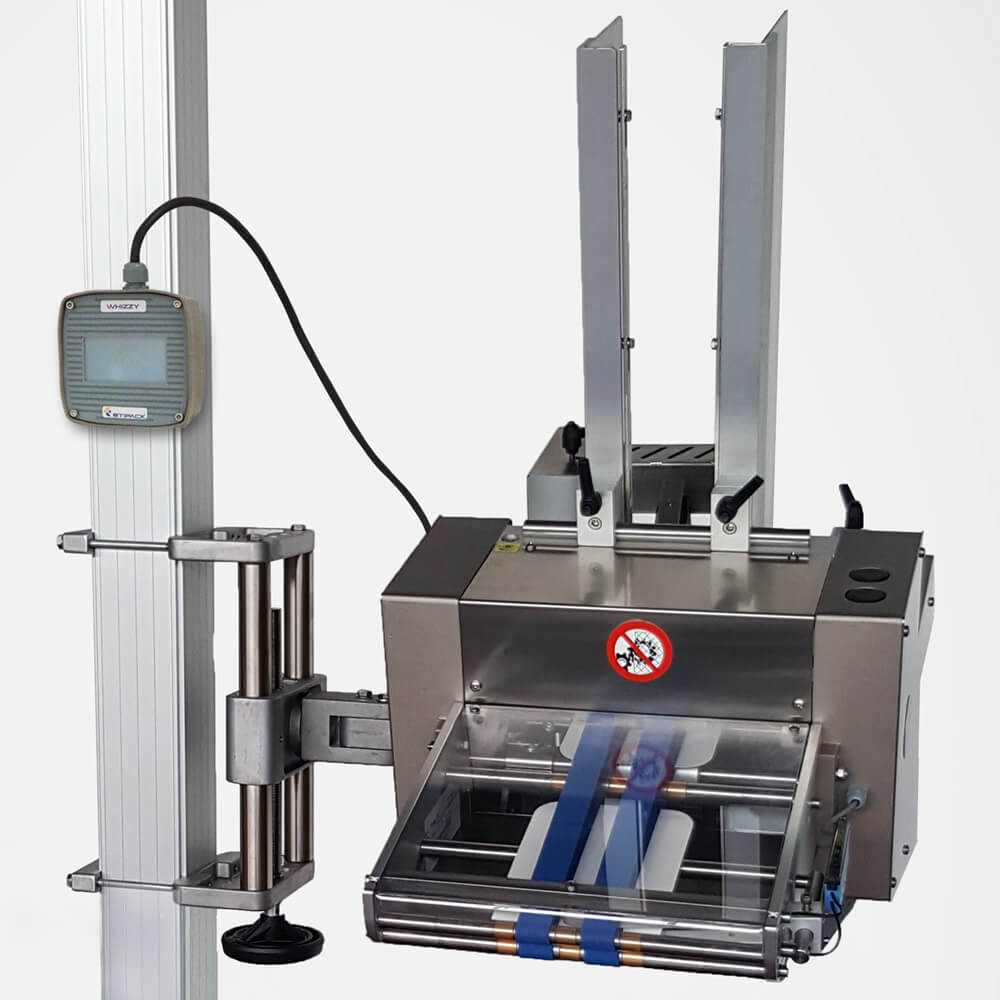

Etipack Whizzy SM — Stepper Motor Friction Feeder
The Etipack Whizzy SM (Stepper Motor) is the most accessible model in the Whizzy friction feeder family — designed for straightforward integration into production and packaging lines without compromising on accuracy or build quality.
In place of the brushless motor found in the standard Whizzy, the SM uses a precision stepper motor with integrated electronics, making it easier and faster to set up. Available in 210mm and 350mm widths with horizontal or vertical dispensing, the Whizzy SM handles the same broad product range as the standard Whizzy — coupons, leaflets, greeting cards, stickers, package inserts, smart cards and sachets up to 3mm thick (8mm with special configuration). Stainless steel and Niplate® 600-treated die-cast aluminium construction makes it suitable for food and pharmaceutical environments.
Single product feed adjustable product loading stock
Double shoulder structure in cast aluminum treated Niplate® 600

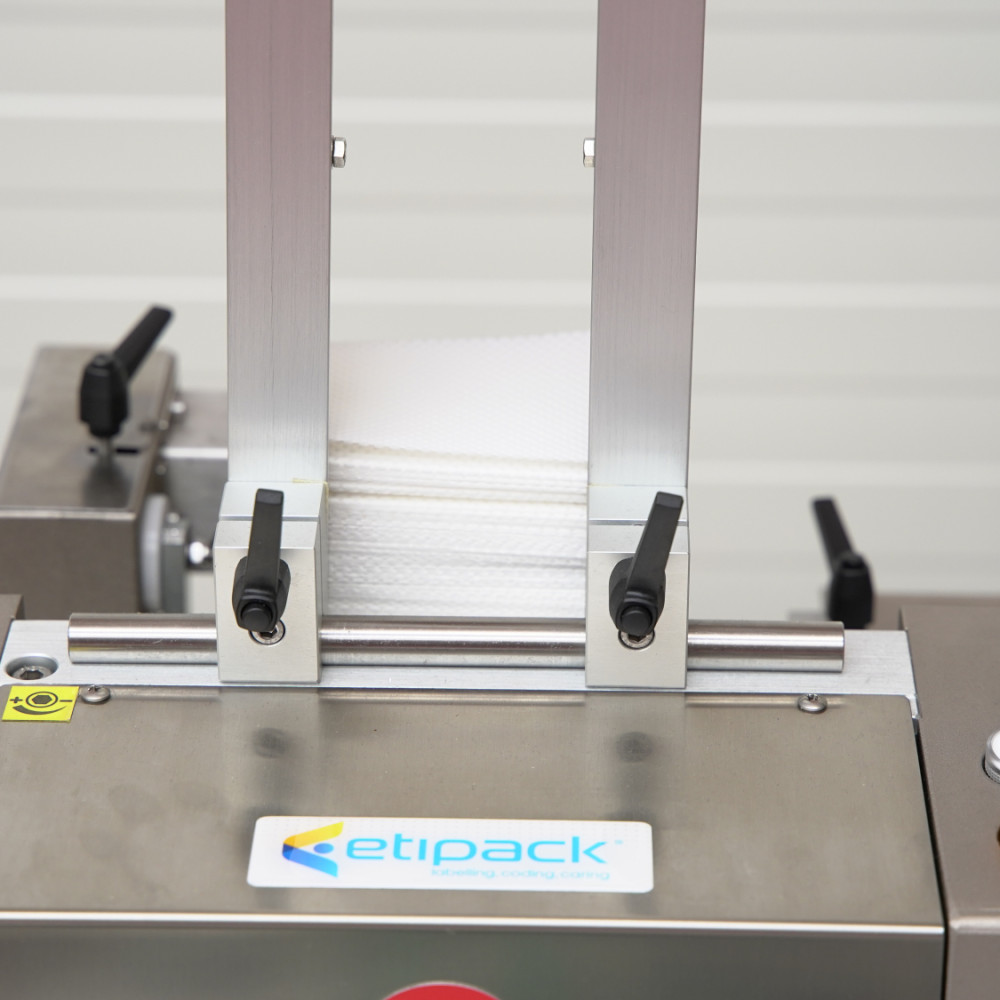

Adjustable product loading stock. Loading also with sheeter in operation
Fixed rear foot kit

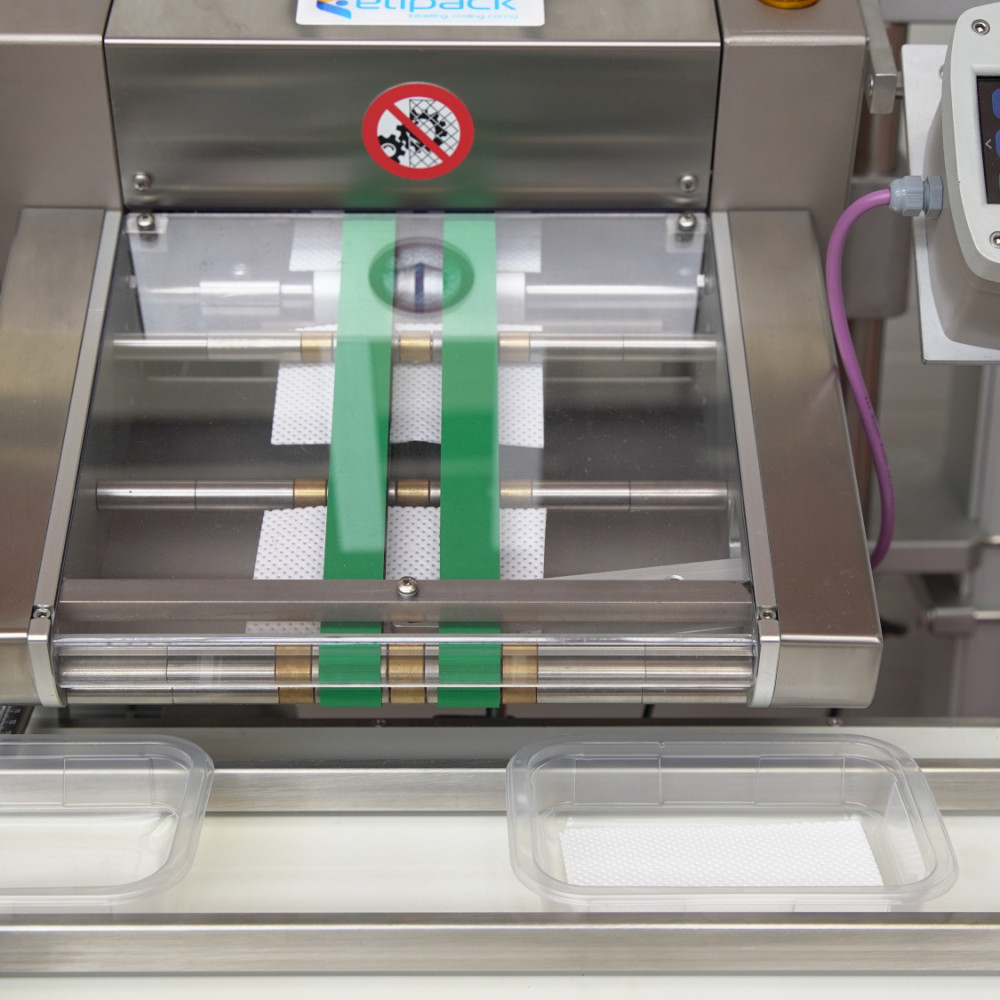

Feeding system with parallel rubberised belts
Single product scraper with micrometric thickness adjustment

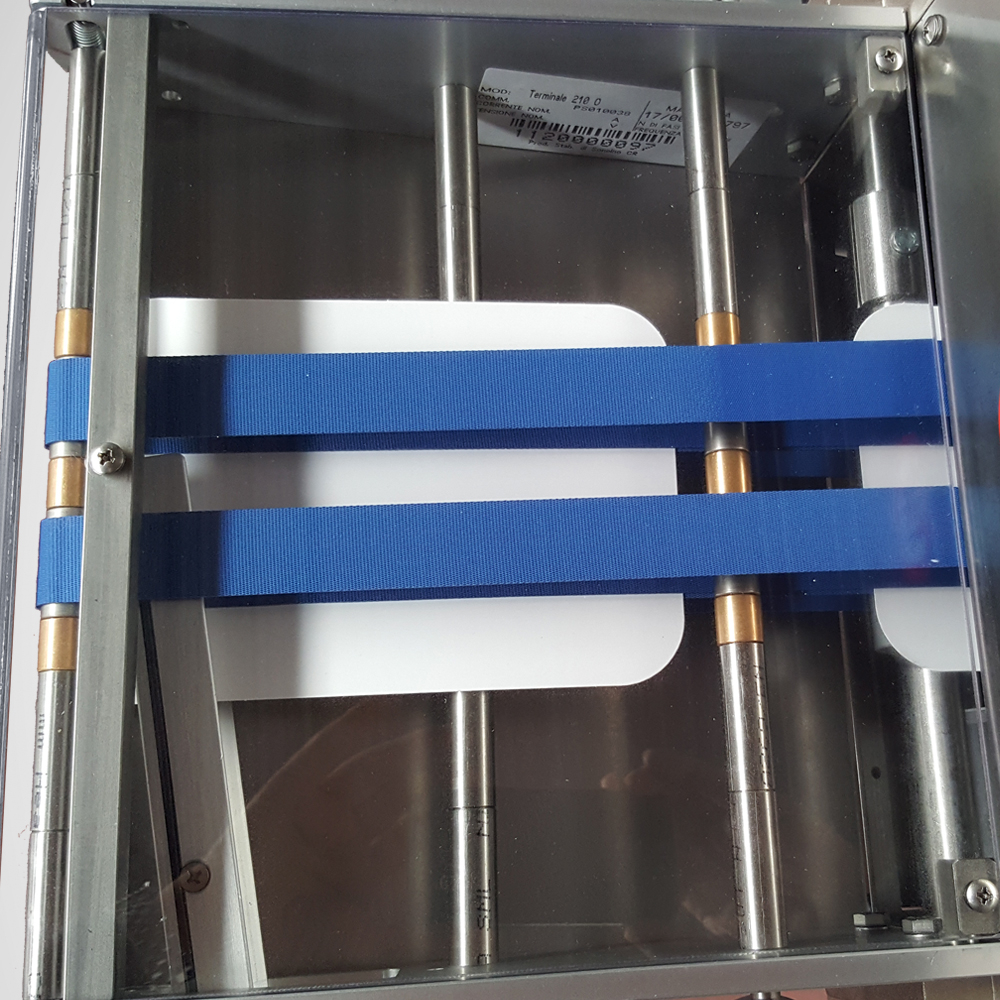

Horizontal distribution terminal with overlapping flat belts
Stepper motor with a feedback control system (speed 60 M/min)
Stop sensor
Integrated electronics

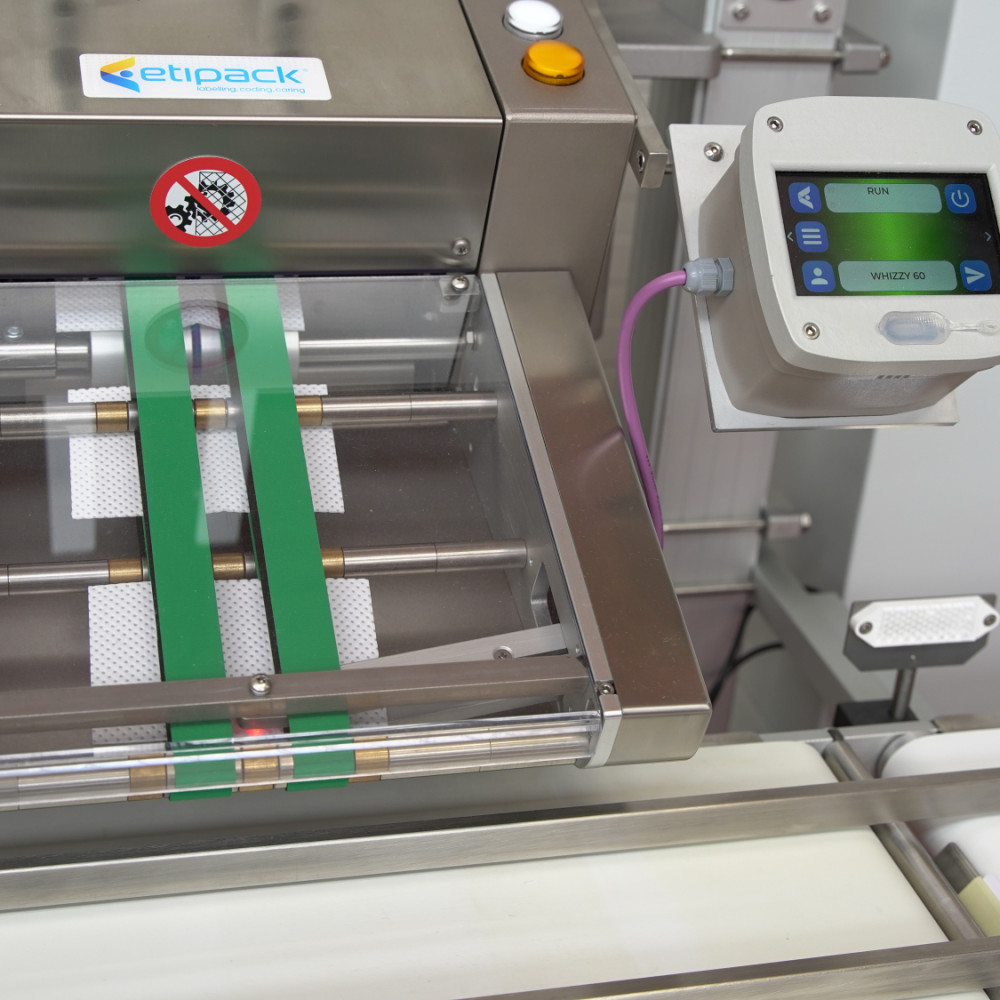

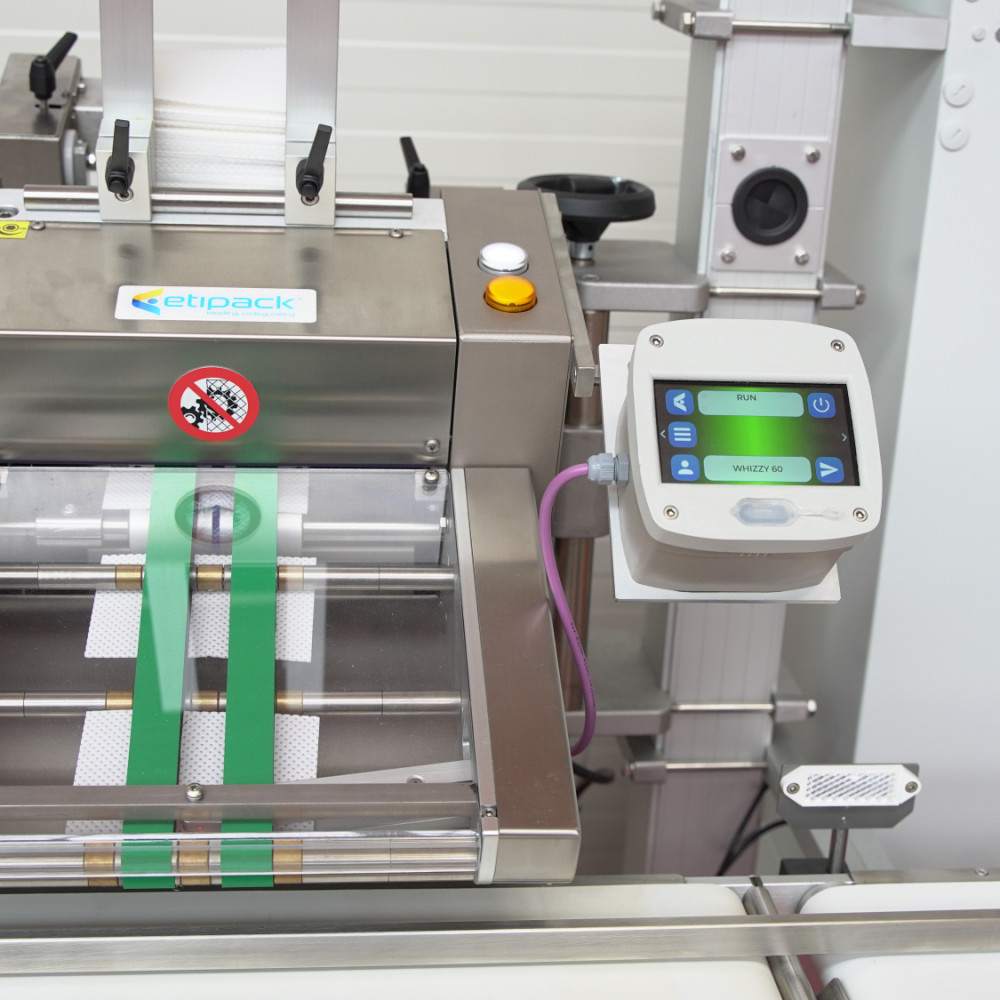

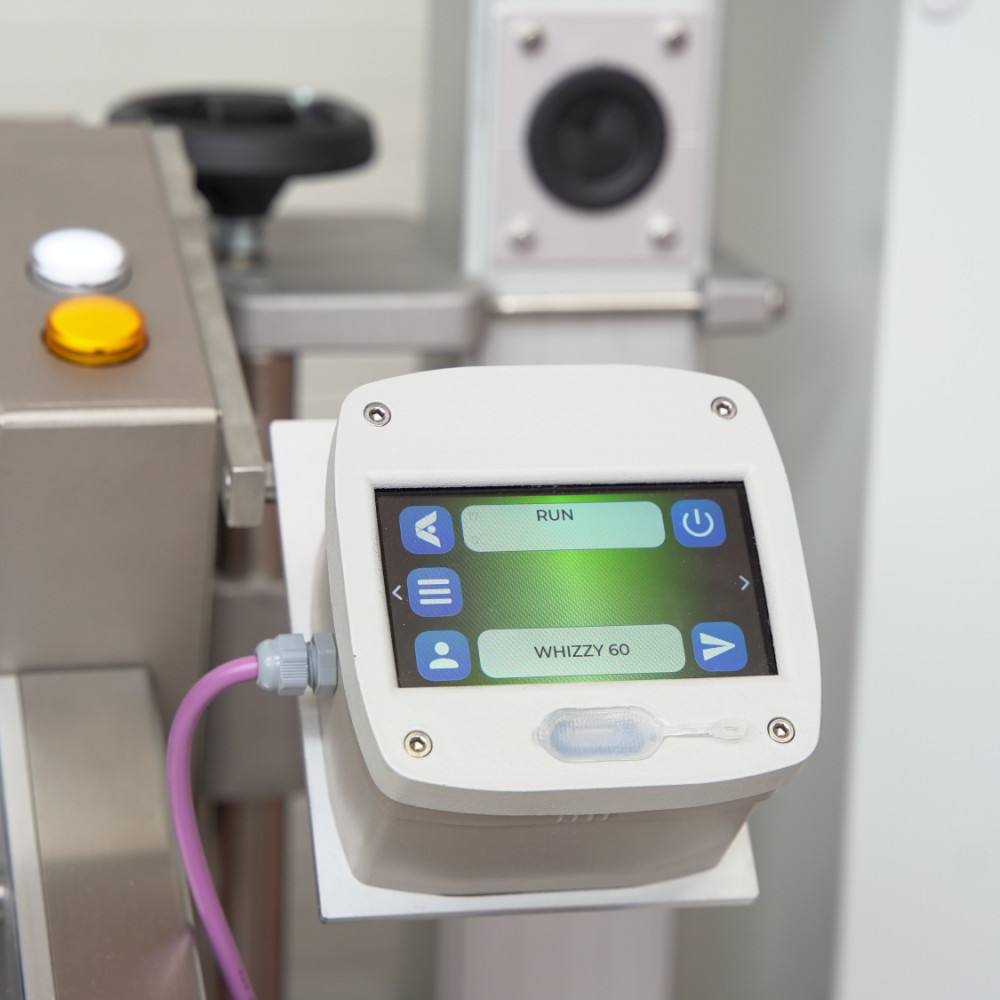

Display keyboard for speed programming and counting; counted products collector (package creation)
Product presence control
Minimum load control in the stock

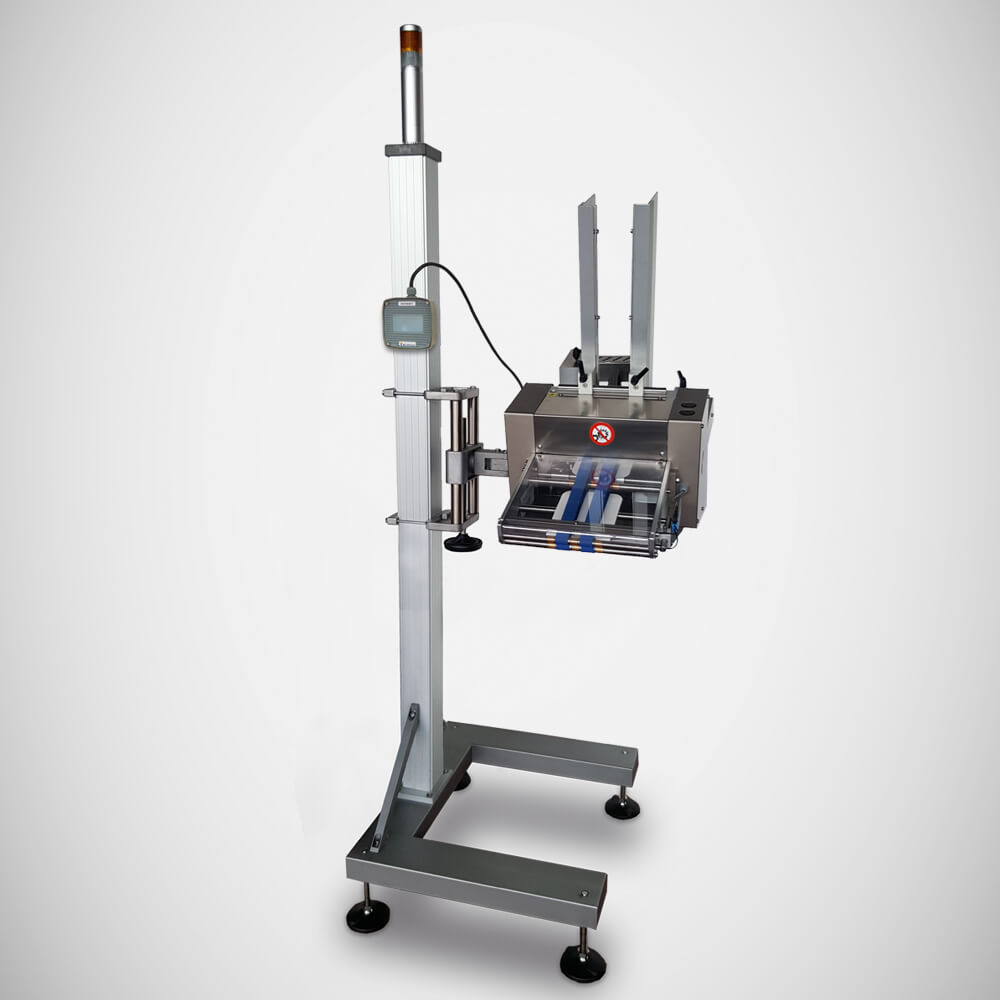

Base support structure
U-shaped support structure
Encoder
Stirrer kit
Air Table
| Features | 210 (H) - 210 (V) | 350 (H) - 350 (V) | |
| Dispensing speed | Up to 80m/min pcs/min with product step |
Up to 80m/min pcs/min with product step |
|
| Product sizes (width x step) |
Min: 50 x 55 mm Max: 210 x 180 mm |
Min: 50 x 50 mm Max: 350 x 180 mm |
|
| Product thickness | 0.2 - 3mm | 0.2 - 3mm | |
| Product dispensing | Horizontally (210 H) Vertically (210 V) |
Horizontally (350 H) Vertically (350 V) |
|
| Motor type | Stepper motor with feedback control system | Stepper motor with feedback control system | |
| Size L x W x H |
687 x 402 x 660mm (H) 451 x 402 x 880mm (V) |
687 x 552 x 660mm (H) 530 x 552 x 880mm (V) |
|
| C.B. dimensions L x W x H |
400 x 200 x 600mm | 400 x 200 x 600 mm | |
| Power supply | 230V, 50-60 Hz | 230V, 50-60 Hz | |
| Electrical input | 150W | 150W |
