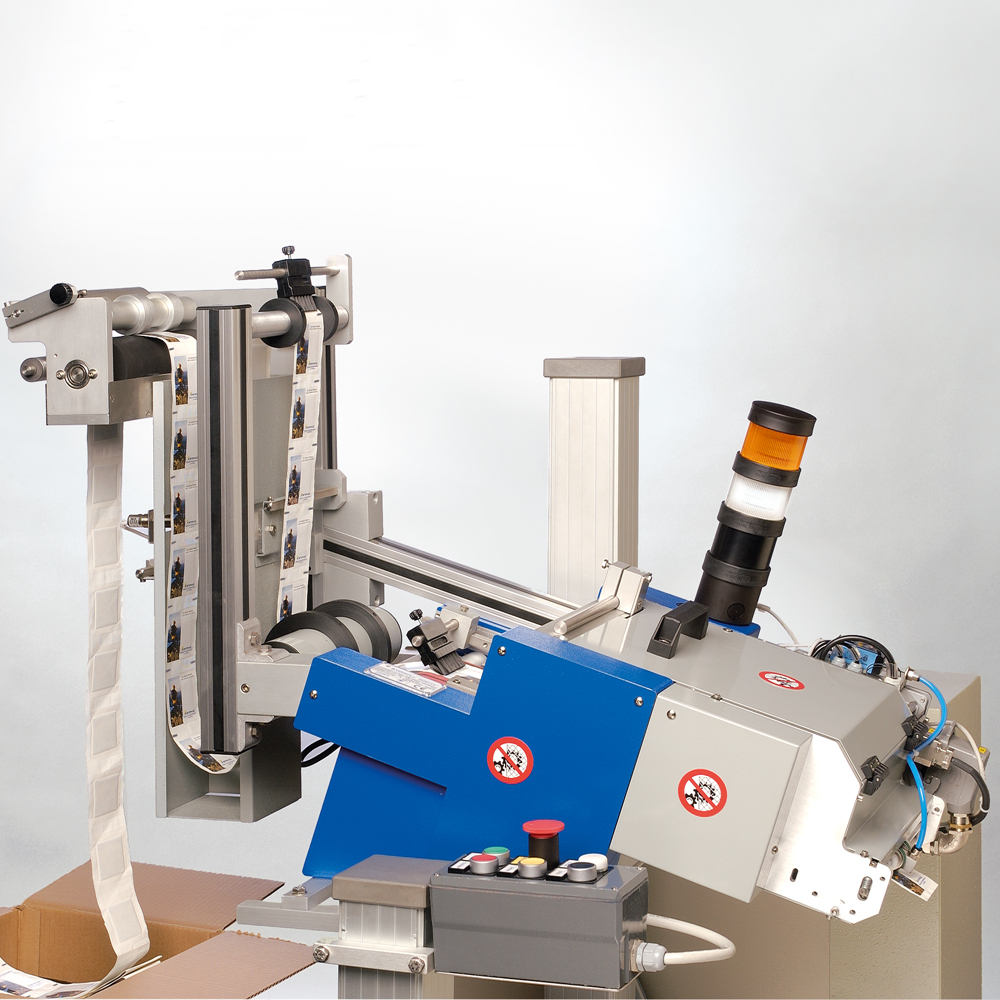

Etipack Whizzy Roll — Roll-Fed Friction Feeder

Automatic Unrolling, Cutting and Feeding for Packaging Lines.

The Etipack Whizzy Roll is a specialist friction feeder designed for applications where the product to be fed is supplied in roll form rather than as pre-cut sheets.

The machine automatically unrolls the material, cuts it to the required size and feeds it into the packaging line — all in a single, continuous operation at speeds of up to 150 pcs/min.

An orbiter cutter ensures a clean, precise cut, with cutting length set via keyboard to allow quick changeovers between formats. Compatible materials include paper, card, flexible packaging, plastic materials, cleaning pads and food absorbent pads up to 2mm thick. The Whizzy Roll is the right choice where pre-cut stock is impractical or where cutting to size in-line offers a process efficiency advantage.

Features

Features of the feeder

  • Feeding from roll format

  • Mechanic unwinder

  • Brushless drawing  with step movement by stop control

  • Orbiter cutter with saw-toothed and brushless motor actioning

  • Stop sensor on product distribution

  • Separate control box (remote terminal up to 3 m) with integrated PLC

  • Separate control panel  (remote up to  3 m)

  • Brushless motor

  • Programming keyboard

Ancillary devices

  • Base support structure

  • Customized support structure

Technical Specification

Features
Dispensing speed ≤ 60 m/min (150 pcs/min depending on the products step)
Dim. prod. lunghezza 55 - 300 mm
Product sizes L 50 - 150 mm
Product sizes W 1÷2 mm
Product dispensing Horizontally
Dispensing unit width 366 mm
Motor type Brushless
Size L - W - H 877x672x500mm
C.B. dimensions L - W - H 600x200x600mm
Power supply 230 V, 50-60 Hz
Electrical input 920 W
Electric protection IP 54
