Etipack Whizzy CF — Cut & Feed Bandolier Friction Feeder

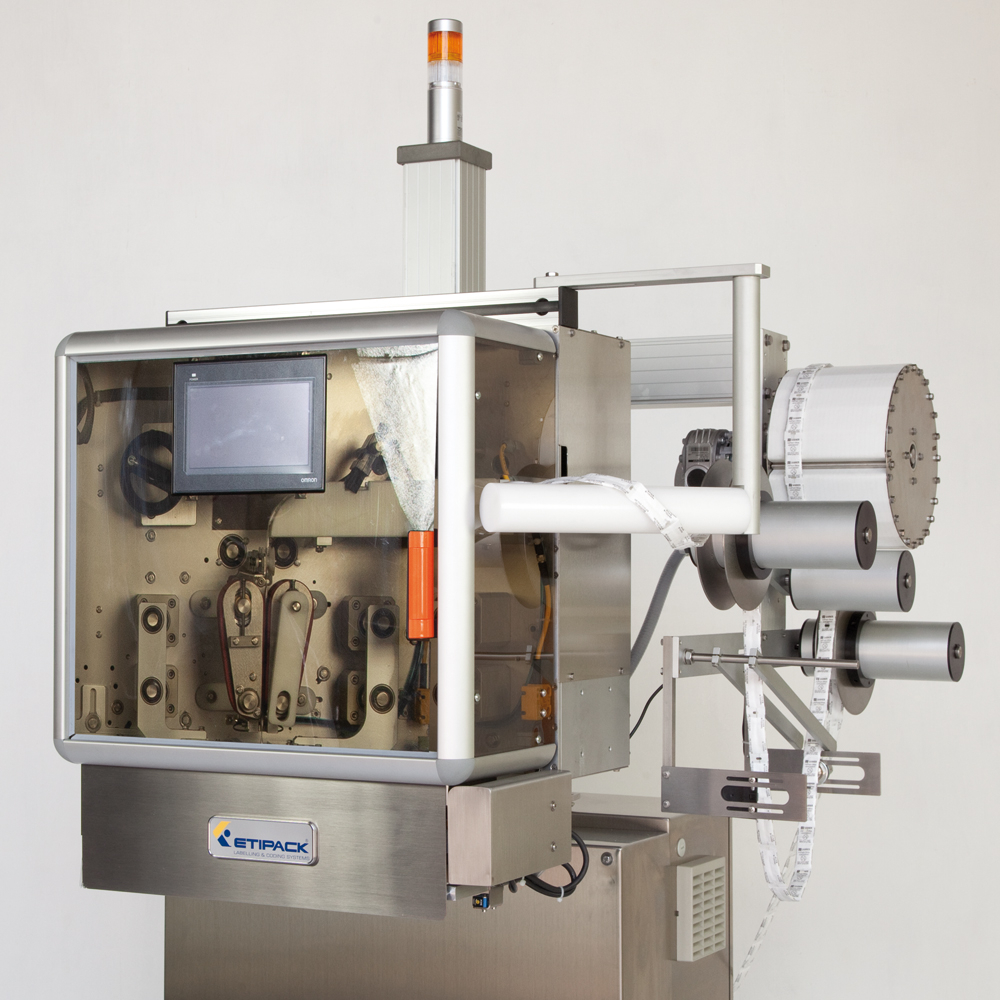

The Etipack Whizzy Cut & Feed is a specialised friction feeder for applications where products — such as coupons, cards or inserts — are supplied connected in a bandolier (continuous strip) format and need to be separated and fed individually into the packaging line.
The machine cuts cleanly through the connecting material between products and feeds each item individually with the precision and reliability characteristic of the Whizzy range. It is the right solution where pre-separated stacked product is not available or practical, and where a compact, reliable in-line cut-and-feed process is needed.

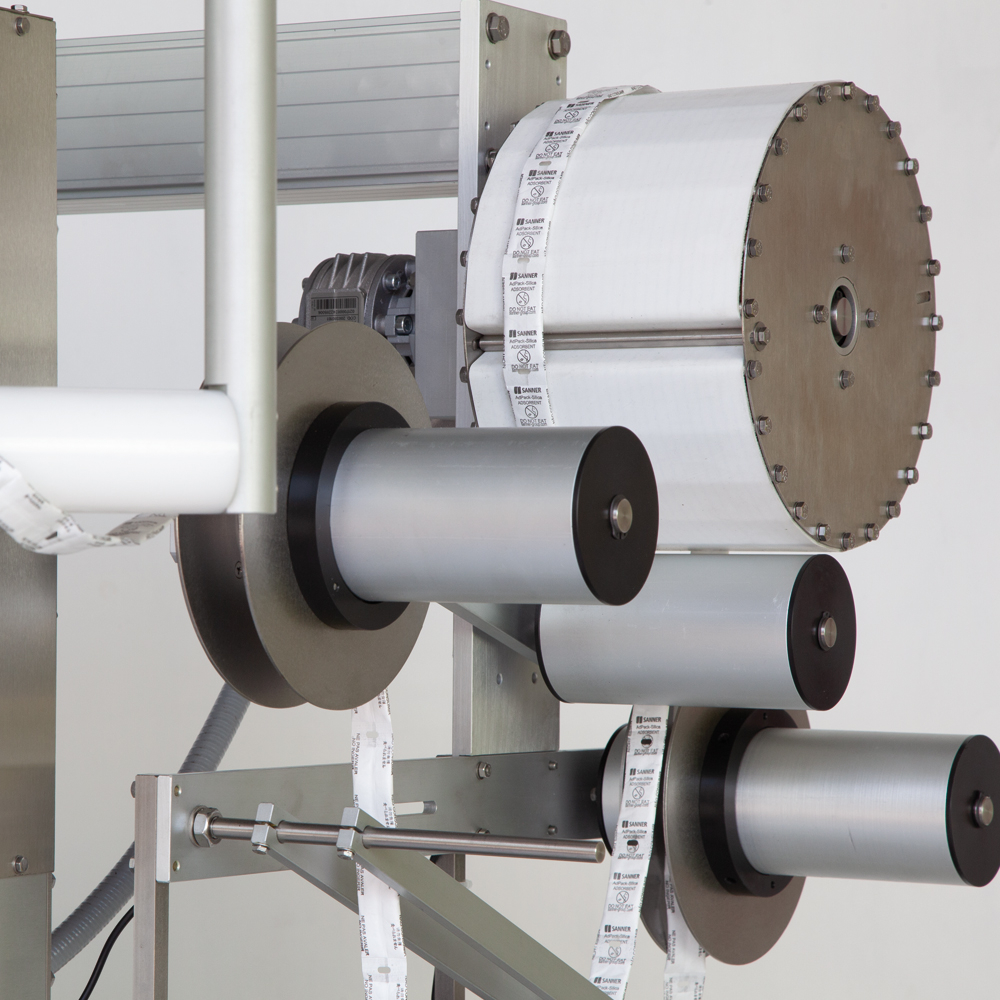

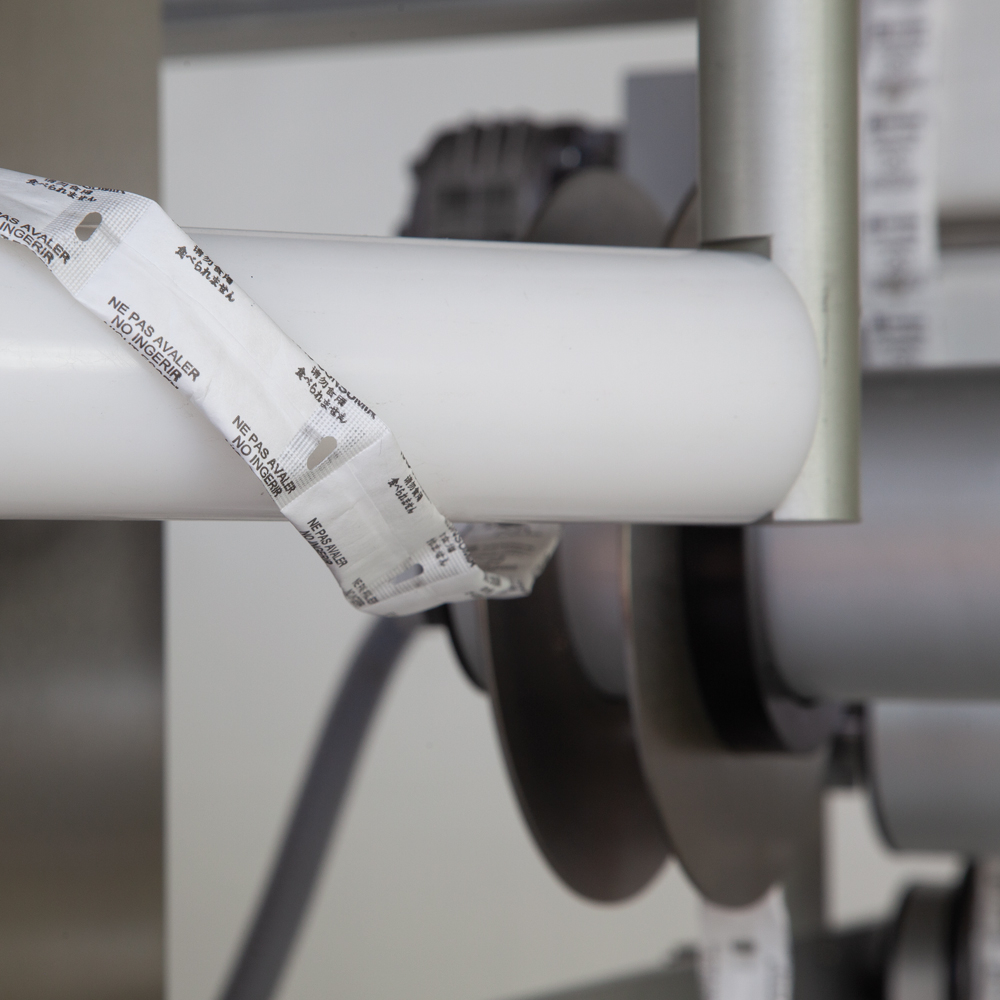

Bandolier feeding
Encoder for checking cutting pitch
Control system on thickness
Programmable brusheless motorized drawing module
Brushless motorized cutter
Stop sensor on product distribution
Separted control box (remote terminal up to 3 m) with integrated PLC
Separate control panel (remote up to 3 m)
Brushless motor
Base support structure
Customized support structure
Motorized feeding units
| Features | |||
| Dispensing speed | ≤ 60 m/min (130 pcs/min with bag dimensions of 40x40 mm and weight of 5 g) | ||
| Product sizes L | 30 - 180 mm | ||
| Product sizes W | 30 - 150 mm | ||
| Product thickness | 1÷10 mm | ||
| Product dispensing | Horizontally | ||
| Motor type | Brushless | ||
| Size L - W - H | 1215x1020x2030mm | ||
| C.B. dimensions L - W - H | 600x250x700mm | ||
| Power supply | 400 V, 3P-N-PE V 50/60 Hz | ||
| Electrical input | 1380 W | ||
| Electric protection | IP 54 |
