Label Applicators

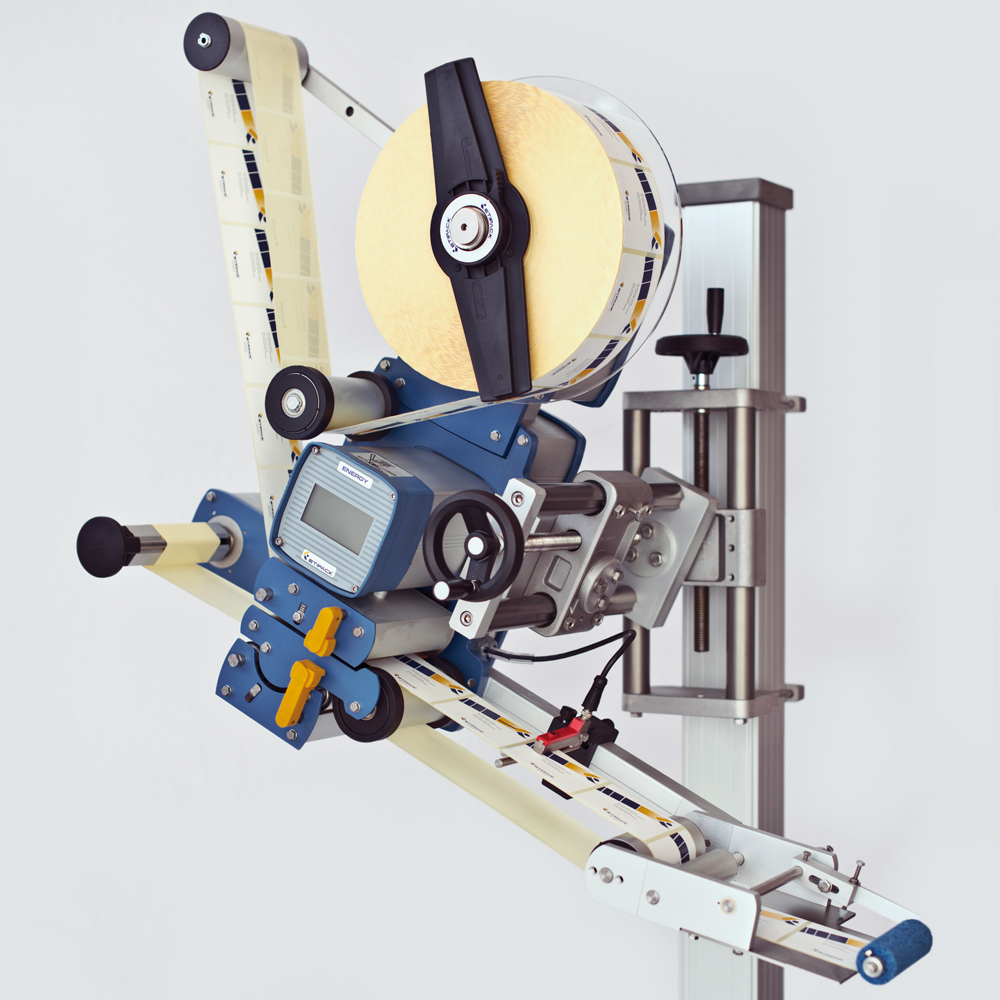

Etipack Energy - Versatile Label Applicator
The Etipack Energy is the versatile all-rounder in the Etipack range — built for everyday production lines that need dependable speed and low running costs. Its hybrid stepper motor delivers application speeds up to 60m/min while holding label placement to ±0.5mm, and a built-in energy-saving mode cuts power consumption during periods of inactivity.
Multi-tasking electronics let operators adjust parameters while the machine runs, minimising downtime. Available in three versions for label widths up to 100mm, 200mm or 300mm, the Energy is fully configurable with a range of applicators and ancillary devices and works as a print-and-apply system with all major thermal, hot-stamp and inkjet print units.
The configuration is totally customisable with the fitting of a wide range of applicators, support columns and ancillary devices depending on the application requirements of the labels.
Supplied exclusively by Advanced Labelling Systems Ltd, Etipack's official UK & Ireland partner, with full on-site installation, training and on-going support.
| Model Features | Energy 100 | Energy 200 | Energy 300 |
| Dispensing Speed | ≤ 60 m/min | ≤ 50 m/min | ≤ 20 m/min*¹ |
| Material Width | 20 - 100 mm | 20 - 200 mm | 20 - 300 mm *² |
| Outside Roll Ø | ≤ 280 mm | ≤ 280 mm | ≤ 280 mm |
| Inside Core Ø | 40 - 75 mm | 40 - 75 mm | 40 - 75 mm |
| Motor | Hybrid stepper motor | Hybrid stepper motor | Hybrid stepper motor |
| Stop Tolerance | ± 0.5 mm | ± 0.5 mm | ± 0.5 mm |
| Size L - W - H | 581x319x722 mm | 611x419x752 mm | 611x578x802 mm |
| Power supply | 115/230 V, 50-60 Hz | 115/230 V, 50-60 Hz | 115/230 V, 50-60 Hz |
| Electrical input | 150 W | 150 W | 150 W |
| Elettrical protection | IP 54 | IP 54 | IP 54 |
| Noise level | 70 dB | 70 dB | 70 dB |
| Version | DX - SX | DX - SX | DX - SX |
| *¹ with label widths up to 250 mm. *² motorised rewinder required for labels wider than 250 mm. |
