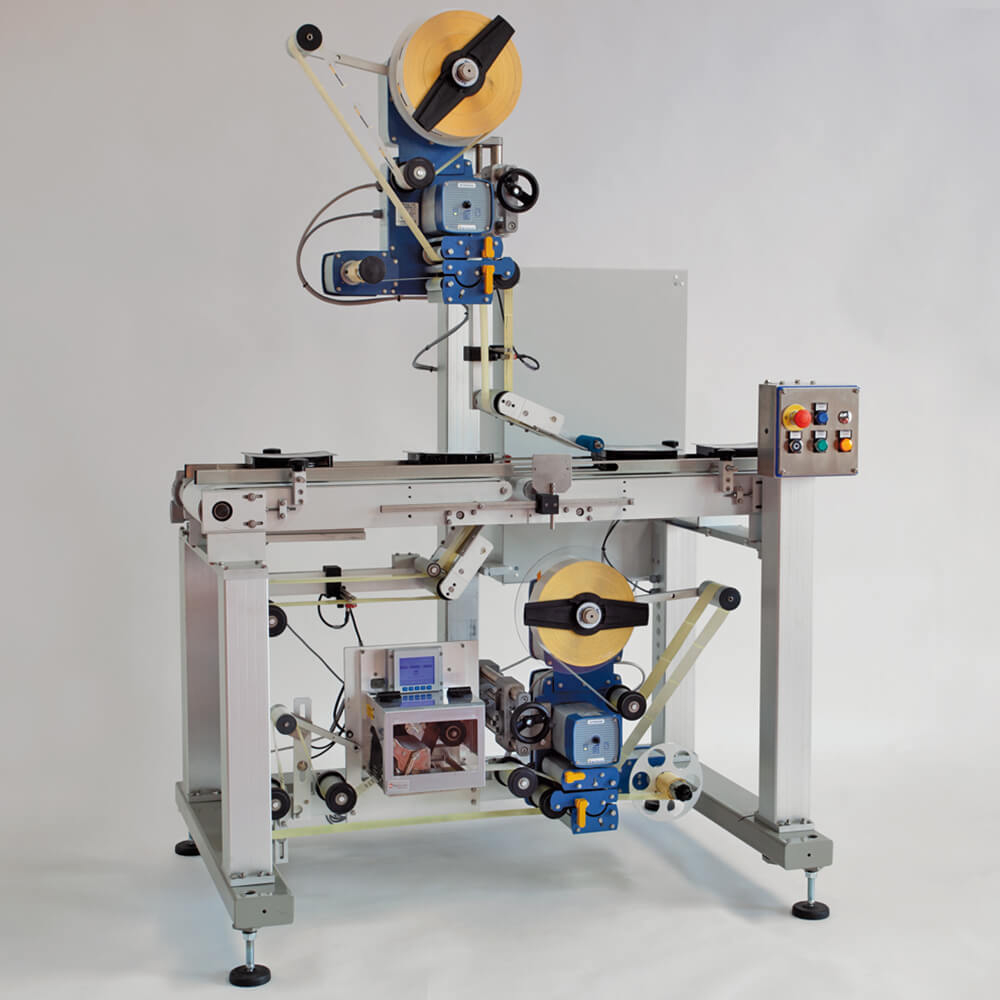

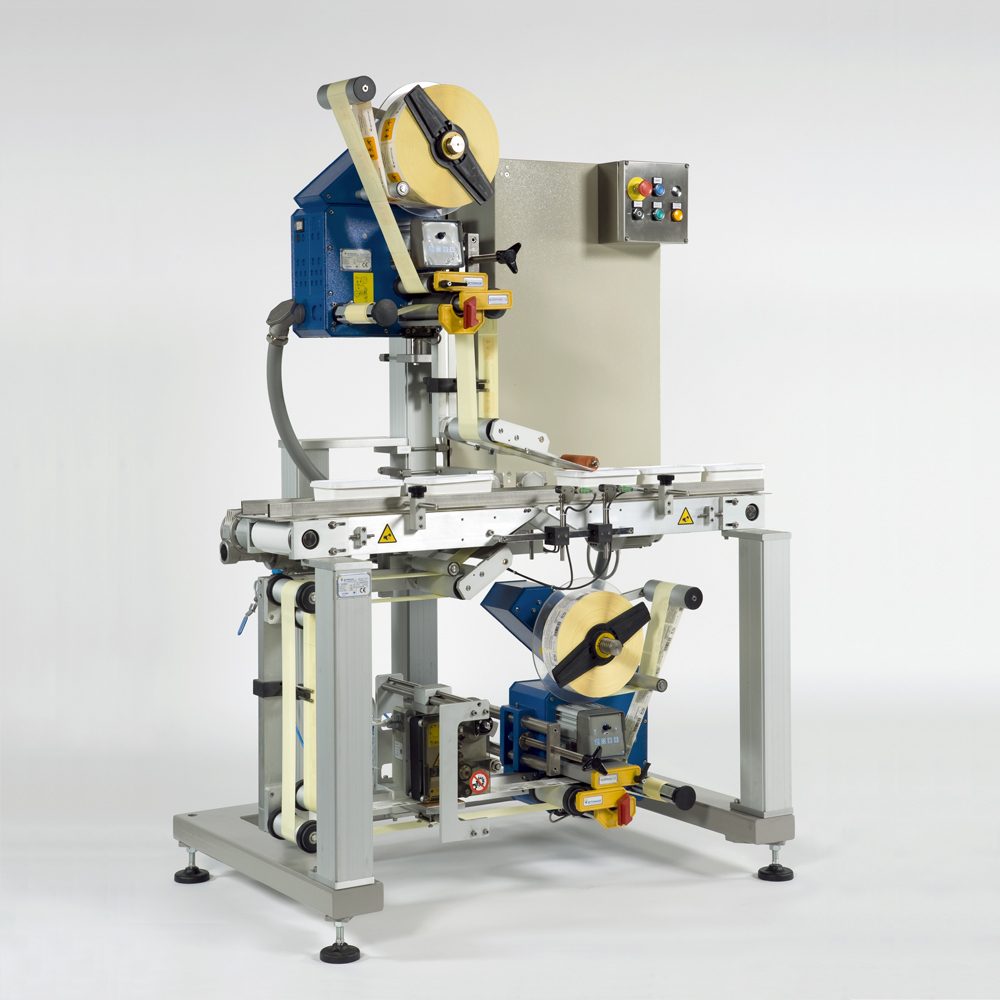

The Etipack System 4 series includes a range of automatic labelling machines for the application on the top and bottom/base of products.
Labelling systems are fully automatic labelling machines with an integrated conveyor system; they are self-sufficient small labelling lines providing for conveying, handling and labelling.
They can therefore be used both offline or connected to other packaging machines (e.g. filling, thermoforming machines).
Our automatic systems for top and/or bottom application are ideal for the labelling of thermoformed trays, vacuum-packed food, jars, bottles, thin boxes, products and containers made of plastic, glass or metal, for food market (e.g. sliced cheese, ham ) as well as for chemicals and cosmetics.
The modular design allows fitting, on a main machine body, a variety of labelling machines of different width and speed, as well as a wide range of ancillary devices that complete the main function.
The system is compatible with different types of print units – hot stamp, thermal transfer or inkjet - from manufacturers such as EIDOS, Markem, ICE/Videojet, to print any codes, variable data and images.
Varnished steel machine chassis with panels in stainless steel
Conveyor with 2 independent belts and gap for bottom labelling
Bottom labelling machine
Top labelling machine
Print units (thermal ink jet, thermal transfer, hot foil)
Controls and alarms
| Production speed | ≤ 150 pcs/min (with small product, 30 pcs/min with large product) | ||
| Dispensing speed | ≤ 20 m/min | ||
| Product size (width x step) | From 60 x 80 mm to 275 x 350 mm | ||
| Product height | 7÷90 mm | ||
| Label dimensions (width x step) | From 8 x 8 mm to 98 x 250 mm | ||
| Outside reel Ø | ≤ 280 mm | ||
| Inside reel Ø | 40÷75 mm | ||
| Size L - W - H | 1343x1056x1777mm | ||
| Power supply | 230 V, 50/60 Hz | ||
| Electrical input | 1200 W |
