Label Applicators
Videos

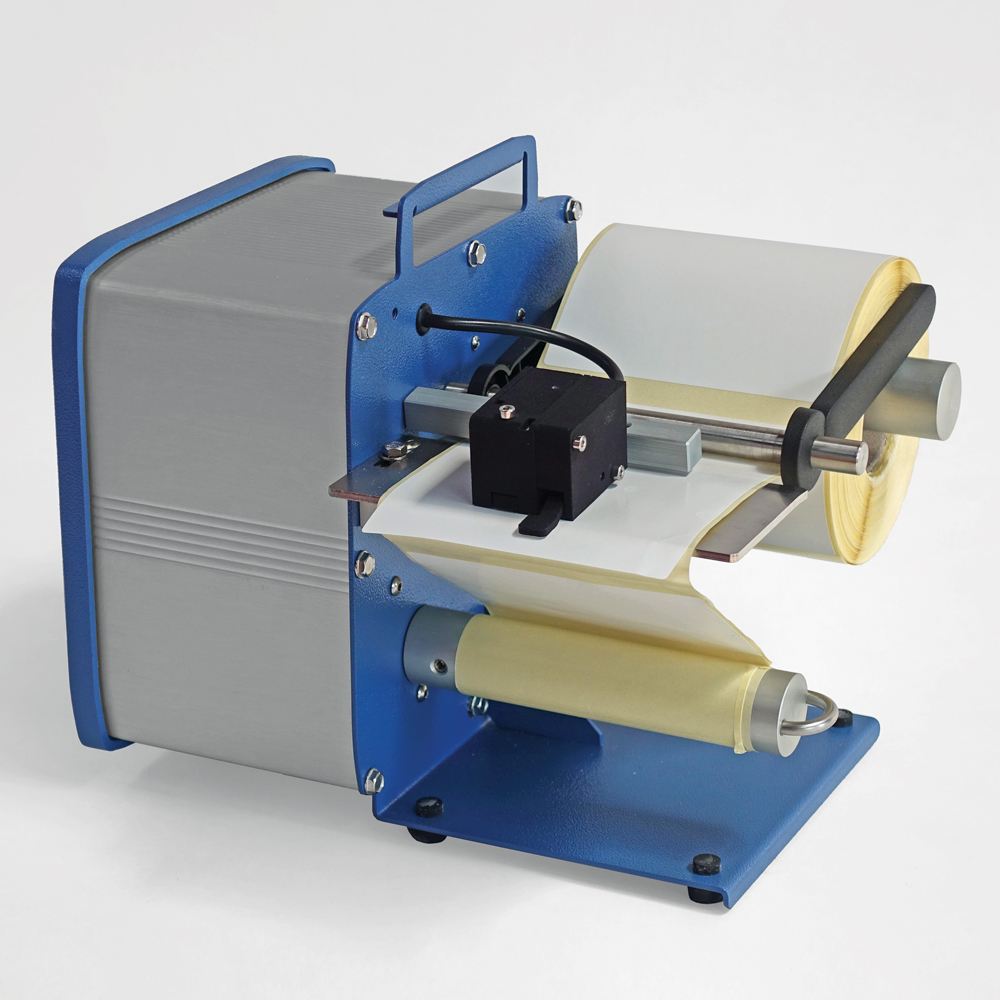

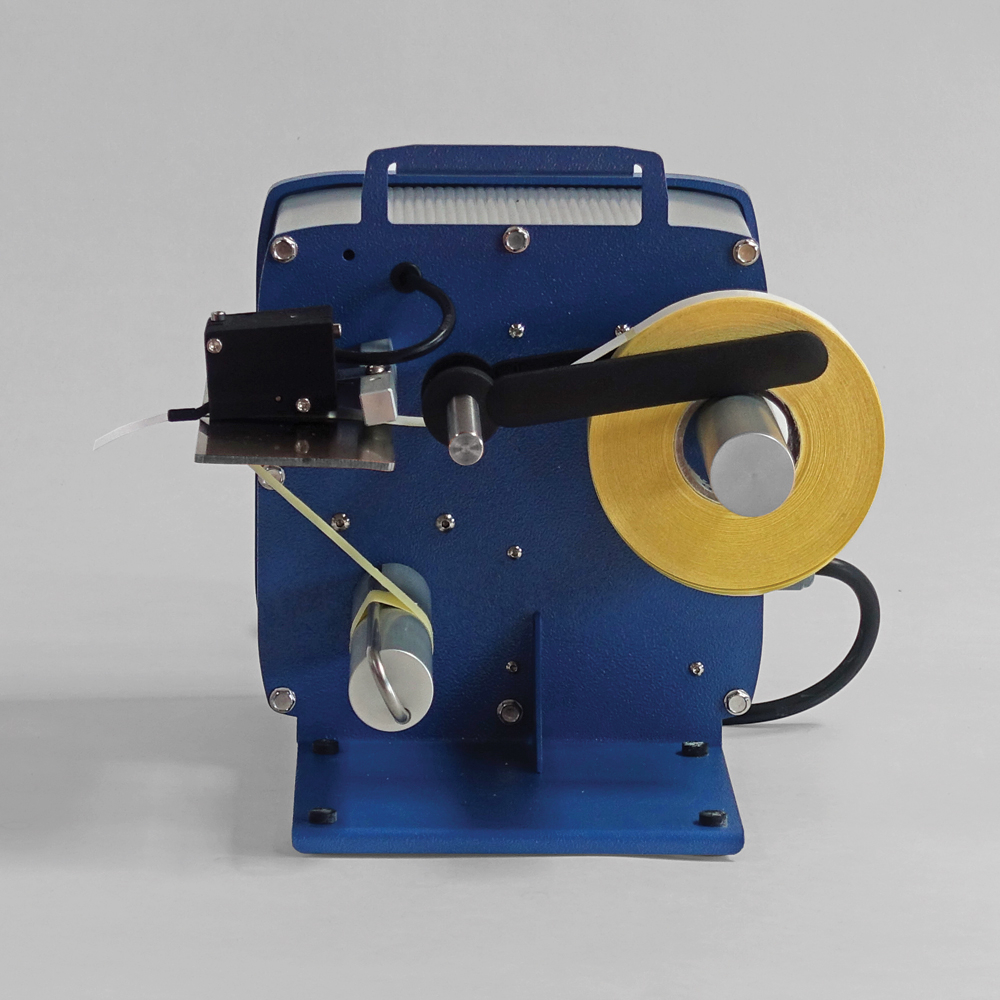

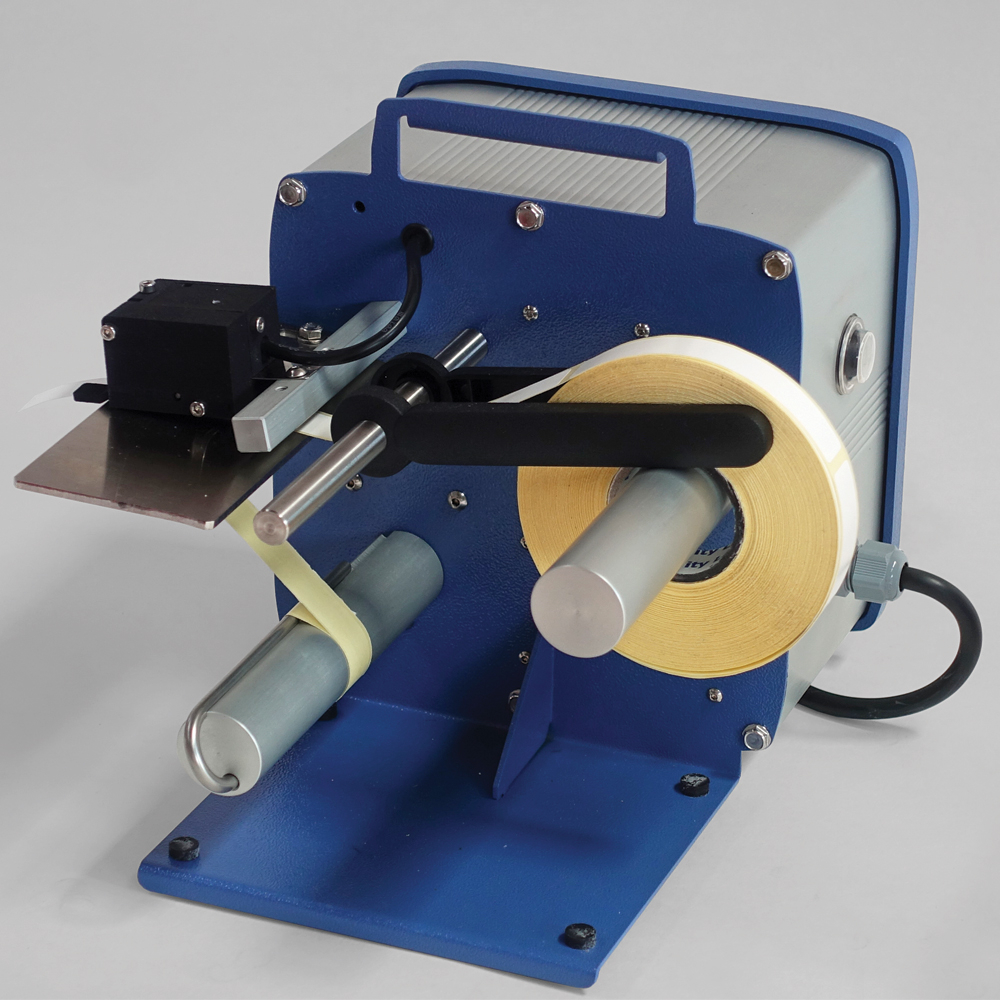

Label Dispenser: HANDY-X
Motorised dispenser that unrolls, peels, and presents, self-adhesive labels.
The HANDY-X is a small machine for dispensing labels on reels, with a backing width up to 130mm
It presents self-adhesive labels automatically, ready to be taken by an operator
As each label is removed, the next is dispensed
HANDY-X supports reels up to 180mm diameter and dispenses paper labels or transparent labels thanks to a sturdy and sensitive microstart/microstop sensor, detecting the gap between the labels
It is very useful for small packaging batches speeding up the process of peeling the labels from the liner, without any label being wasted.
Features
Features of the dispenser
- Reel holder diameter 180 mm

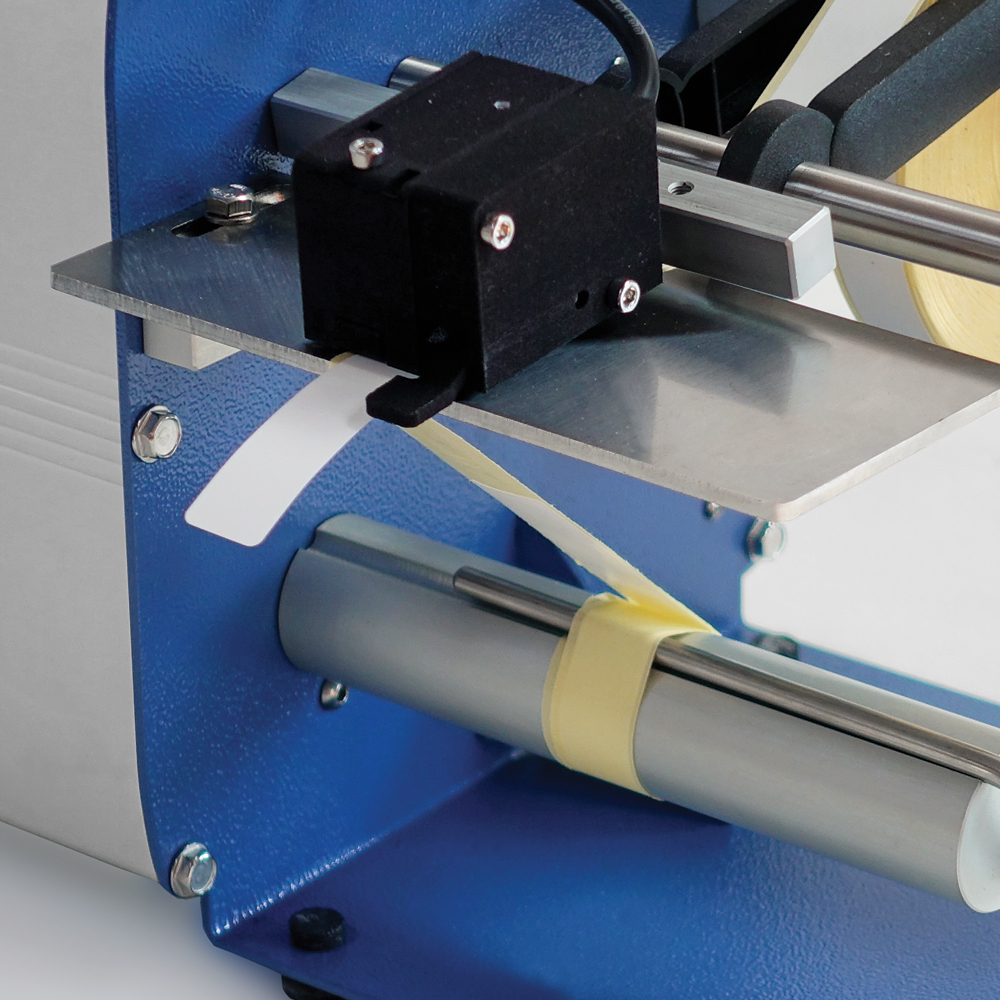

- Microstart/microstop label gap sensor
- Stepper motor
Technical Specification
| Dispensing speed | 3-6 m/min | ||
| Label dimensions (width x step) | From 10 x 15 mm to 130 x 200 mm | ||
| Outside reel Ø | ≤ 180 mm | ||
| Inside reel Ø | 40-45 mm | ||
| Motor | 24 V Direct current | ||
| Size L - W - H | 240x288x240mm | ||
| Power supply | 230 V, 50 - 60 HZ | ||
| Power | 40 W | ||
| Elettrical protection | IP 22 | ||
| Noise level | < 75 dB* | ||
| * during the label dispensing |
