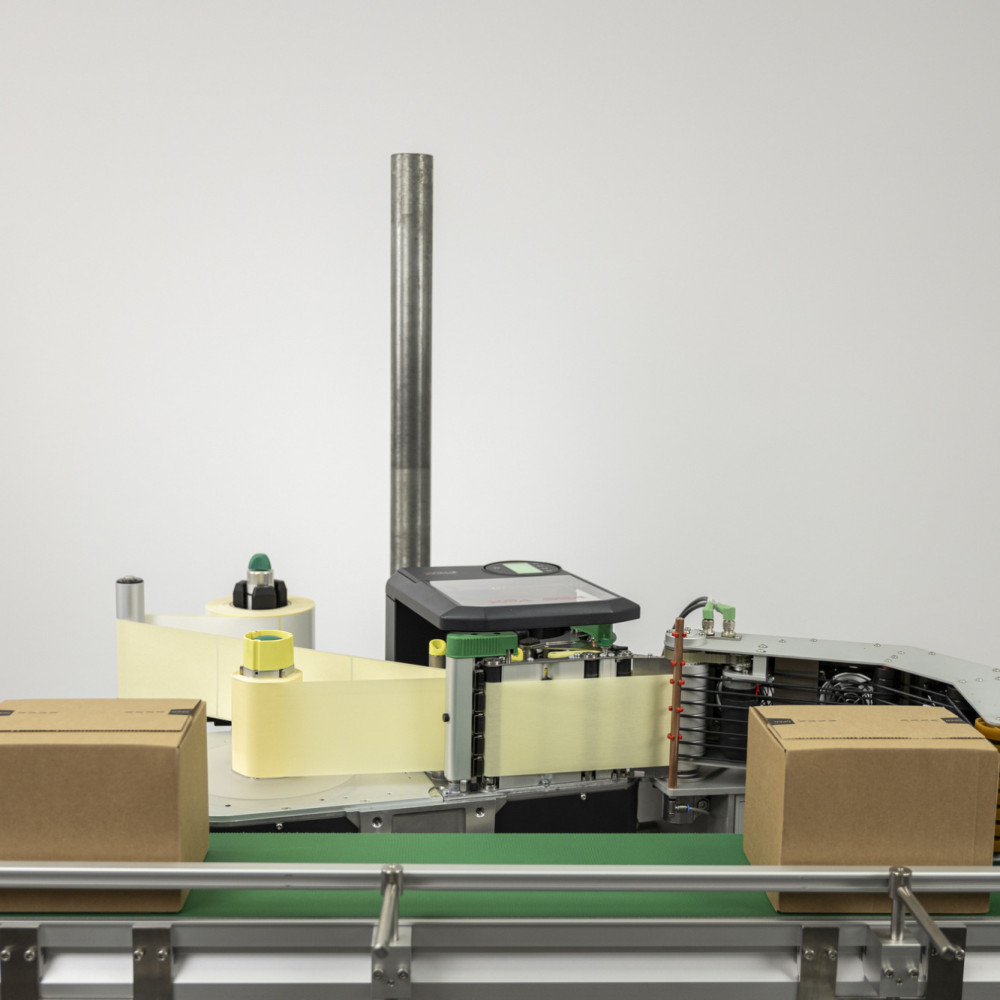

Coupled with a Novexx XPA Print & Apply labeller, the LA-CE Corner-Edge applicator is an automatic method of applying the last printed label on the corner of boxes and products on the move.

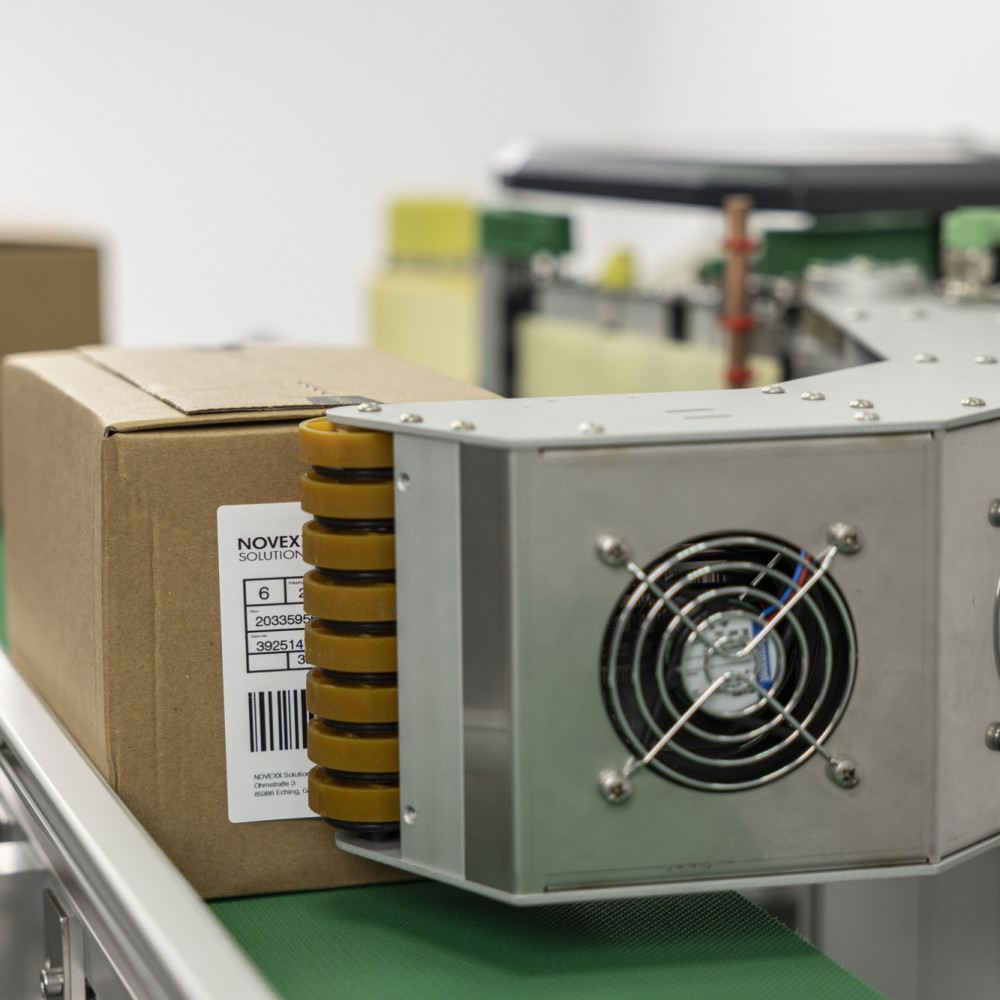

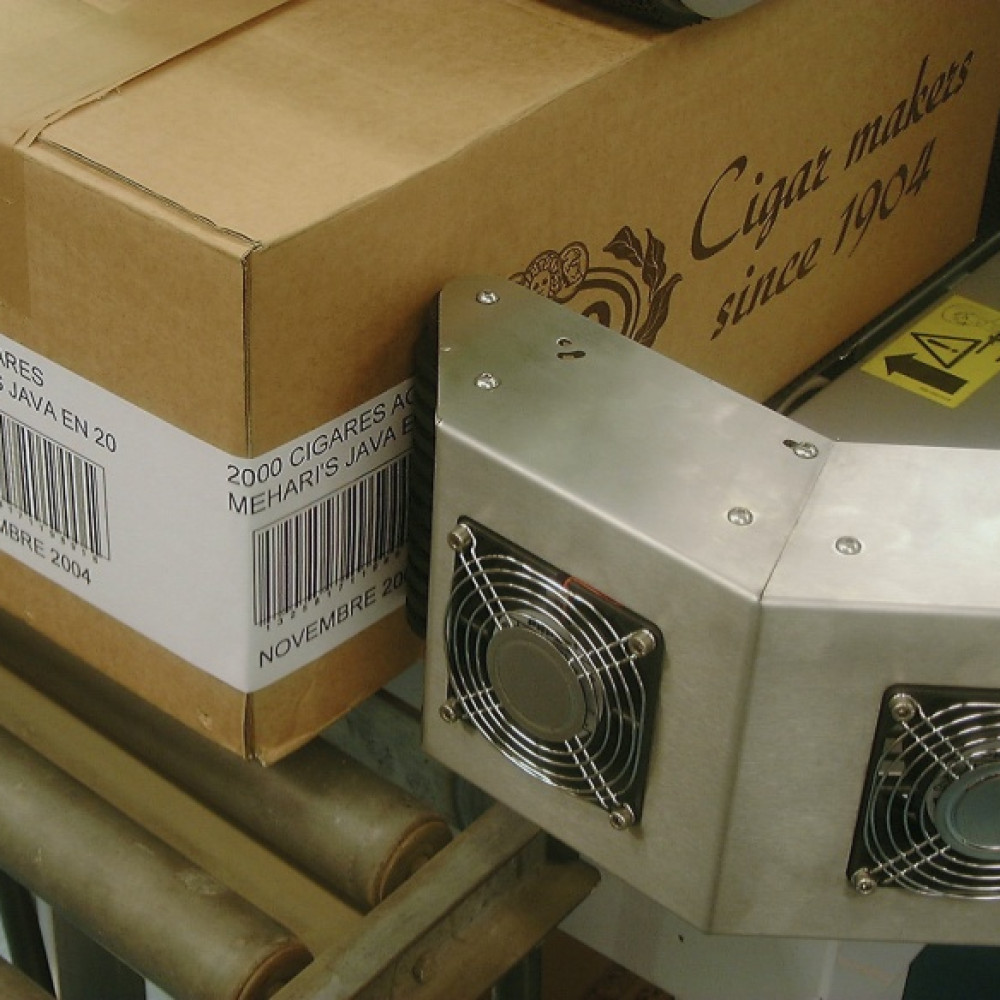

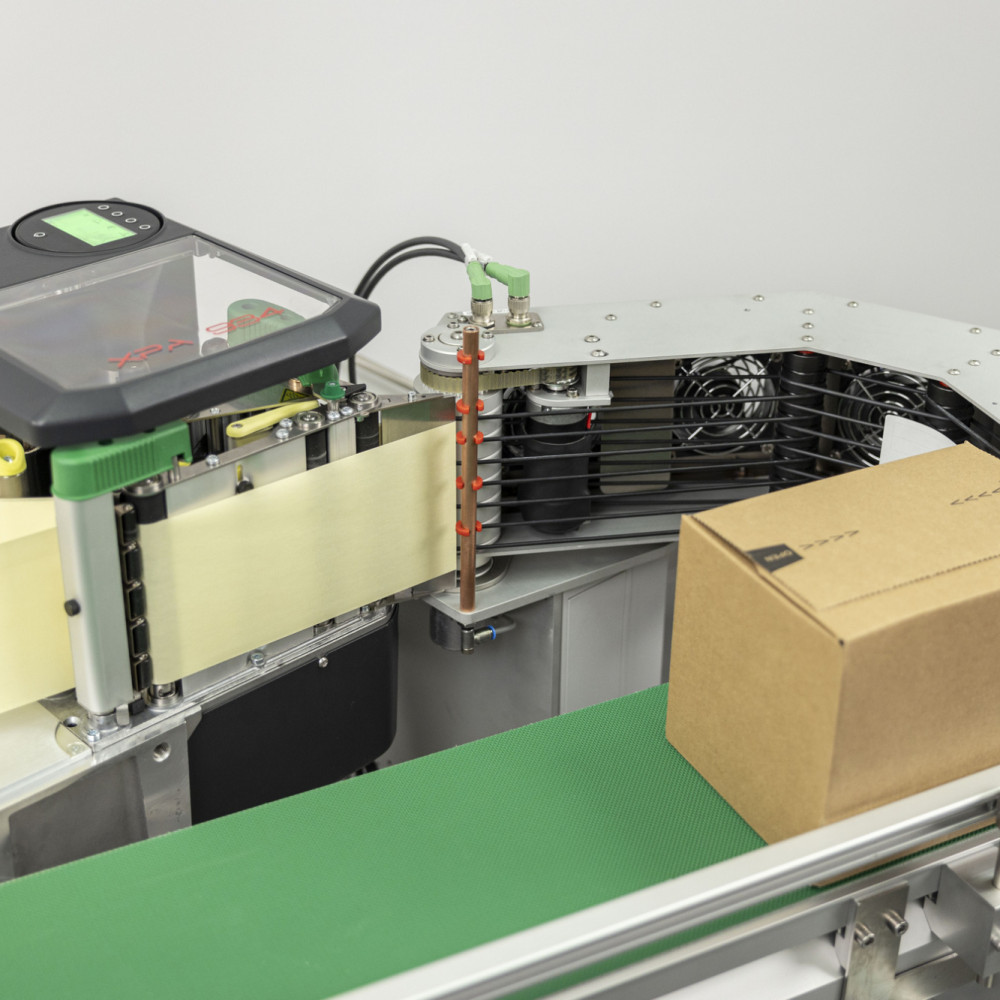

The core of the Corner print and apply system is the XPA 934 model, with dual processor electronics and equipped with a motorised belts applicator that keeps the label in place by a vacuum system and then releases it on the corner (front and side or front and top) of boxes and products on the move.
| Features | CORNER 4 | CORNER 6 | |
| Print speed | ≤ 250 mm/s | ≤ 250 mm/s | |
| Dispensing speed | ≤ 15 pcs/min | ≤ 10 pcs/min | |
| Label size (width x step) | From 70x90 mm to 120x240 mm | From 70x90 mm to 170x240 mm | |
| Print area | ≤ 100x200mm | ≤ 160x200 mm | |
| Type of printing | Thermal transfer or direct thermal | Thermal transfer or direct thermal | |
| Outside reel Ø | ≤ 280 mm | ≤ 280 mm | |
| Inside reel Ø | 40-75 mm | 40-75 mm | |
| Size L - W - H | 821x1134x459 mm | 821x1134x493 mm | |
| Power supply | 115/230 V, 50/60 Hz | 115/230 V, 50/60 Hz | |
| Electrical input | 400 W | 400 W | |
| Barcodes | All types | All types | |
| Text rotation | 4 directions | 4 directions |
