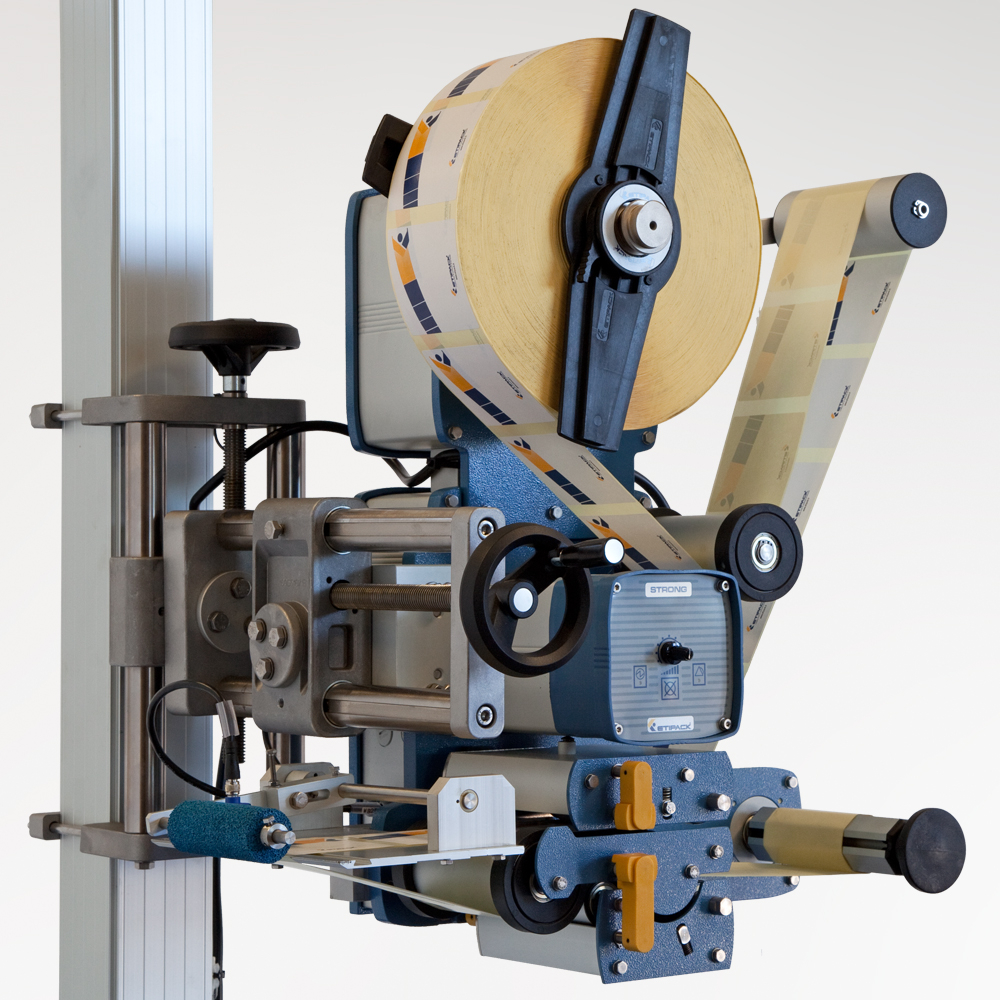

Etipack Labelling Machine: Entry level – Strong(30)

The Etipack Strong labelling machine is an entry-level model label applicator. It is compact, robust, reliable and cost-effective. Designed for a wide range of industrial labelling needs.

The Strong automatic labeller is available in 2 widths; 100mm or 200mm.  The configuration is totally customisable with the fitting of a wide range of applicators, support columns and ancillary devices depending on the application requirements of the labels.

This label applicator can serve as a print and apply machine with the fitting of any thermal print unit available.  It is fully compatible with all models of print units and coders – hot stamp, thermal transfer, inkjet- manufactured by major manufacturers such as ICE/Clearmark, Videojet, Markem, Datamax-Honeywell, EIDOS, Sato, HSA or Wolke, to print any codes, variable data and images.

Features

Features of the label applicator

  • Unwinder with disc brake
  • Belt rewinder
  • Rewinder for plastic supports
  • Membrane keyboard for main functions
  • End of coil control and/or jamming
  • Label step control
  • Pre-alarm end of roll

Ancillary devices

  • Printing units (hot stamping, thermal transfer, ink jet)
  • Pneumatic applicators
  • Applicator for irregular surfaces
  • Rewinder for plastic supports
  • Display keyboard
  • Labelling control with 1 or 2 barriers
  • Printing control

Technical Specification

Features 100 200
Dispensing speed ≤ 30 m/min ≤ 20 m/min
Dispensing W 20 - 100 mm 20 - 200 mm
Outside reel Ø ≤ 280 mm ≤ 280 mm
Inside reel Ø 40 - 75 mm 40 - 75 mm
Motor Stepper motor Stepper motor
Stop Tolerance ± 0.5 mm ± 0.5 mm
Size L - W - H 581 x 325 x 608mm 581 x 425 x 608 mm
Power Supply 115/230 V, 50-60 Hz 115/230 V, 50-60 Hz
Electrical input 100 W 100 W
Elettrical protection IP 54 IP 54
Noise level 70 dB 70 dB
Version DX - SX DX - SX
