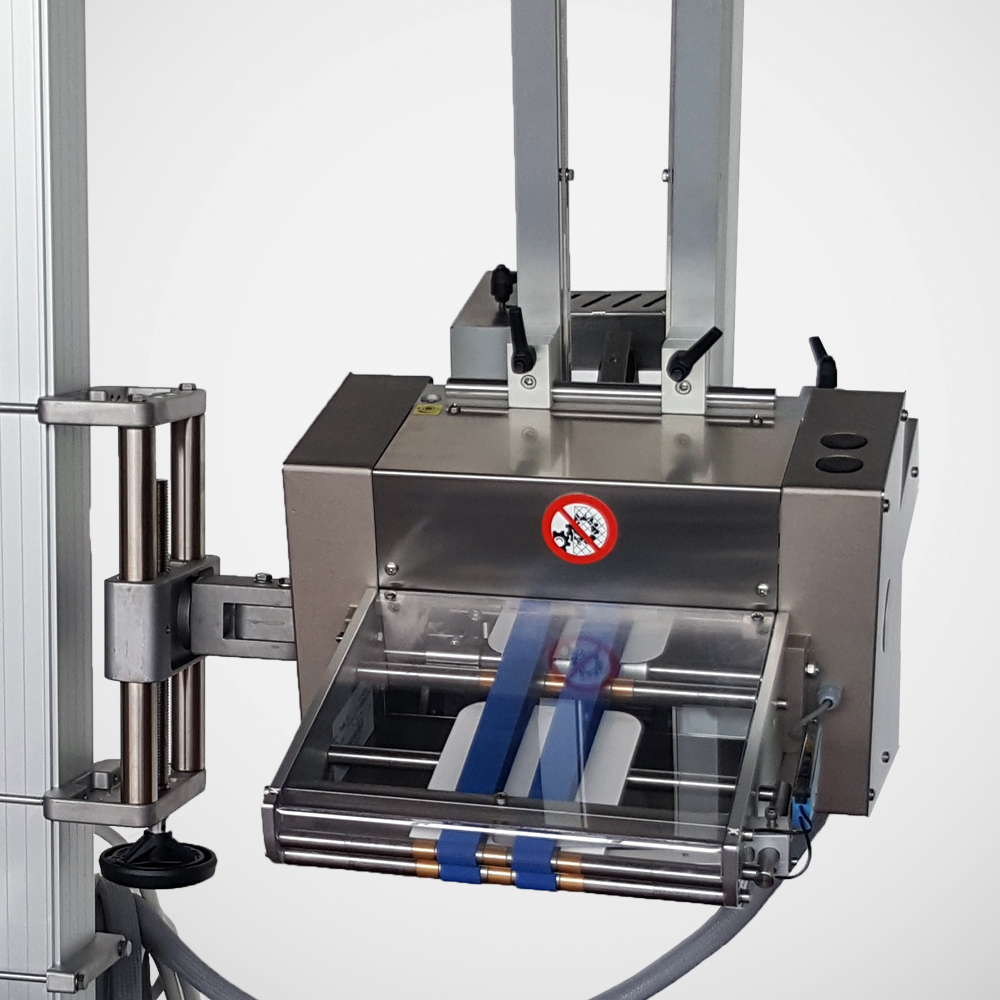

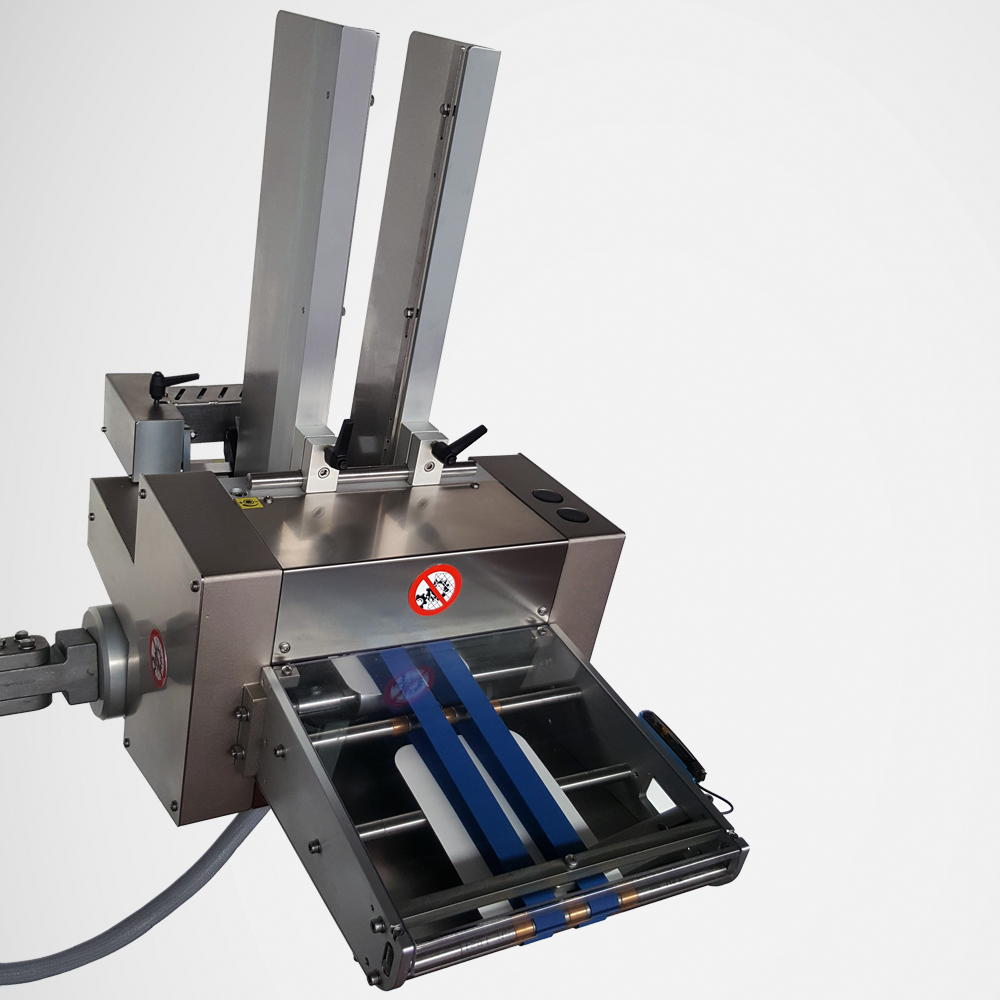

The Whizzy series represents the top choice for friction feeder as far as performance, ancillary devices available and formats (lengths and styles) and is ideal to integrate with OEM equipment and any packaging line where high-speed and precision are required.
The structure is entirely in stainless steel and this makes them ideal for applications in food and pharmaceutical packaging lines.
The Whizzy friction feeder is very versatile and can handle a wide range of products such as; coupons, vouchers, instruction sheets, pre-folded brochures, envelopes, promotional folded cards with thickness up to 3mm, with standard configuration, or up to 8mm with customised setup.
The series of Whizzy friction feeders is available in a wide variety of widths and styles: with horizontal or vertical dispensing units, widths Whizzy 110, Whizzy 210, Whizzy 350, according to the size, with brushless motor, PLC electronics for advanced management of data exchange between the feeder and the packaging line. They can feed individual products or in batches.
Single product feeding machine
Adjustable loading stack

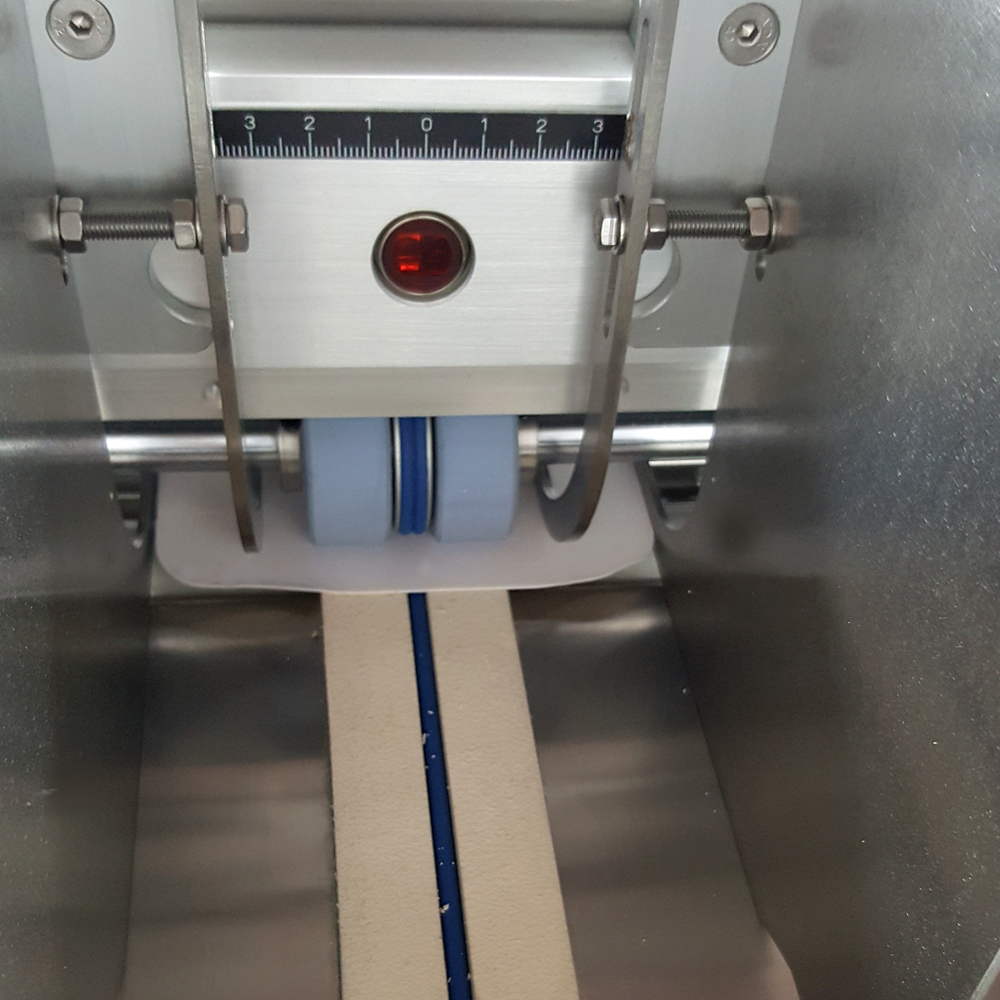

Belt skimming system

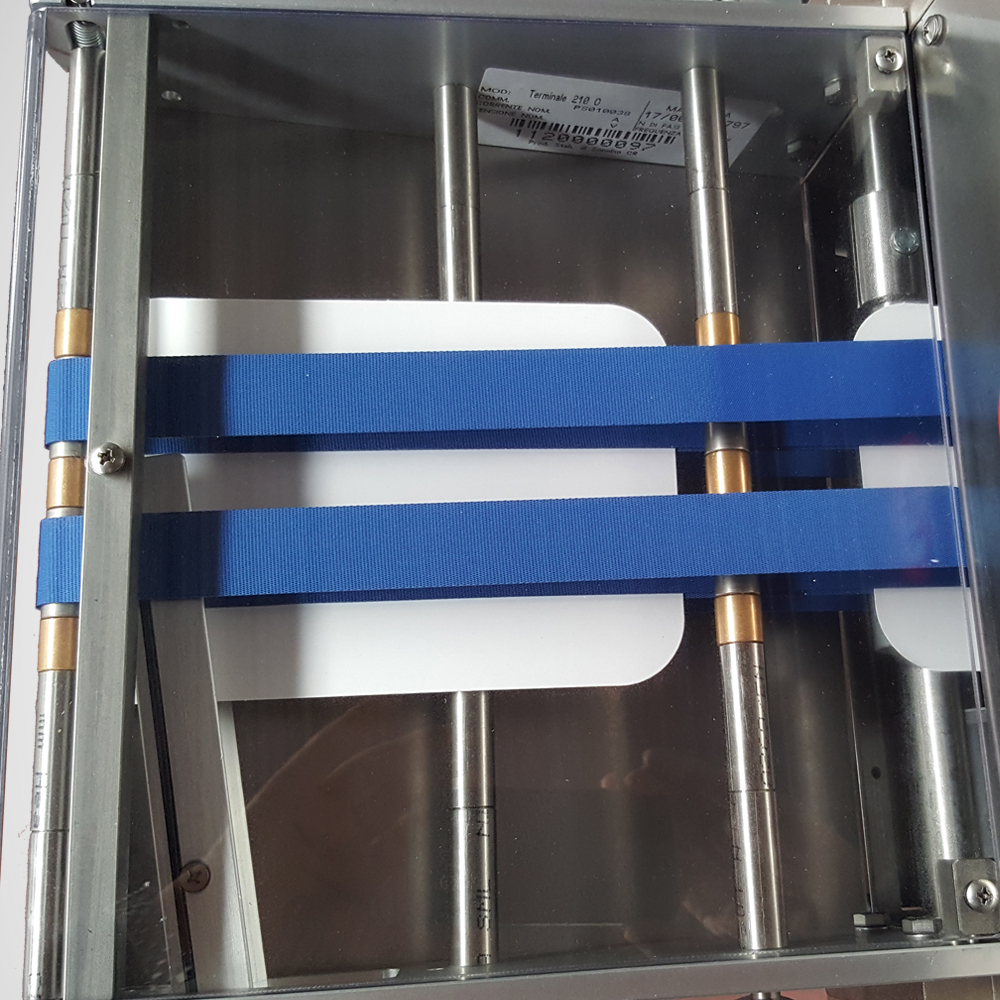

Flat belts dispensing units, horizontal (H) or vertical (V)
Stop sensor
Separate control box (remote terminal up to 3m) with integrated PLC
Separate control panel (remote up to 3m)
Control on minimum load
Start/dispensing
Controls and alarms
Brushless motor
Ancillary devices

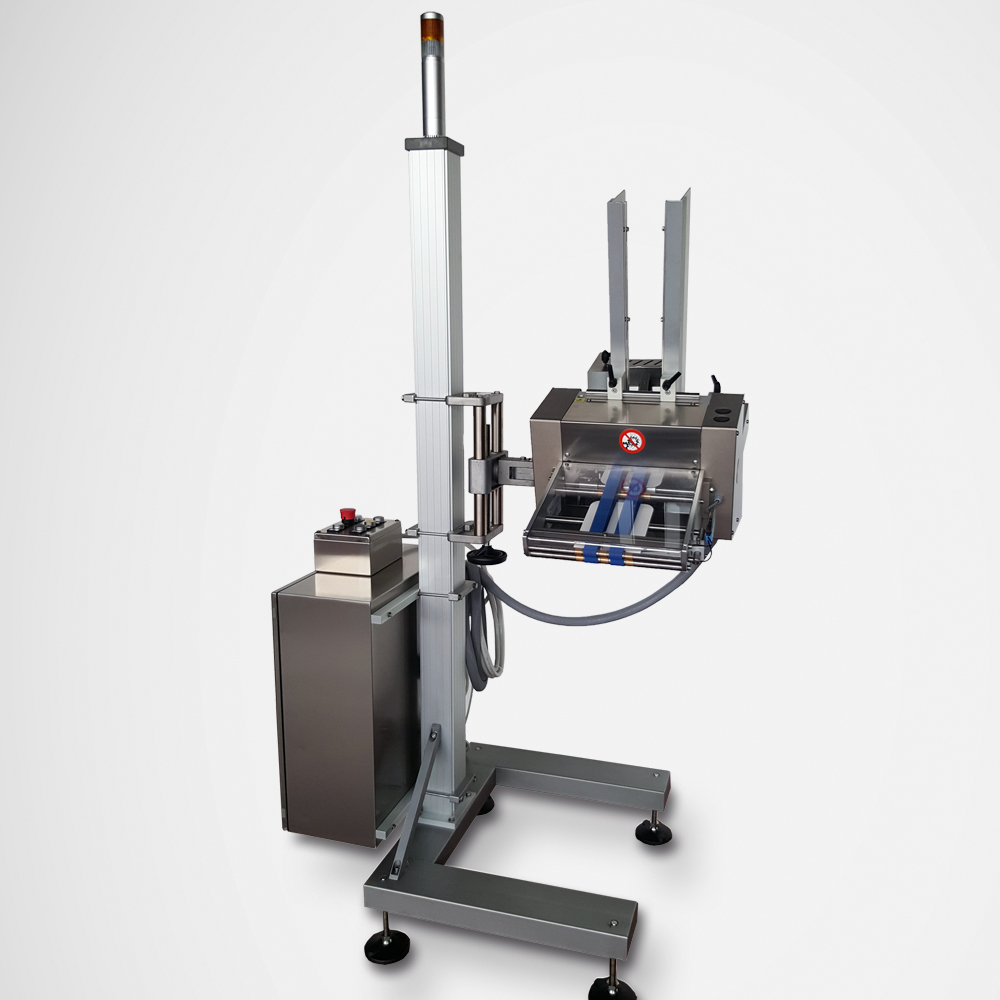

Base support structure
U-shaped support structure
Encoder
Programming keypad for speed and counting
Tray for counted products (collating function)
Control dispensed product
Loading stack for higher capacity
| Features | 110 (H) - 110 (V) | 210 (H) - 210 (V) | 350 (H) - 350 (V) |
| Dispensing speed | ≤ 200 m/min (400 pcs/min depending on the product step) |
≤ 200 m/min (400 pcs/min with product step) |
≤ 170 m/min (300 pcs/min with product step) |
| Product sizes (width x step) | Min: 50 x 55 mm Max: 110 x 180 mm |
Min: 50 x 55 mm Max: 210 x 180 mm |
Min: 50 x 50 mm Max: 350 x 180 mm |
| Product thickness | 0.2 - 3 mm | 0.2 - 3 mm | 0.2 - 3 mm |
| Product dispensing | Horizontally (110 H) Vertically (110 V) | Horizontally (210 H) Vertically (210 V) | Horizontally (350 H) Vertically (350 V) |
| Motor type | DC motor | DC motor | DC motor |
| Size L - W - H | 700x300x935mm | 700x402x760mm (210 H) 550x402x900mm (210 V) | 687x547x760mm |
| C.B. dimensions L - W - H | 400x200x600mm (110 H) 533x297x894mm (110 V) |
400x200x600mm | 400x200x600mm |
| Power supply | 230V, 50-60 Hz | 230V, 50-60 Hz | 230V, 50-60 Hz |
| Electrical input | 920W | 920W | 920W |
