Each of our labelling machines is in a class of their own. They have a very high standard of construction not seen at this price level and features that will protect your investment over time. With such a compact footprint, they can be integrated easily on your production line and utilised for multiple application methods. User-friendly, quick and easy to setup, these are high-quality applicators that will suit most budgets and needs.

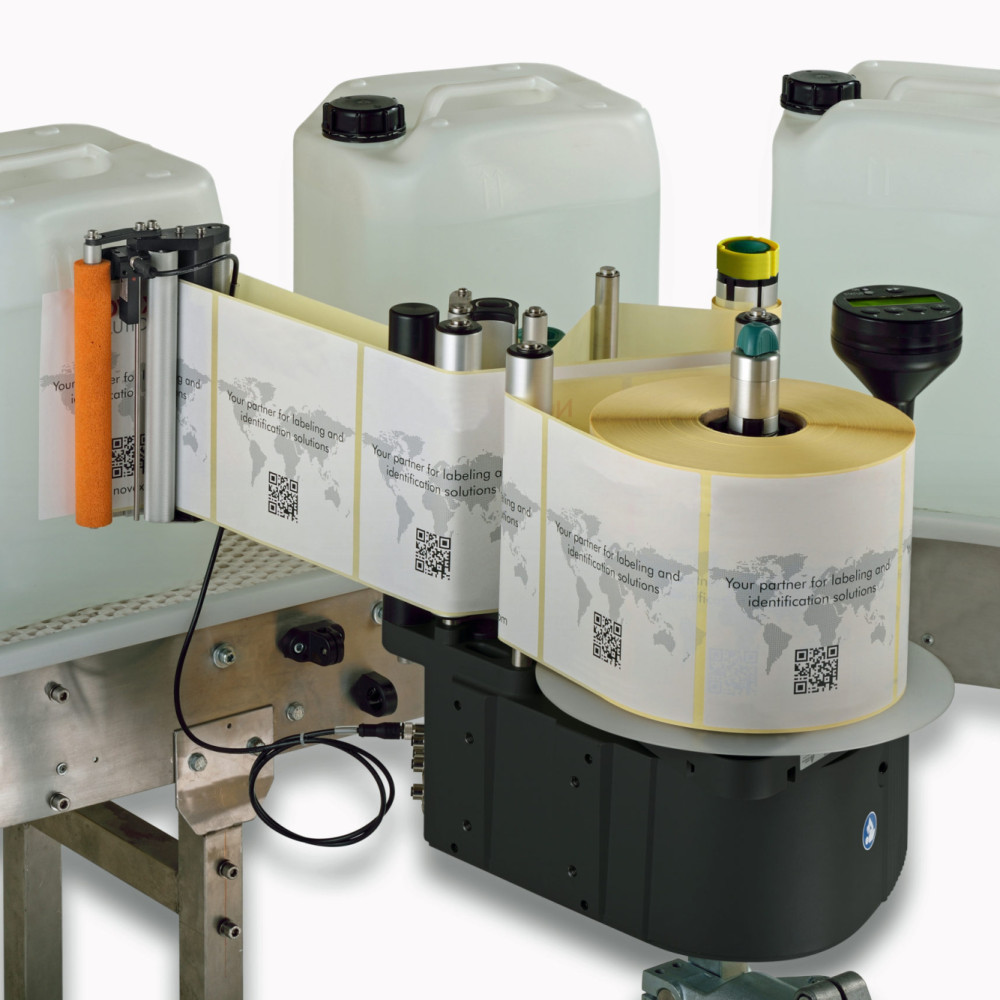

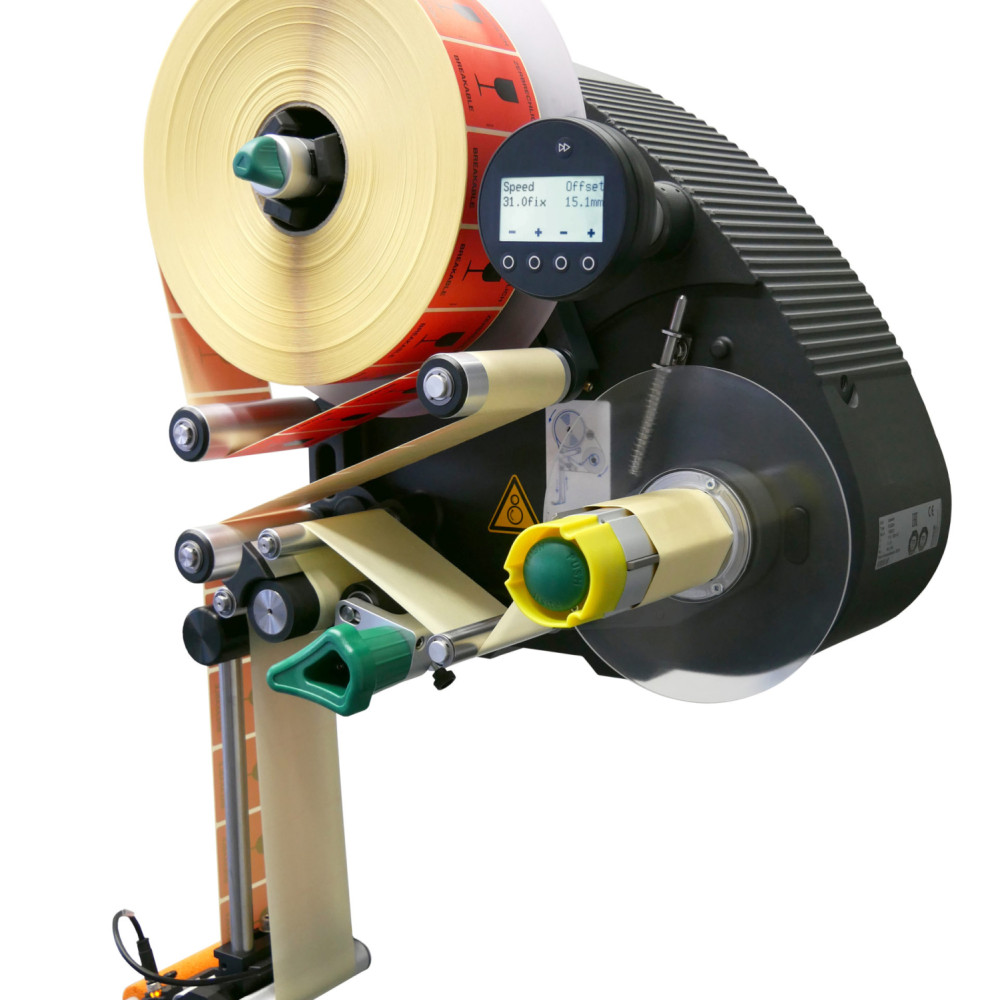

The XLS 204 is a fantastic all-round label applicator unit with an application speed of up to 40m/min and three mounting positions for easy integration on line. The XLS 200 range comprises of even higher-performance models if you need faster speeds, wider labels and continuous, multi-shift, operation.

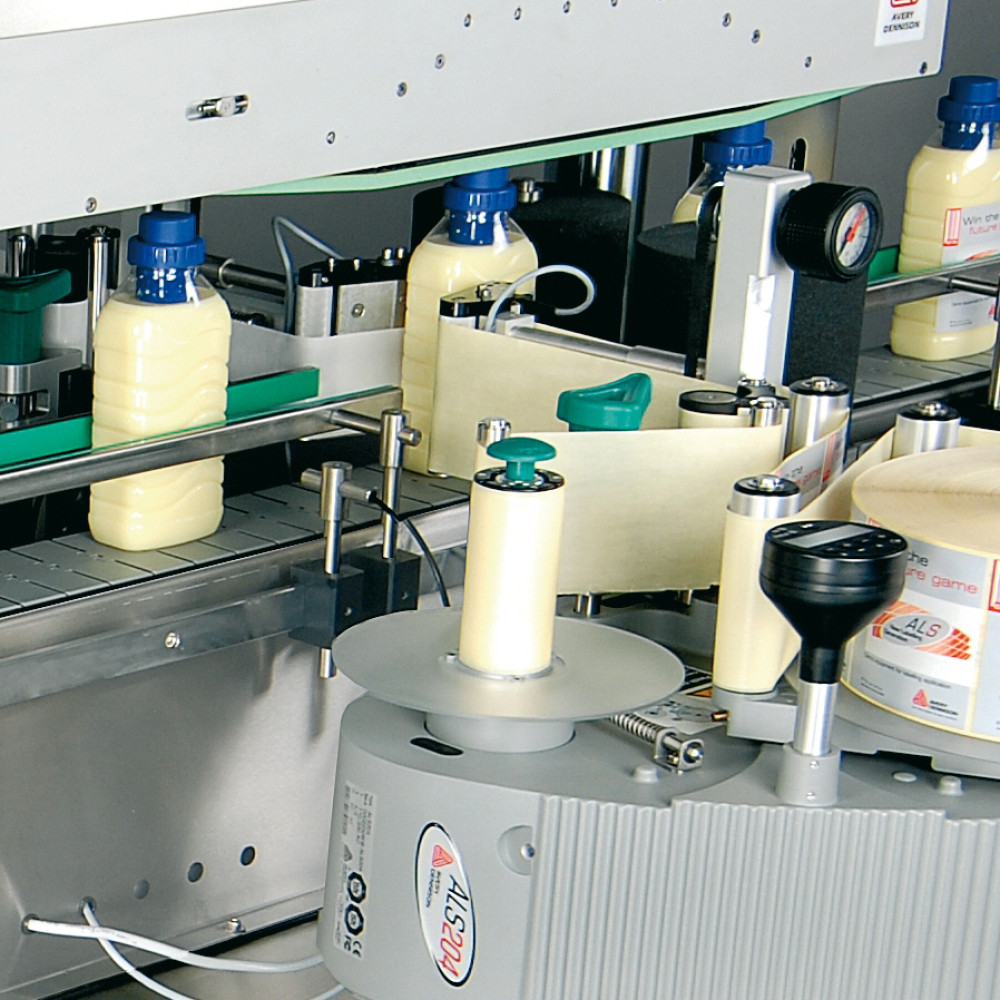

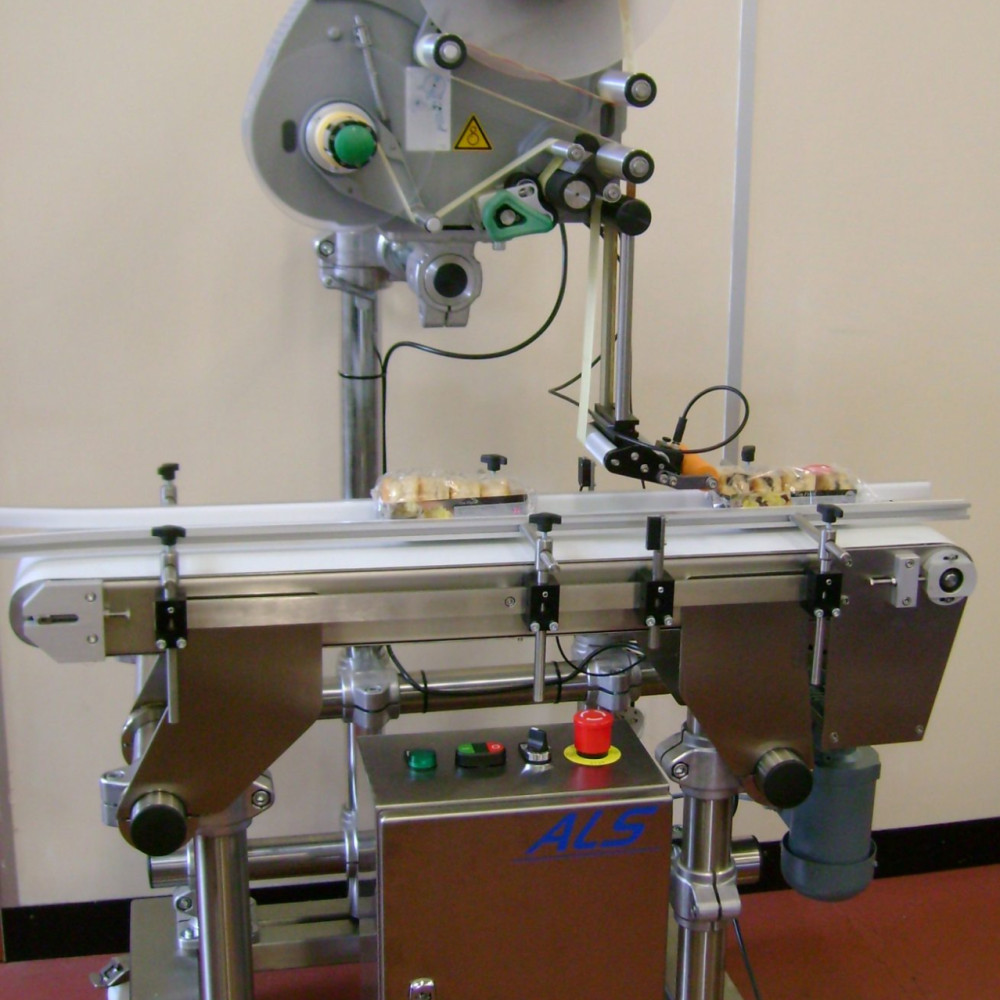

The Compact Range of labellers are easy to install and integrate with your line and we help you every step of the way.
RANGE OF STANDARD APPLICATORS
• Direct Apply (Wipe-on); V-Shape, L-Shape, Sprung or Pneumatic
• LA-BO (Blow-On)
• LA-TO (Touch-On)
• LA-SO (Swing-On 90
For more information on applicator modules click here: Applicator Modules
Reliable, accurate and compact
High-Performance:
Low cost, compact size and high build quality
With a cast-aluminium housing, the XLS Compact Class are an industrial-capable range at an extremely affordable price. They are fast and durable, even with the most demanding requirements in round-the-clock operations.
User friendly
The 360° rotatable multifunctional display with intuitive menu structure is integrated. The machine can be optionally operated remotely by a cable connection to an additional remote control display.

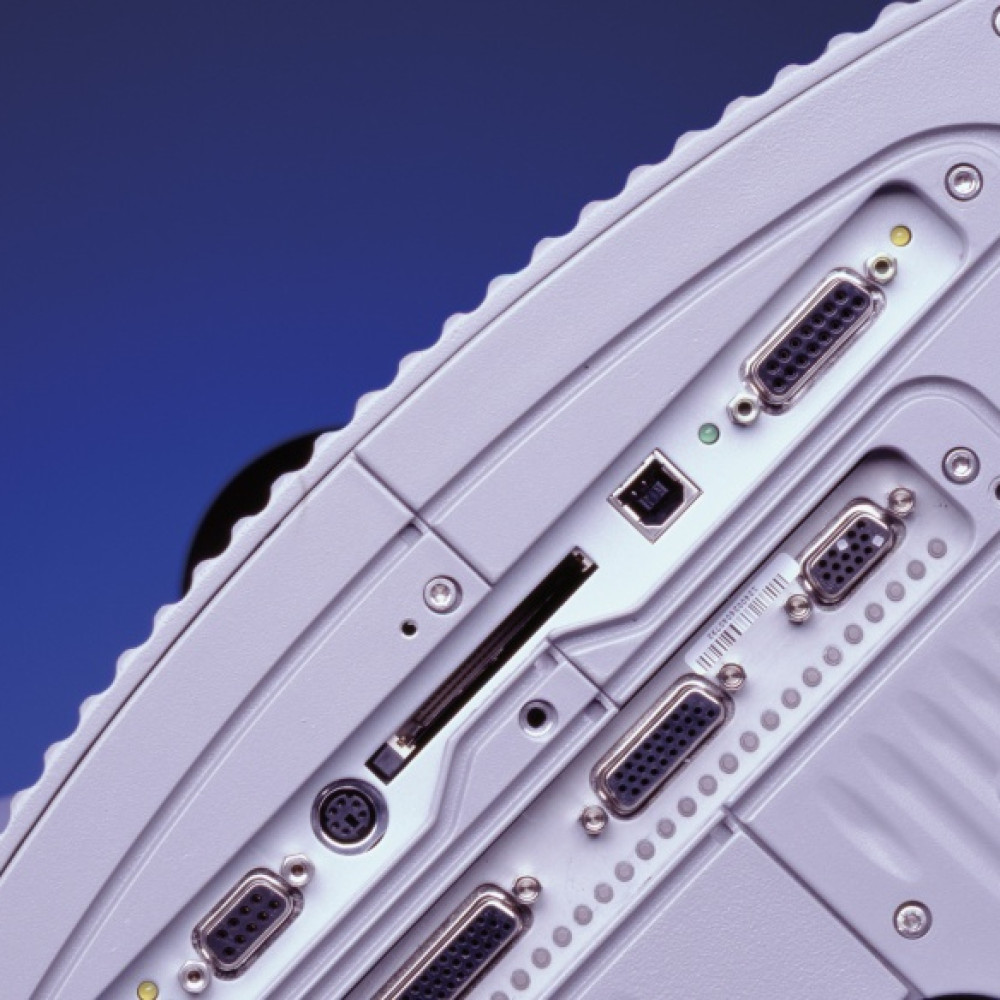

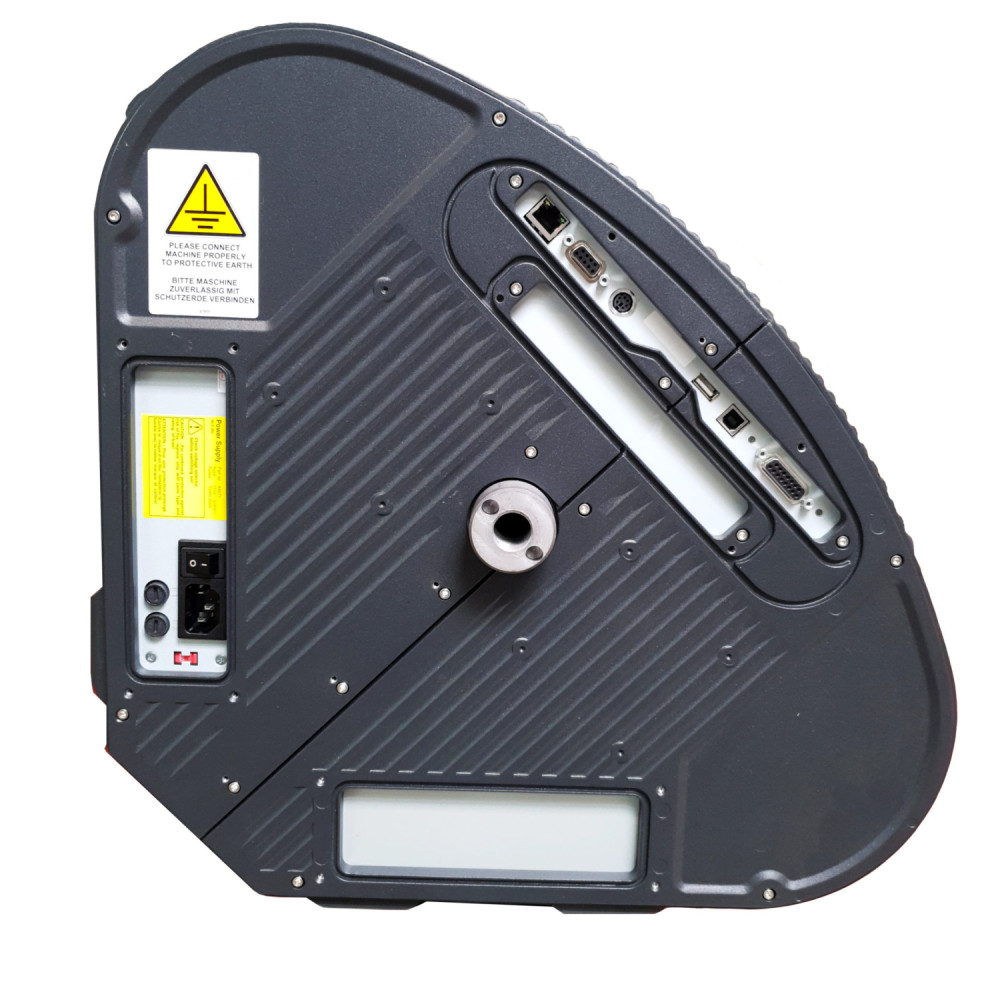

Integration
Easily integrated into various control systems thanks to the easy to access interfaces; SPS interface, CF card, USB and Ethernet connection.
Multiple Application Methods

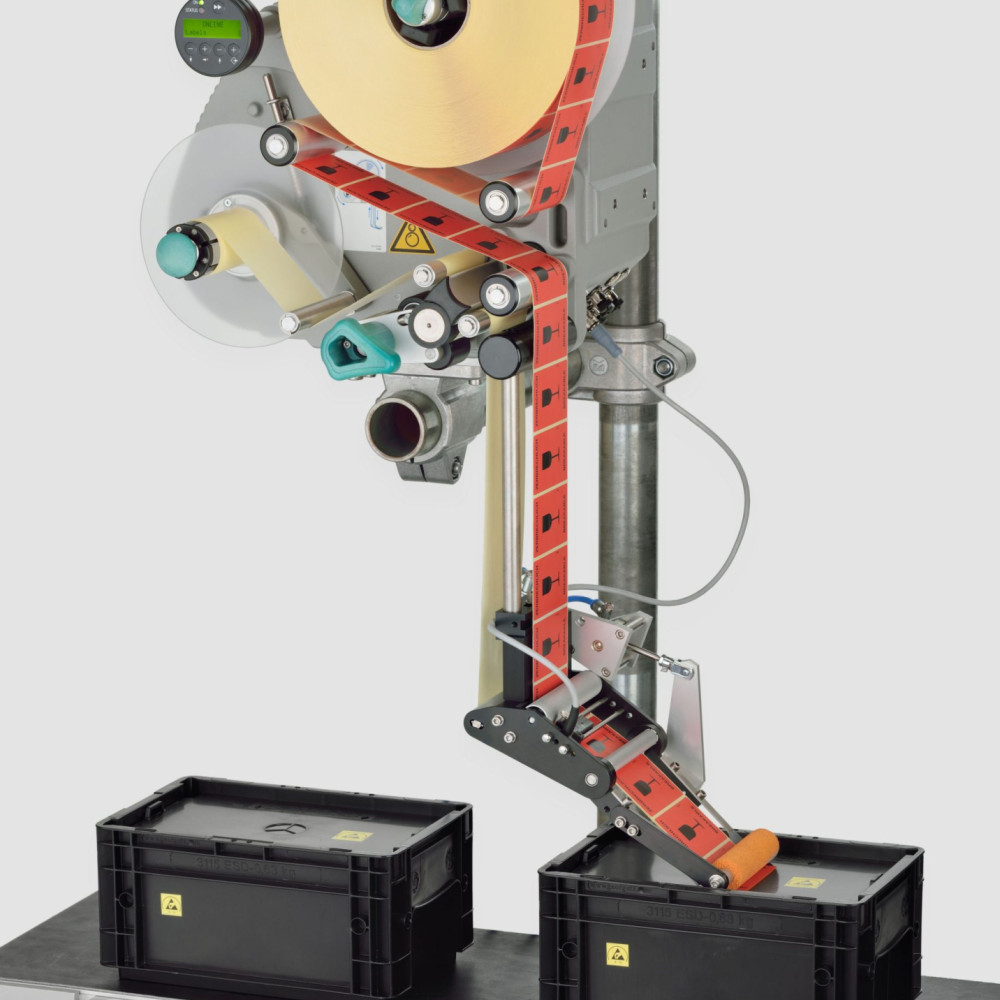

Various application devices are available to suit your specific product labelling requirements, depending on speed, position and orientation. Options include: direct apply/wipe-on, blow-on, tamp-on, tamp-blow and a 90° swing-on tamp.
High Standard of Industrial Protection
Additionally available IP65 kits provide even more protection and guarantee easy cleaning, which is of particular importance in the food industry. The XLS family can therefore also be used in humid or dusty environments.
XLS Colour Display
The XLS 200 series benefit from a larger display that can show more information, along with a backlit colour, to indicate various states: Blue – Online & Running OK Amber – Warnings (low labels) Red – Errors or Stopped.

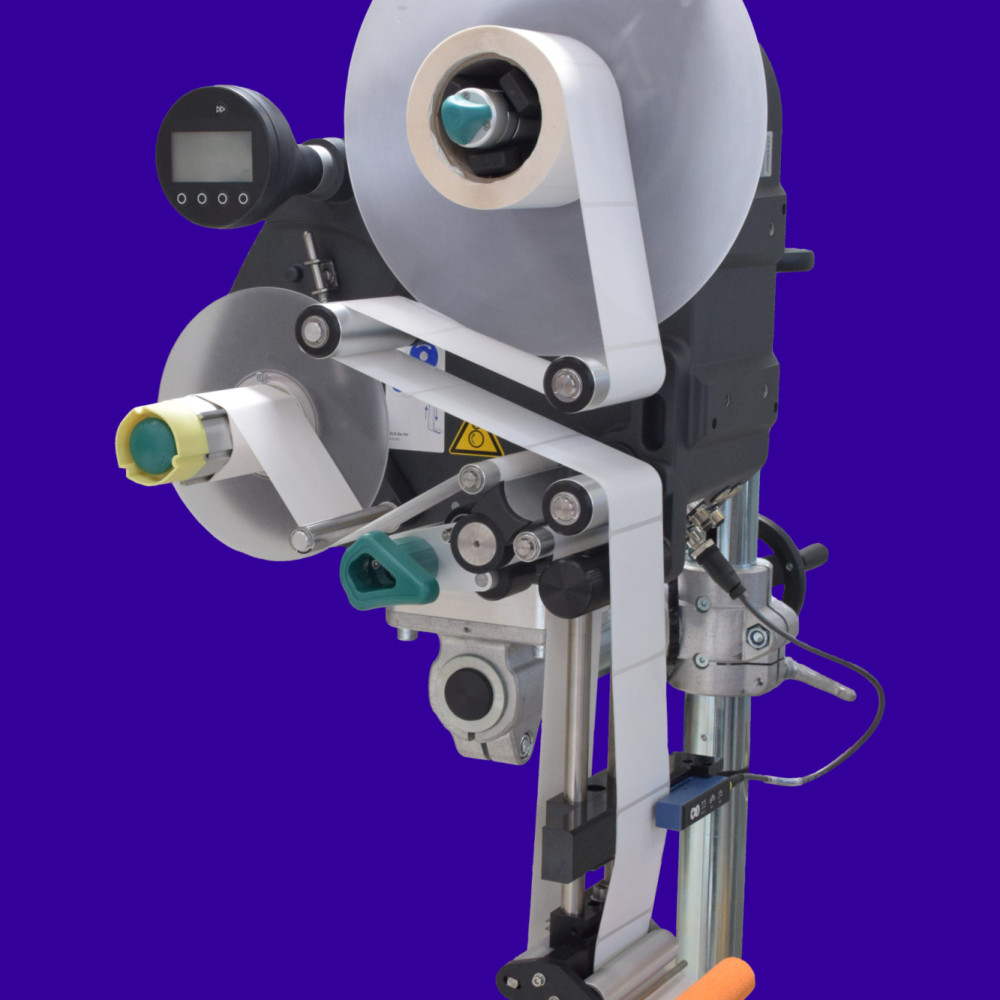

Flexible in Use

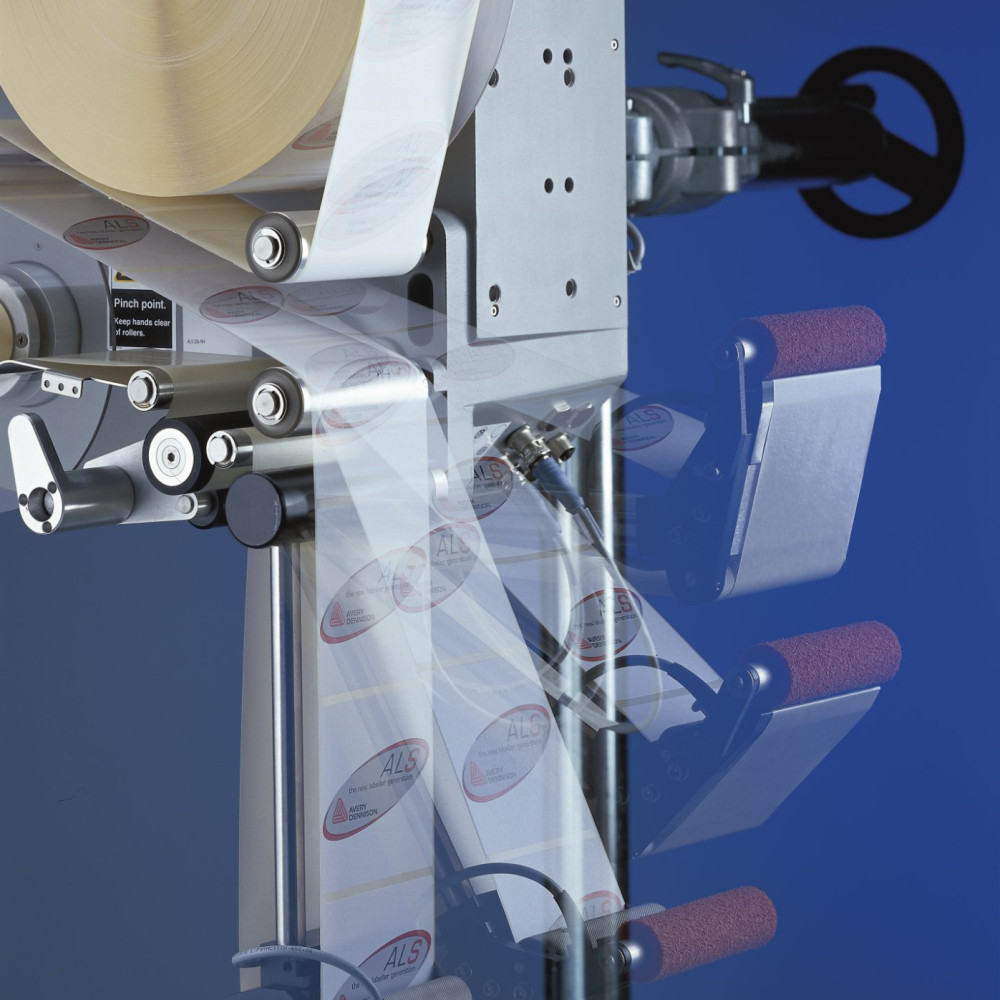

The XLS 200 Series enable top, side & underneath labelling with three different mounting options. The “L”- shaped dispensing edge, which can be rotated by up to 90° and locked in position, ensures even more flexibility.
Easy handling

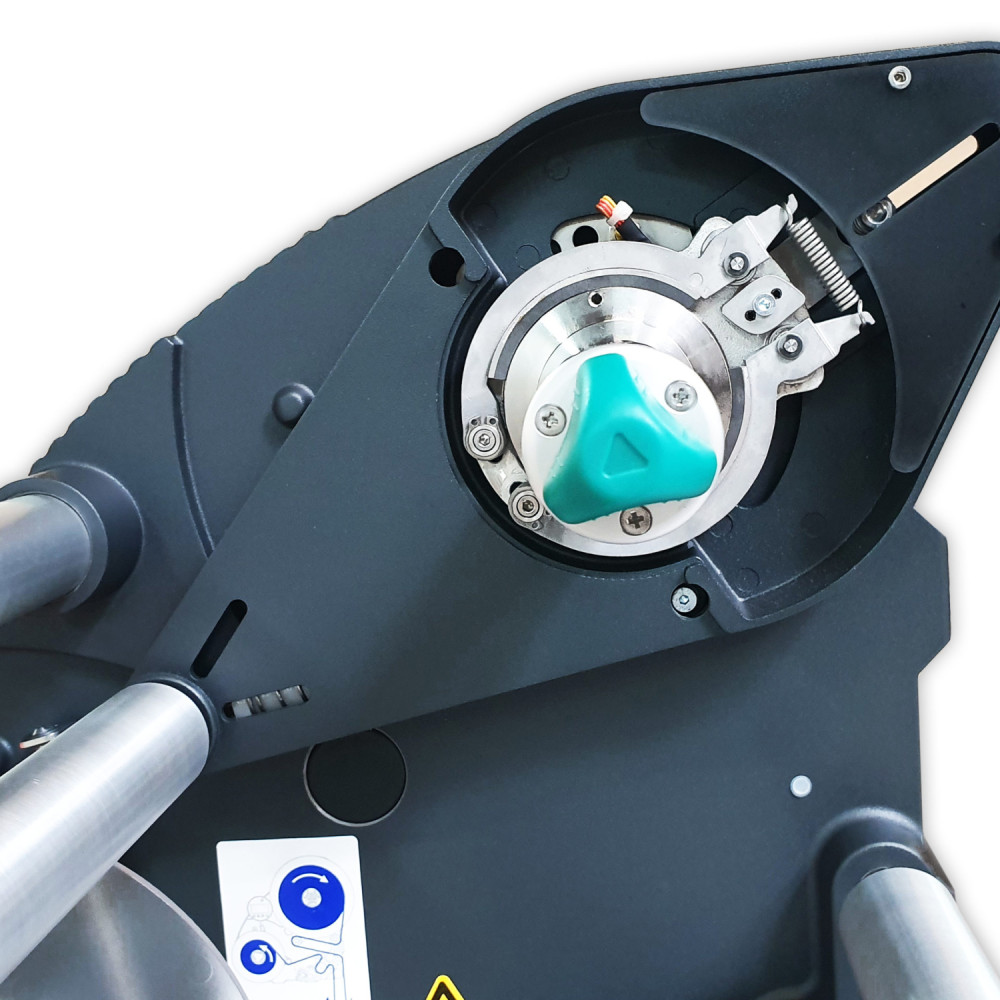

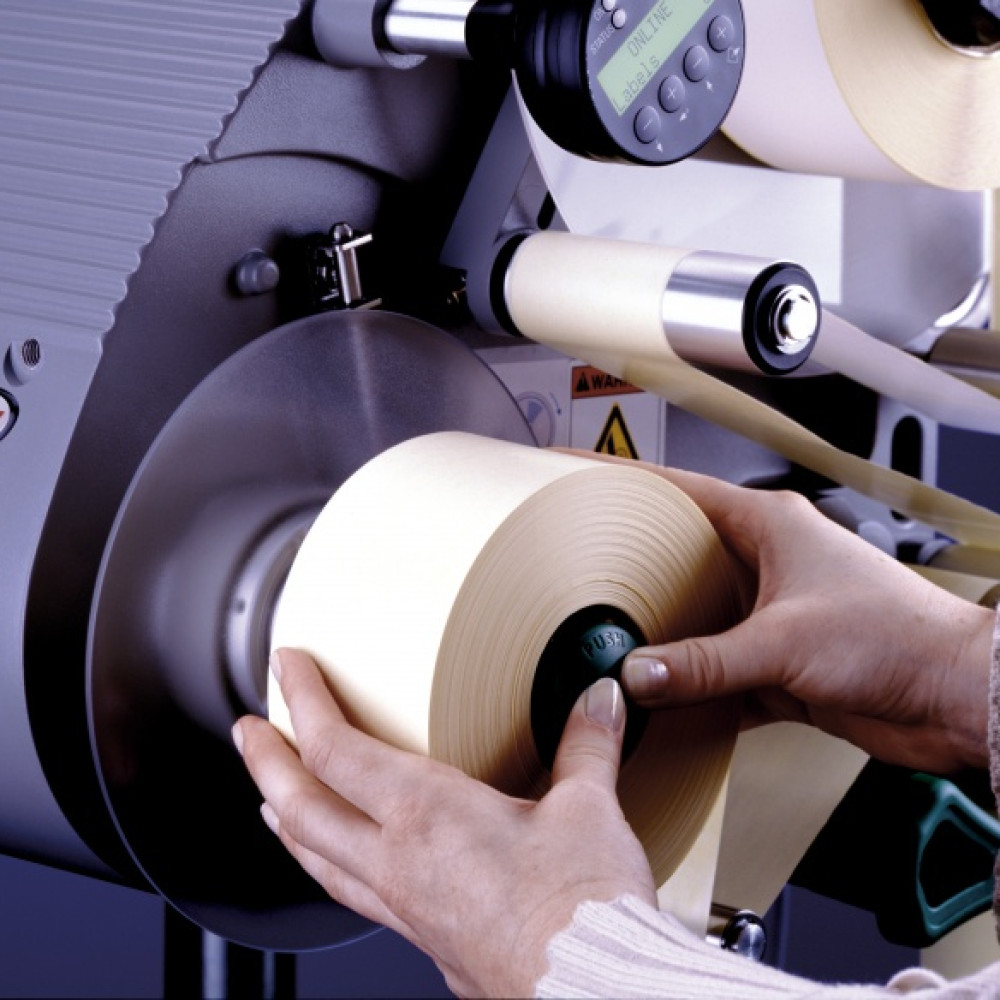

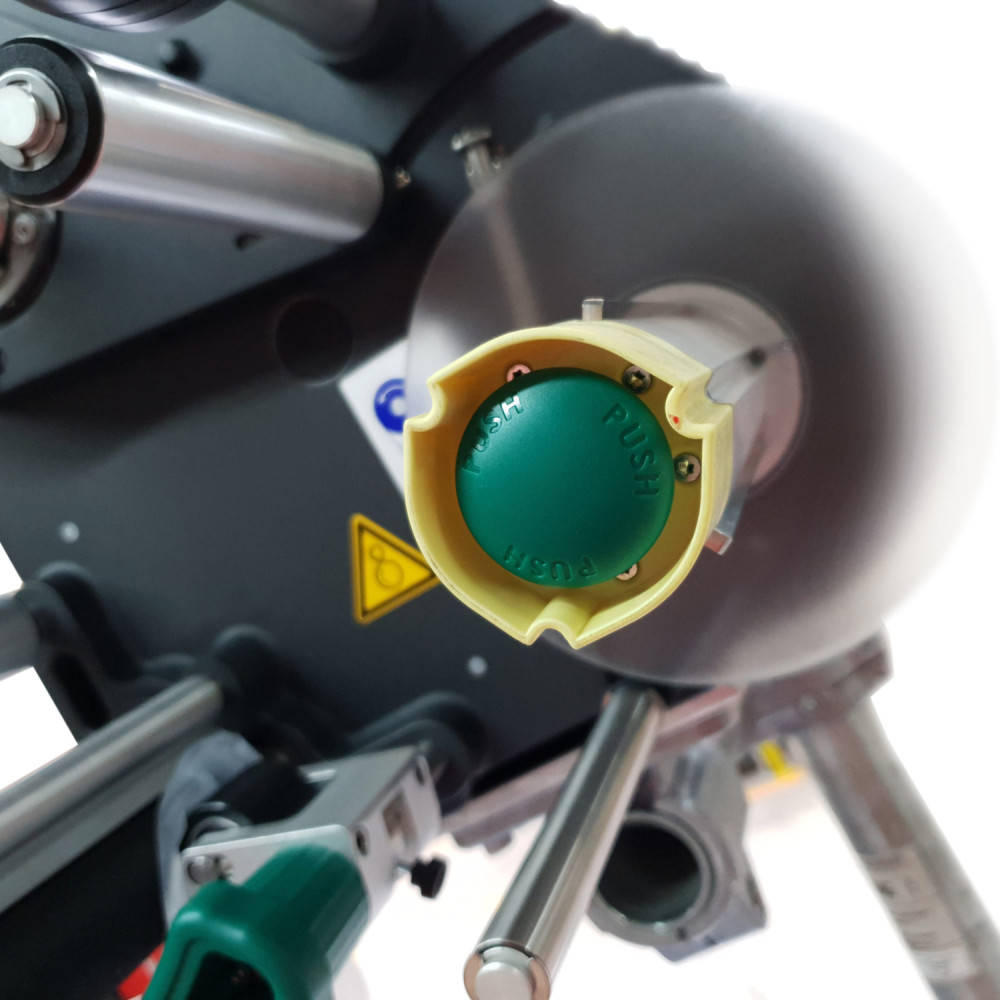

The backing paper can be removed without difficulty with the “easy-push” mechanism and you can also insert new material just as easily. The material roll can be fixed with ease and is freely accessible at all times.

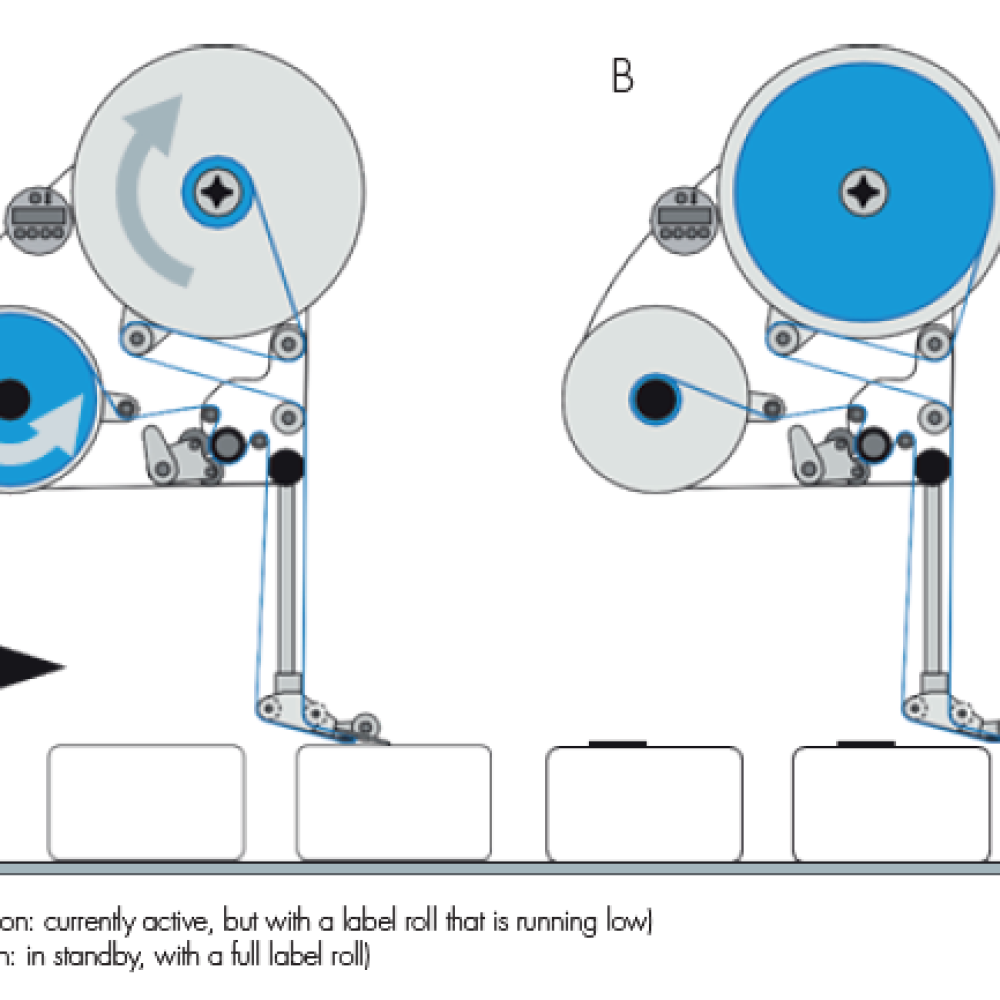

Tandem Mode
Connect two XLS labellers together in line and they will work together to provide non-stop labelling. When one runs out of labels, the other takes over, while the operator changes the roll, to give continuous running, zero downtime.
| Label width (including backing) |
10-110 mm for XLS 204 |
| Dispensing speed (up to) |
40 m/min for XLS 204 |
| Label material |
Self-adhesive/Pressure-Sensitive (PS) labels or EAS/RFID tags and inlays with backing liner, both inside and outside winding is acceptable |
| Label roll diameter (maximum) |
300mm |
| Label roll inside core diameter |
38mm, 76mm or 100mm |
| Label length |
5-600mm for XLS 204, XLS 206, XLS 256, XLS 272 |
| Label dispensing accuracy |
+/- 0.5mm for all models |
| Dimensions XLS 204 and XLS 272 |
492mm x 488mm x 371mm |
| Dimensions XLS 206 and XLS 256 |
492mm x 488mm x 402mm |
| Dimensions XLS 209 |
492mm x 488mm x 505mm |
