Standard Solutions
Standard Solutions

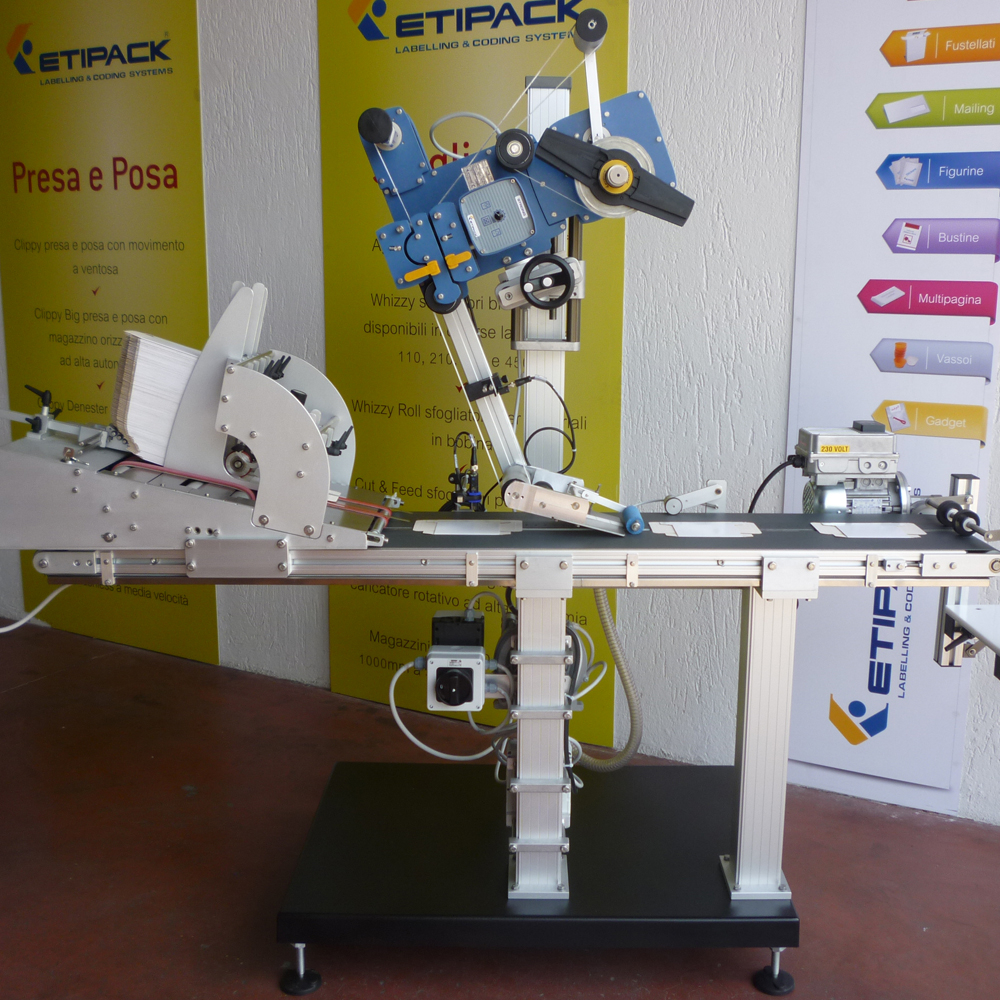

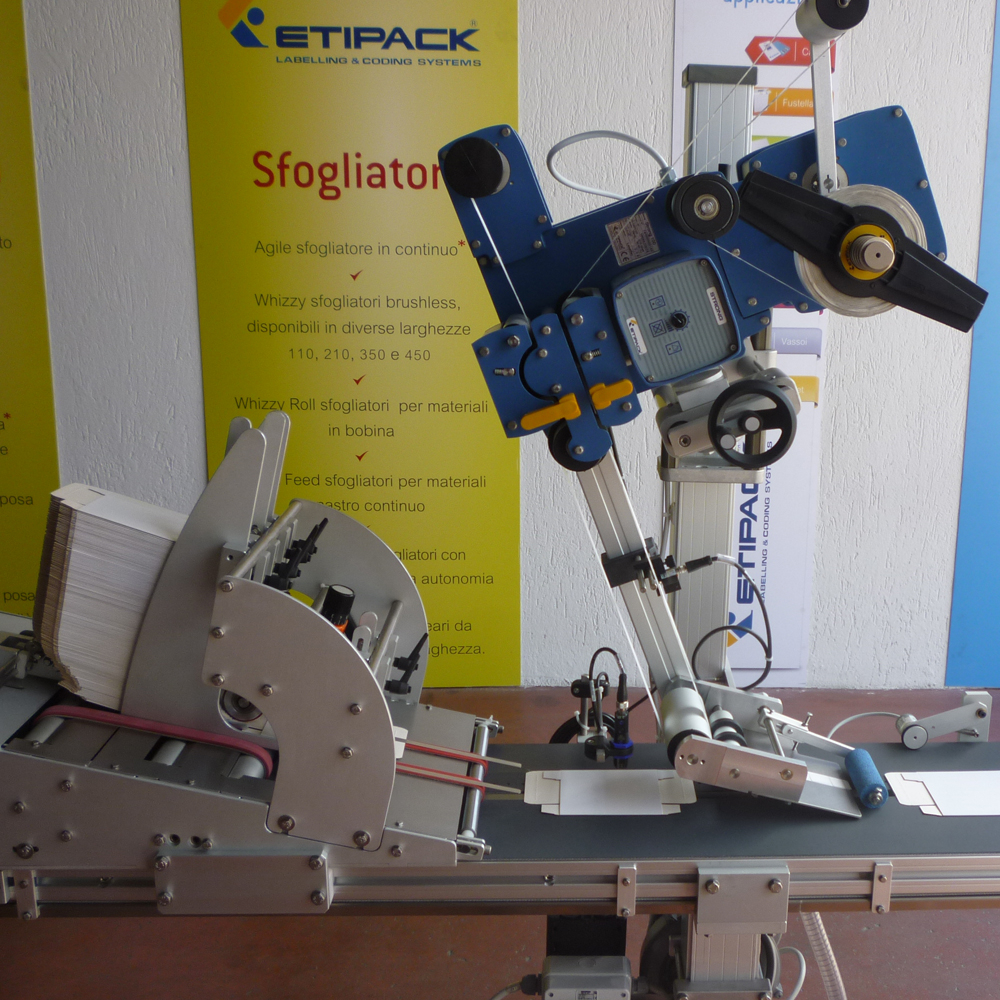

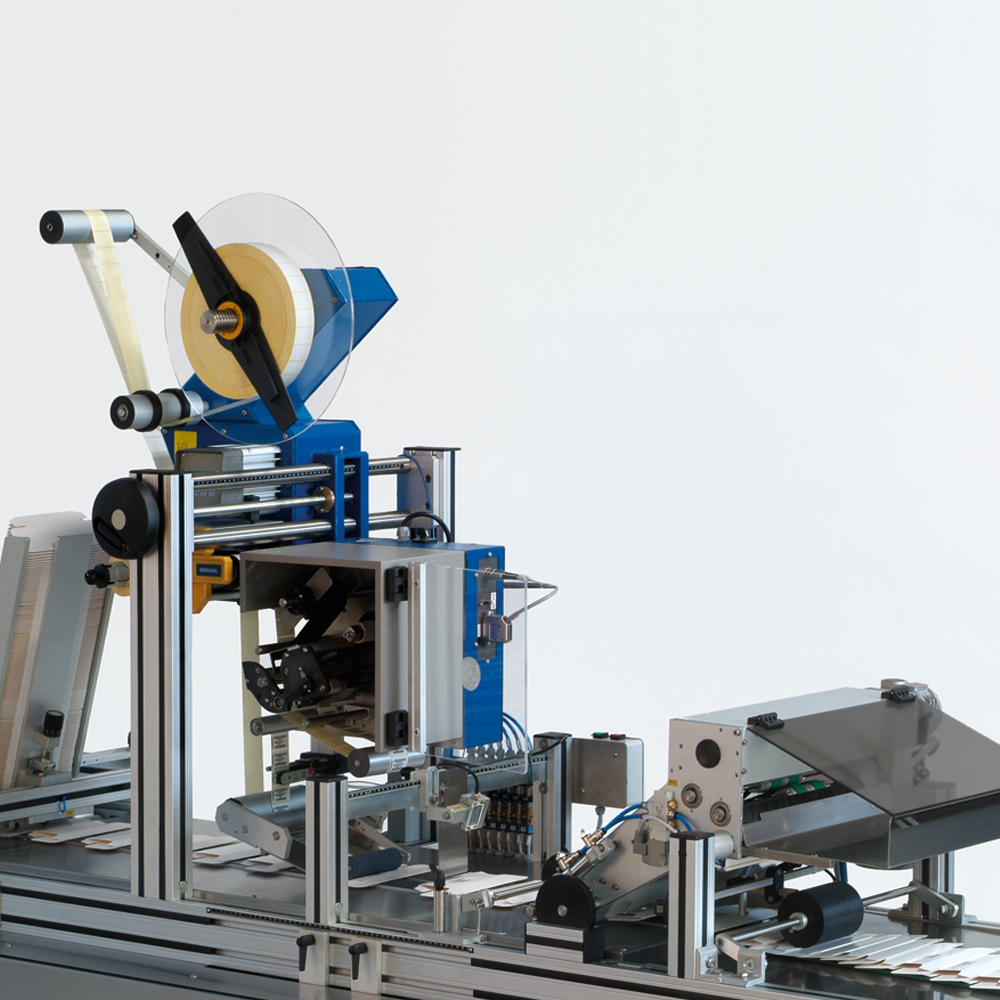

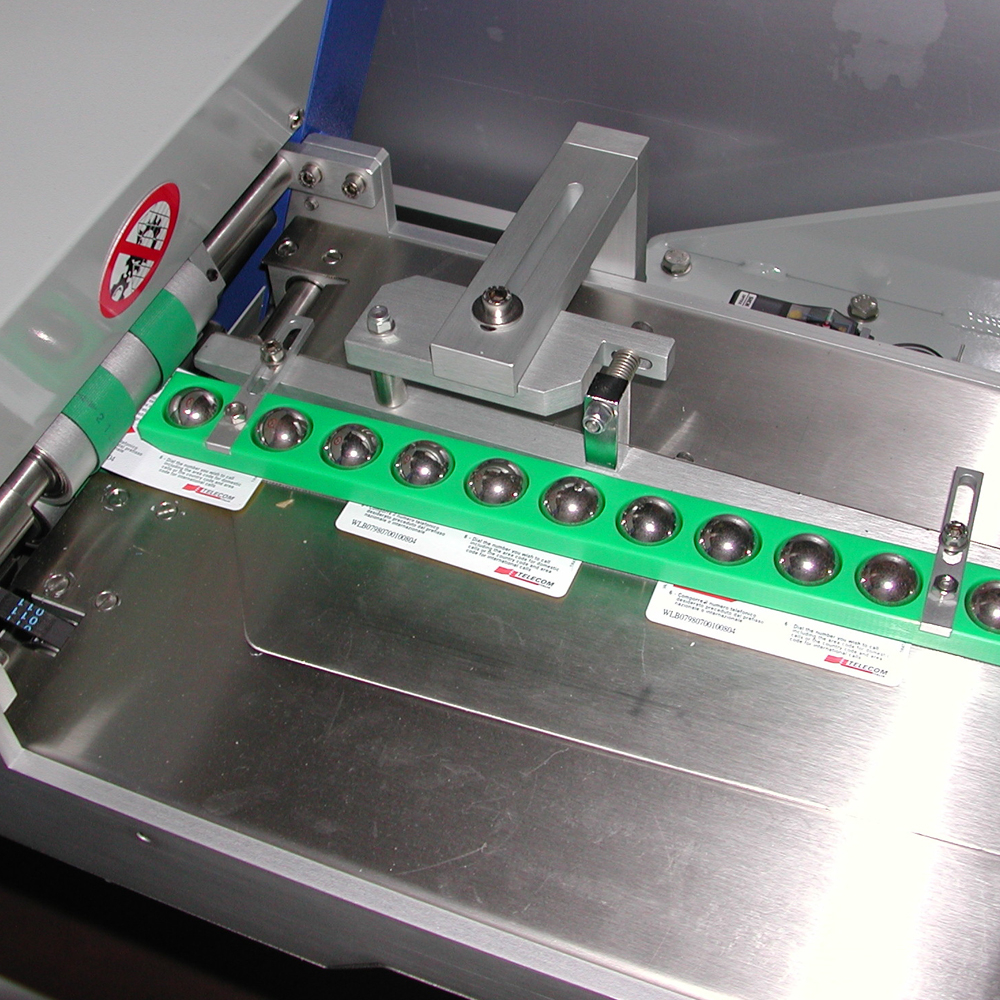

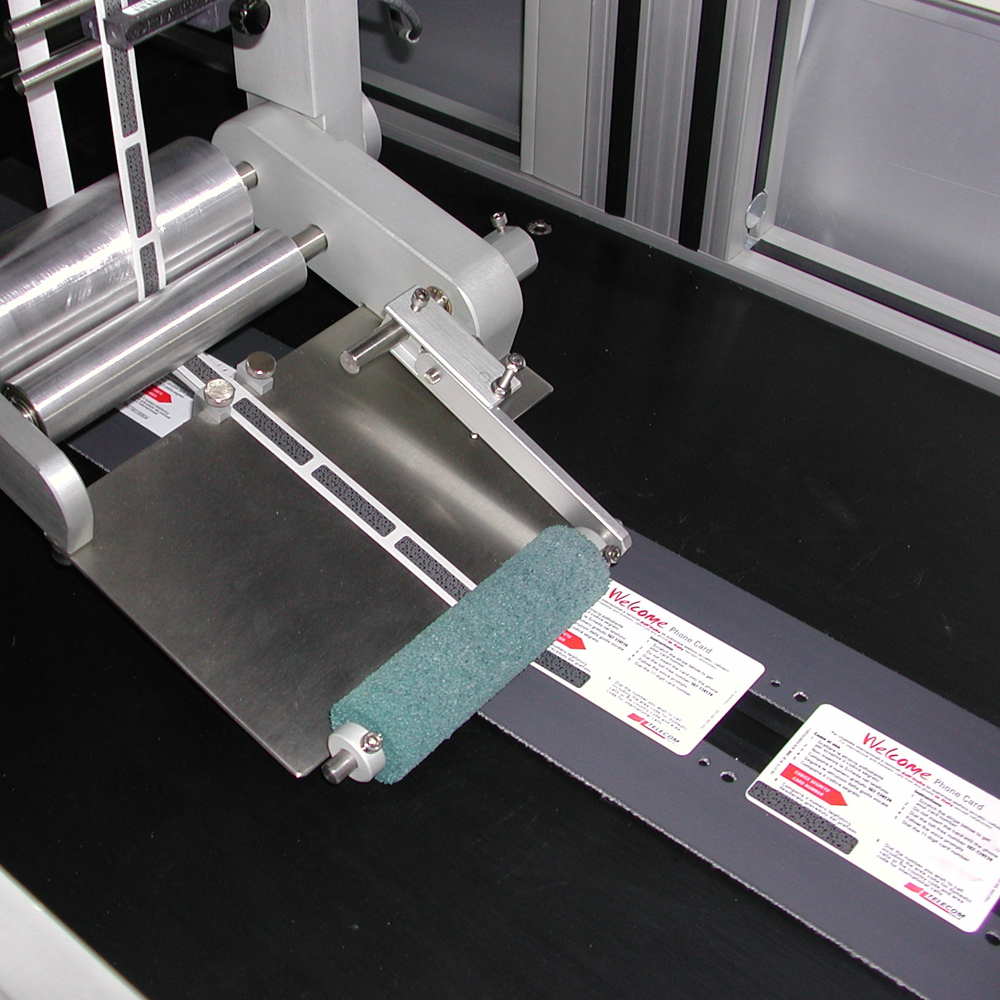

The Etipack System 9 Series, are specifically for the application onto flat and thin products and feature a special vacuum conveyor which retains products as they are labelled with precision.
Labelling systems are fully automatic labelling machines with an integrated conveyor system; they are self-sufficient small labelling lines providing for conveying, handling and labelling.
They can therefore be used both offline or connected to other packaging machines.
The modular design allows fitting, on a main machine body a variety of friction feeders, labelling machines of different width and speed, as well as a wide range of ancillary devices that complete the main function.
The system is compatible with different types of print units – hot stamp, thermal transfer, inkjet- from manufacturers such as; ICE/Clearmark, Videojet, Markem, Datamax-Honeywell, EIDOS, Sato, HSA, Wolke, to print any codes, variable data and images
For top labelling of pharmaceutical boxes please visit our section for pharmaceutical labelling machines, e.g. Pharma Seal Top, System 9 Pharma
| Features | System 9 | System 9 Light | |
| Production speed | ≤ 24,000 pcs/h (with box step of 80 mm) | ≤ 9,000 pcs/h (with box step of 80 mm) | |
| Product size | From 100 x 60 mm to 350 x 260 mm | From 100 x 100 mm to 290 x 290 mm | |
| Product thickness | 0.5 - 5 mm | 0.1 - 25 mm | |
| Label dimensions W | 8 - 98 mm | 8 - 98 mm | |
| Label dimensions L | 8 - 250 mm | 8 - 250 mm | |
| Outside reel Ø | ≤ 280 mm | ≤ 280 mm | |
| Inside reel Ø | 40 - 75 mm | 40 - 75 mm | |
| Size L - W - H | 2,942 x 850 x 2,000 mm | 2,345 x 705 x 1,788 mm | |
| Power supply | 400V, 3P+N+PE 50/60Hz | 400V, 3P+N+PE 50/60Hz | |
| Electrical input | 2,000W | 920W | |
| Compressed air | 6 bar (with print unit) | 6 bar |
