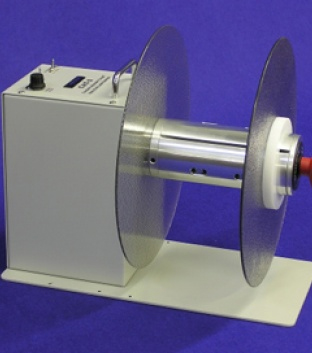

Label Rewinder – ALS TWIN-CAT 2

Reliable, rugged, maintenance-free and heavy-gauge steel construction allows your ALS abel rewinder to be simply set in place. Special anti-slip feet keep the unit from moving. Put ALS label rewinder machines to work for you today and enjoy a new dimension in convenience and reliability.

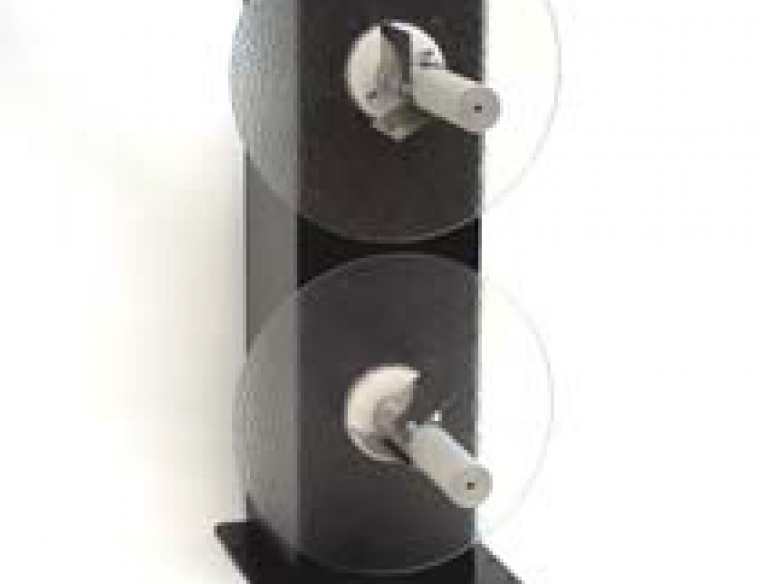

TWIN-CAT-2: a Heavy Duty Label Rewinder Machine

With two powerful motors and a choice of core holders it provides maximum versatility in setting up the operation you need. Both spindles can rewind or unwind. You control the direction and torque on each spindle independently. An external Halt control allows the unit to be stopped and started with a foot switch or other external device if desired.

Here are some of the many possible applications:

  • Unwind and Rewind labels on one machine. Ideal for “wind-in / wind-out” operations.
  • Reverse the order of serialised labels on a roll.

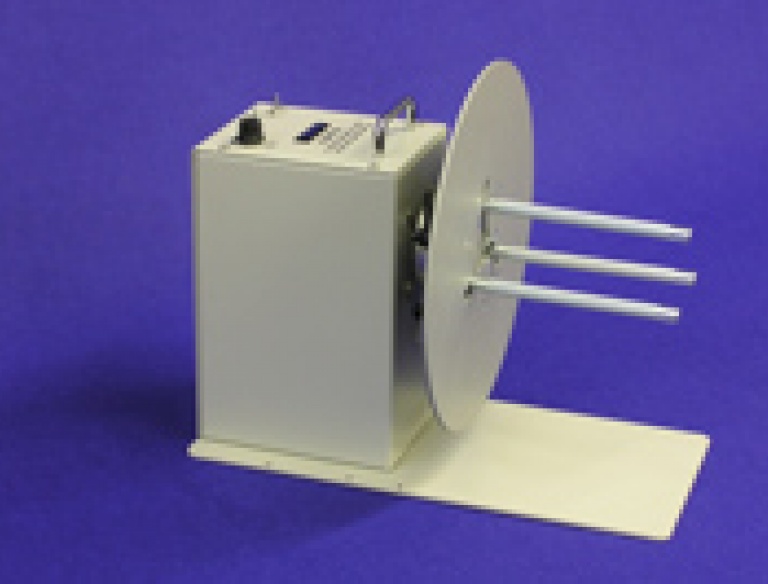

  • Conveniently rewind labels onto a different core size. With universal Adjustable Core Holders (“ACH”) you can unwind from any diameter core and rewind onto any diameter core within the range of 25 to 101 mm (1” to 4”) in diameter!
  • Add the Label Inspection option to create a stand-alone Inspection Station. You can also add a Label Counter if you need one.
  • Wind small rolls of labels from larger ones.

Our label rewinders are available in many different configurations to fit perfectly into your label production.

All TWIN-CAT-2 Models operate at up to 76 cm per second.

Technical specifications

Core Diameter

76mm (standard)
various options available

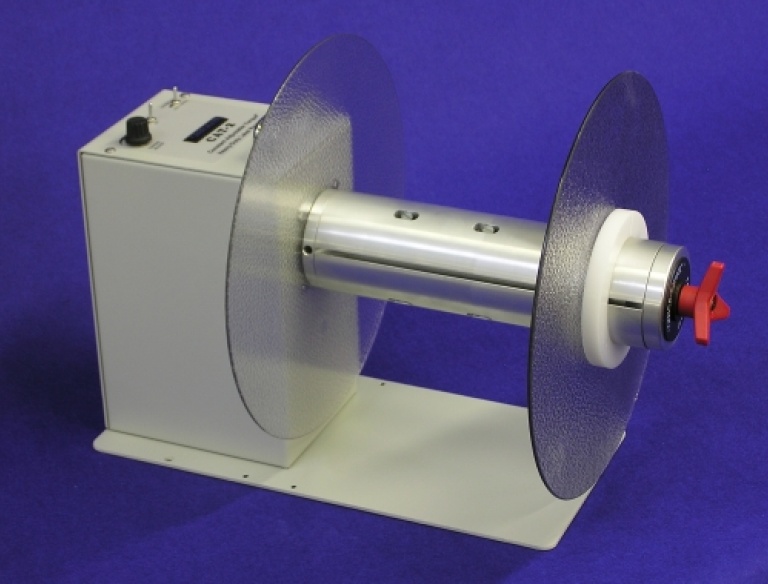

Choice of widths

155mm, 170mm, 220mm, 255mm, 270mm

Roll sizes

Up to 220mm in diameter

Speed

Up to 76cm per second
